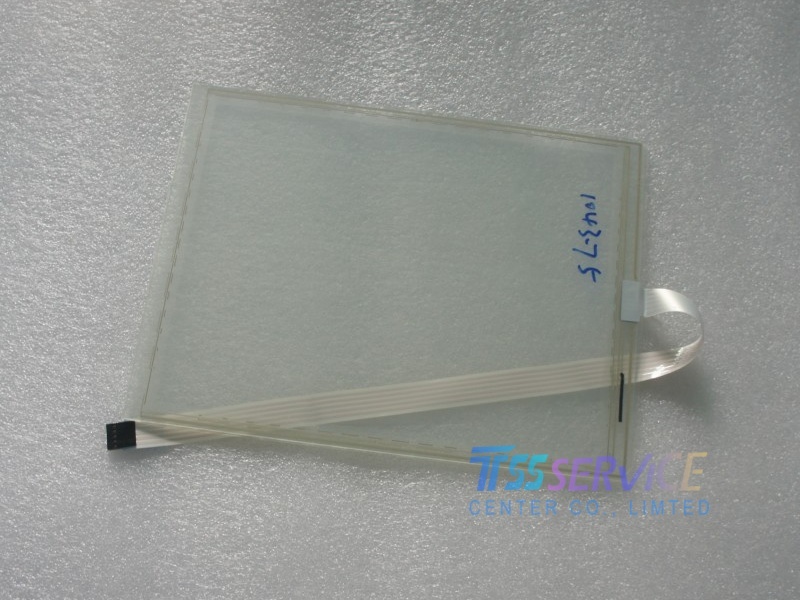

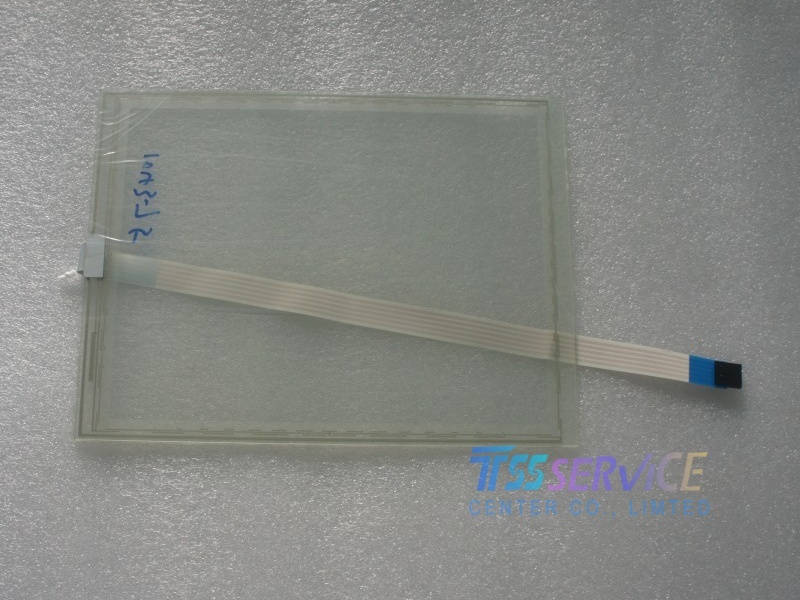

New Touch Screen 4PP420.1043-K02
Category Specification
General Information
Model Number 4PP420.1043-K02
Series B&R Power Panel 400 (PP420)
Product Type Industrial HMI (Human-Machine Interface) / Panel PC
Display
Display Size 10.4" (diagonal)
Display Type Color TFT
Resolution 800 x 600 pixels (SVGA)
Touch Screen Analog Resistive (pressure-sensitive)
Backlight CCFL (Cold Cathode Fluorescent Lamp) or LED (depends on revision; typically CCFL for -K02)
Processor & Memory
CPU 32-bit, 200 MHz (Intel compatible)
SDRAM 64 MB
SRAM 512 KB (battery-backed)
CompactFlash External slot (Type I) for storage expansion
Communication Interfaces
Ethernet 1x 10/100Base-T (RJ45 connector)
Serial Ports 1x RS232
USB Ports 1x USB (Type A)
CAN Bus 1x CAN interface (Interface 1)
Electrical
Power Supply 24 VDC
Power Consumption Approx. 15-20 W (typical)
Battery CR2032 (for RTC and SRAM backup)
Environmental
Operating Temperature -10°C to +55°C (14°F to 131°F)
Protection Rating IP65 (front panel) / IP20 (rear housing)
Physical
Dimensions (W x H x D) Approx. 270 x 200 x 60 mm (10.63 x 7.87 x 2.36 in)
Panel Cut-out Approx. 260 x 190 mm (10.24 x 7.48 in)
Weight Approx. 1.8 kg (3.97 lbs)
Software
Programming Software B&R Automation Studio (Version 3.0 or higher recommended)
Operating System B&R Automation Runtime
