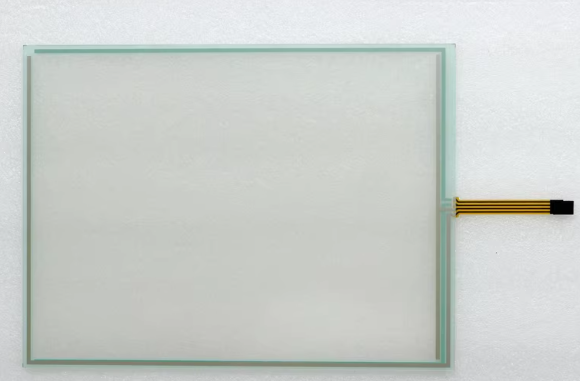

for Dannieson New Touch Screen 5AP920.1505-K21
1. Display Specifications
Parameter Specification Notes
Display Type 15" TFT Color LCD XGA (Extended Graphics Array)
Resolution 1024 × 768 pixels Standard XGA resolution
Touch Screen Type Analog Resistive Durable, can be operated with gloved hands
Front Protection IP65 Dust-tight and protected against water jets
Overlay Material Polyester Light background color similar to Pantone 427CV; dark display border similar to Pantone 432CV
2. Physical Specifications
Parameter Specification Notes
Dimensions (W × H × D) 435 × 330 × 54 mm Compact installation depth
Weight 5100 g (5.1 kg)
Housing Material Metal Coating similar to Pantone 432CV
Front Frame Material Aluminum Natural anodized finish
Sealing Flat gasket Integrated around display front for additional protection
Cooling Method Fanless Reduces maintenance and enhances system longevity
3. Interface & Connectivity
Interface Type Notes
USB Ports 3 × USB 2.0 Type A Transfer rates up to 480 Mbit/s; each port provides max 500 mA current
Automation Panel Link Slot Yes Supports advanced connectivity options
Upgrade Options Display Link cards, PPC300 module For enhanced system connectivity and performance
4. Operator Controls
Control Type Description Notes
Function Keys Yes Flexible operation
Softkeys Yes Flexible operation
System Keys Yes Flexible operation
5. Electrical Specifications
Parameter Specification Notes
Input Power 24 VDC Energy-efficient operation
USB Power Output 500 mA per port Maximum current per USB port
6. Environmental Specifications
Parameter Specification Notes
Operating Temperature -40°C to +80°C Wide temperature range for harsh environments
Front Protection Rating IP65 Dust-tight and protected against water jets
Construction Durability Metal housing with integrated flat gasket Enhanced durability against industrial environmental factors
7. Key Features & Benefits
Feature Benefit
15" XGA TFT Display Large, clear 1024×768 resolution for detailed visualization
Analog Resistive Touch Reliable operation with gloved hands in industrial settings
Fanless Operation No moving parts for enhanced reliability and reduced maintenance
IP65 Front Protection Withstands dust, water spray, and harsh industrial environments
Wide Operating Temperature (-40°C to +80°C) Suitable for extreme climate conditions and demanding applications
Triple USB 2.0 Ports High-speed connectivity for peripherals (480 Mbit/s)
Metal Construction Rugged housing with anodized aluminum front frame for durability
Upgradeable Architecture Supports Display Link cards and PPC300 modules for system expansion
Compact Installation Depth (54 mm) Space-saving design for tight control panels
Function, Soft, and System Keys Flexible operator input options beyond touchscreen
