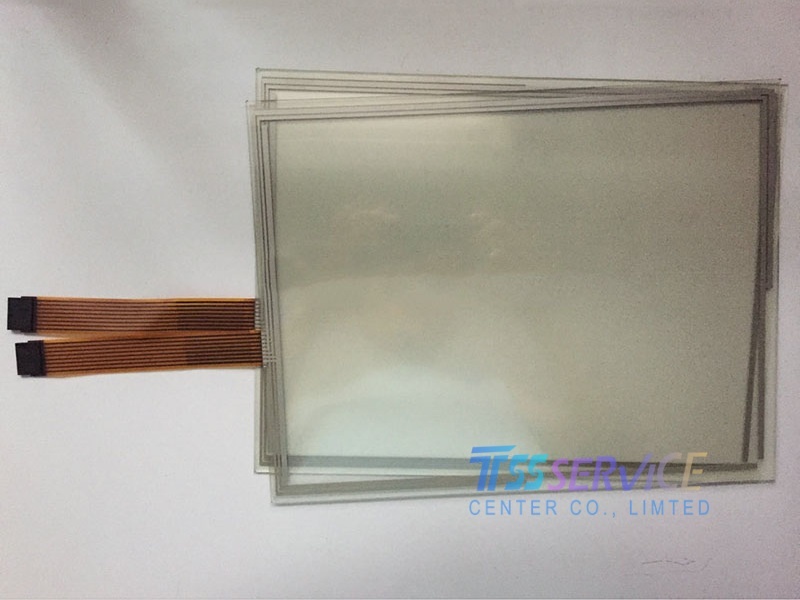

Physical Specifications
Diagonal Size: 10.4 inches (264 mm)
Outline Dimensions:
Active Area: Typically 211.2 x 158.4 mm
Overall Dimensions: Usually around 233.2 x 180.4 mm (This can vary slightly depending on the bezel, precise measurement recommended)
Thickness: Approximately 2.8 mm (including glass and film layers)
Material: Glass substrate with polyester (PET) film top layer
Color: Translucent / Clear (with silver or black tail)
Electrical & Interface
Touch Interface: 4-Wire / 5-Wire Resistive (most commonly 5-wire for industrial use)
Tail / Cable: Attached flexible tail with a ZIF (Zero Insertion Force) connector or AMP compatible connector. Pin pitch is often 1.25mm or 2.54mm depending on generation.
Controller: Requires a separate touch controller (e.g., 3M MicroTouch controller EXII or similar)
Environmental & Performance
Light Transmission: ~80% (typical for resistive touch)
Operating Temperature: -15°C to +70°C (5°F to 158°F)
Storage Temperature: -25°C to +80°C (-13°F to 176°F)
Haze: <10%
Surface Hardness: 3H or higher (pencil hardness)
Input Method: Stylus or gloved finger
Durability: Millions of touches (specific to 5-wire resistive technology)
Typical Applications
Application: Medical Devices, Industrial Control Panels, POS (Point of Sale) Terminals, Marine Displays
