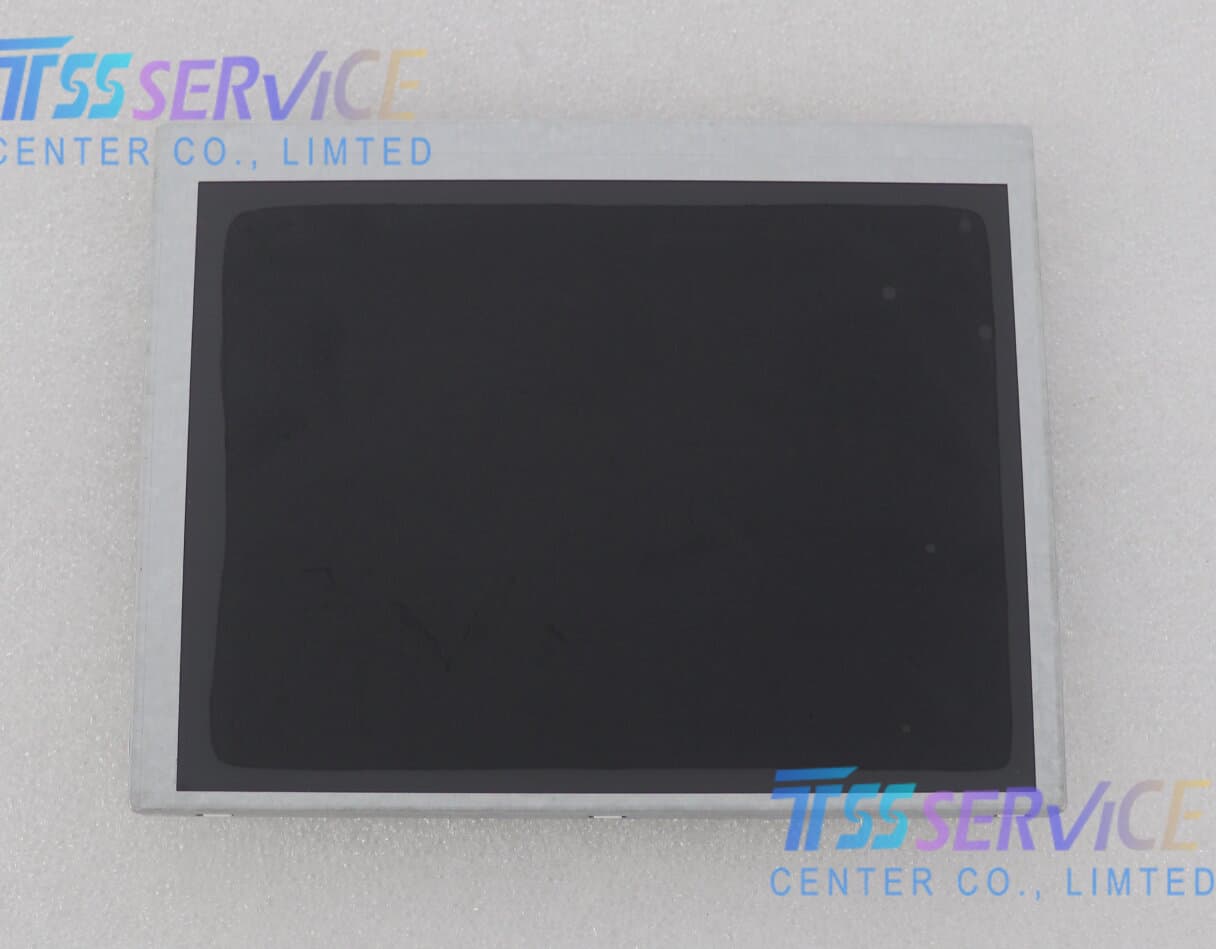

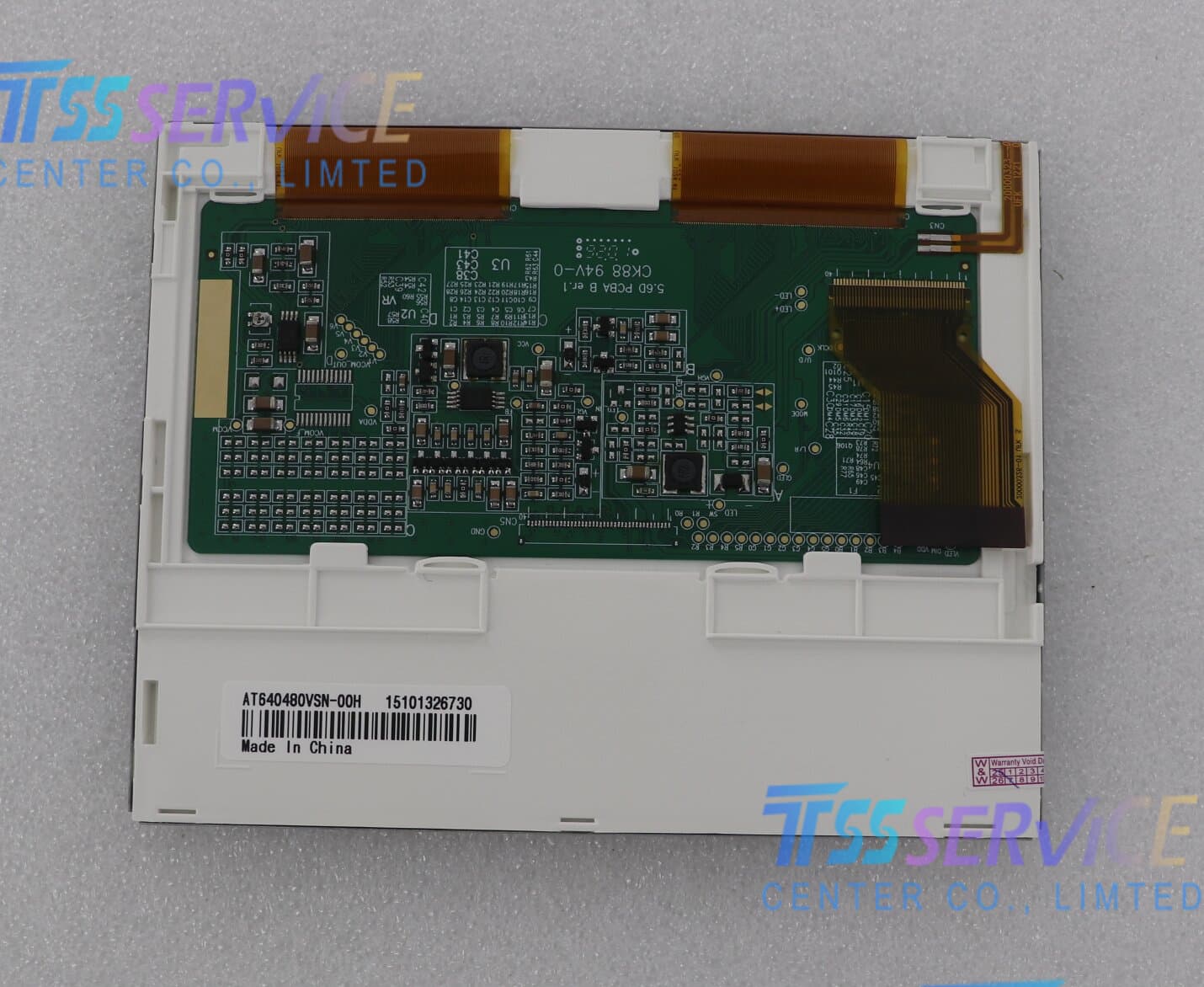

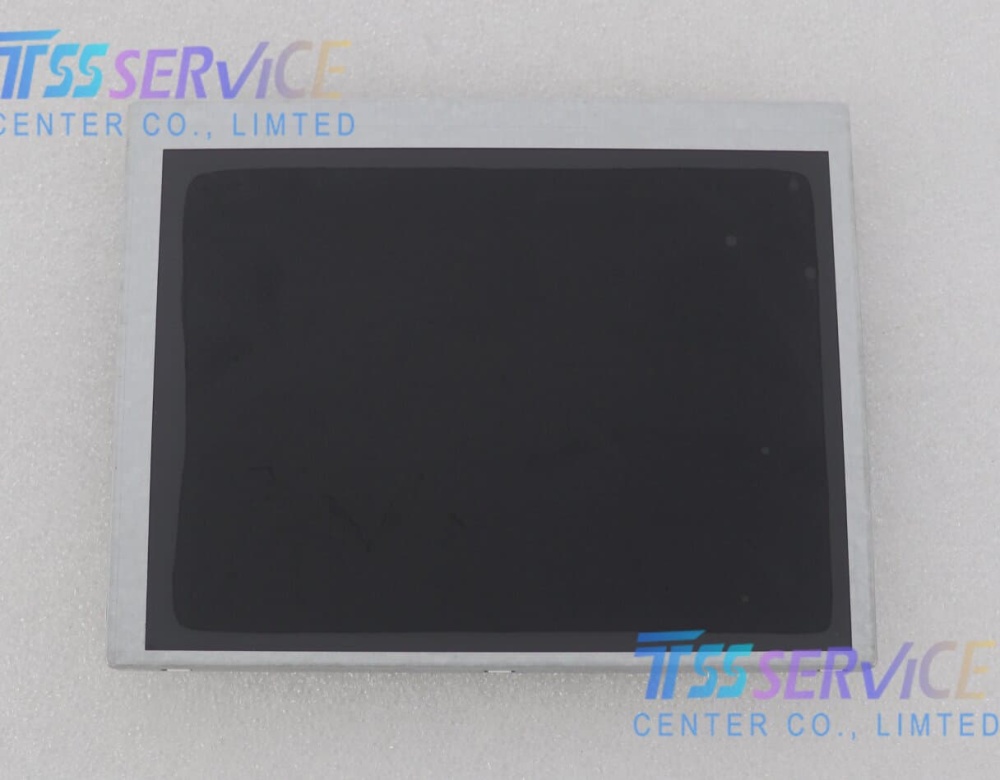

AT640480VSN-00H Innolux 640 × 480 LCD Panel Display For Industrial

SKU: AT640480VSN-00H
Model P/N: AT640480VSN-00H
Diagonal Size: 5.6"
Pixel Number: 640(RGB) × 480 (VGA)
0.0 (0 Reviews)
0 Sold
$49.00 $46.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • AT640480VSN-00H Innolux 640 × 480 LCD Panel Display For Industrial
  • AT640480VSN-00H Innolux 640 × 480 LCD Panel Display For Industrial
  • AT640480VSN-00H Innolux 640 × 480 LCD Panel Display For Industrial
  • AT640480VSN-00H Innolux 640 × 480 LCD Panel Display For Industrial
  • AT640480VSN-00H Innolux 640 × 480 LCD Panel Display For Industrial
  • AT640480VSN-00H Innolux 640 × 480 LCD Panel Display For Industrial
1/1
  • AT640480VSN-00H Innolux 640 × 480 LCD Panel Display For Industrial
  • AT640480VSN-00H Innolux 640 × 480 LCD Panel Display For Industrial
  • AT640480VSN-00H Innolux 640 × 480 LCD Panel Display For Industrial
  • Description
AT640480VSN-00H Innolux 640 × 480 LCD Panel Display For Industrial
Parameter Details
Manufacturer Innolux (Chimei Innolux)
Diagonal Size 5.6" (inch)
Resolution 640(RGB) × 480 (VGA)
Panel Type a-Si TFT-LCD, TN, Normally White, Transmissive
Brightness 350 ~ 400 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.)
Viewing Angle 60/60/50/50° (L/R/U/D, CR≥10)
Color Depth 262K / 16.7M (6/8-bit)
Active Area 117.6 (W) × 88.2 (H) mm
Outline Dimensions 131.0 (W) × 104.0 (H) × ~6.5 mm

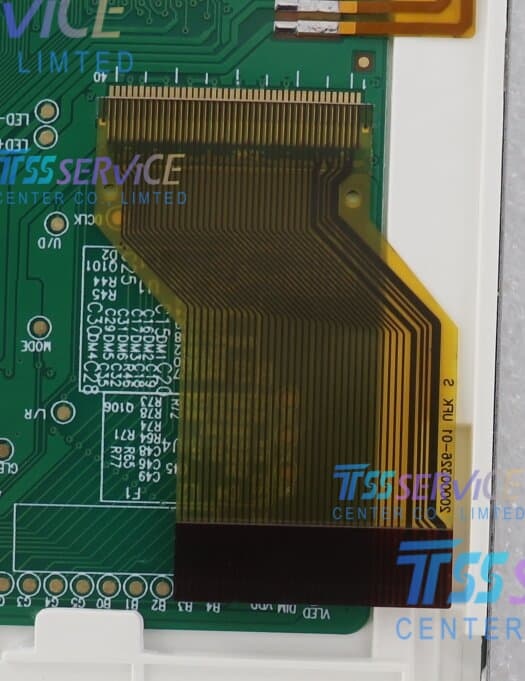

Interface TTL (Parallel RGB), 40-pin FPC
Supply Voltage 3.3V
Backlight WLED, 4/6 strings, Driver built-in
Operating Temp. -20°C ~ +70°C
RoHS Yes

Typical Applications

  • Industrial HMI & PLC terminals
  • Medical & healthcare equipment
  • Car DVD / GPS navigation
  • Portable test instruments
  • Factory automation displays
