TDK CXA-M10L-L CCFL Inverter Board 12V Input 6W Non-Dimming DC-AC Backlight Driver

Name: TDK CXA-M10L-L CCFL Inverter Board 12V Input 6W Non-Dimming DC-AC Backlight Driver
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: CXA-M10L-L
Price: 20 USD
Availability: InStock

SKU: CXA-M10L-L

Model Number: CXA-M10L-L
Brand: TDK
Product Type: CCFL Backlight Inverter (DC-AC Converter)
Input Voltage: 12V DC
Rated Power: 6W
Output Voltage: 1200V AC High Voltage

0.0 (0 Reviews)

0 Sold

~~$22.00~~ $20.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

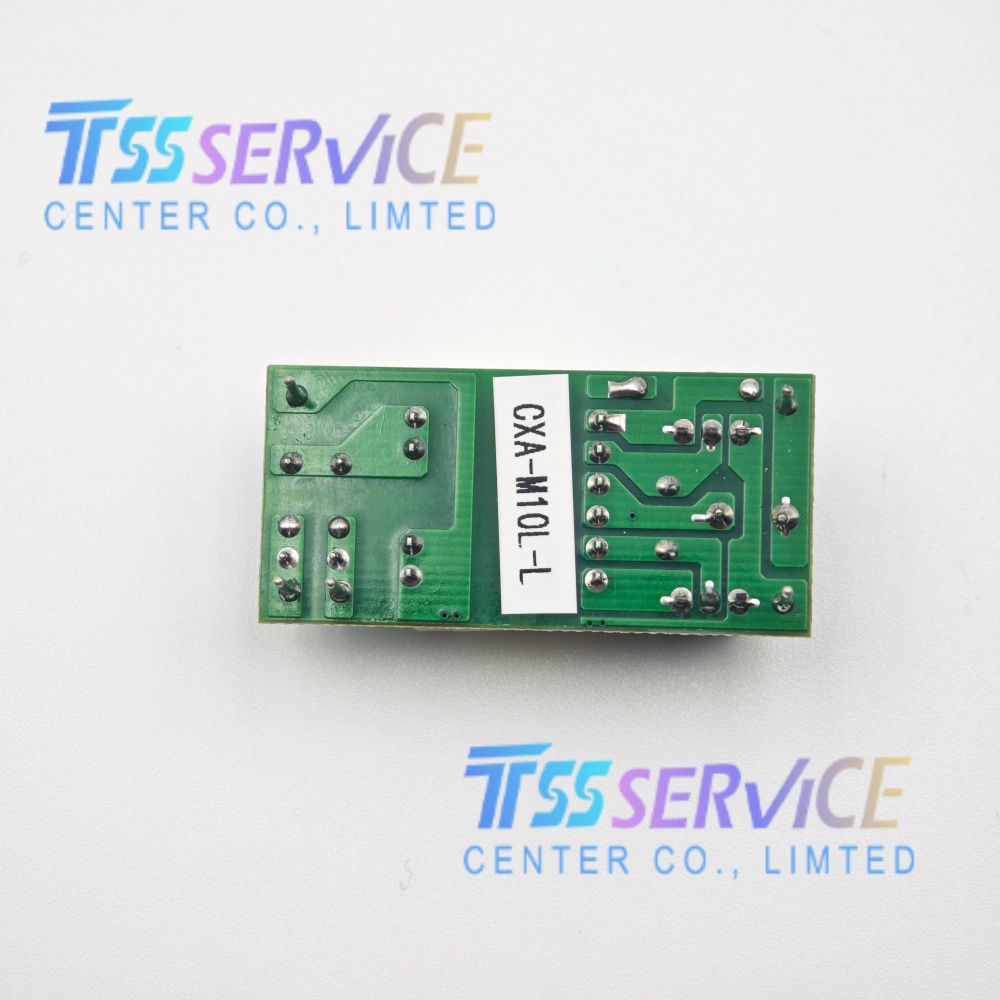

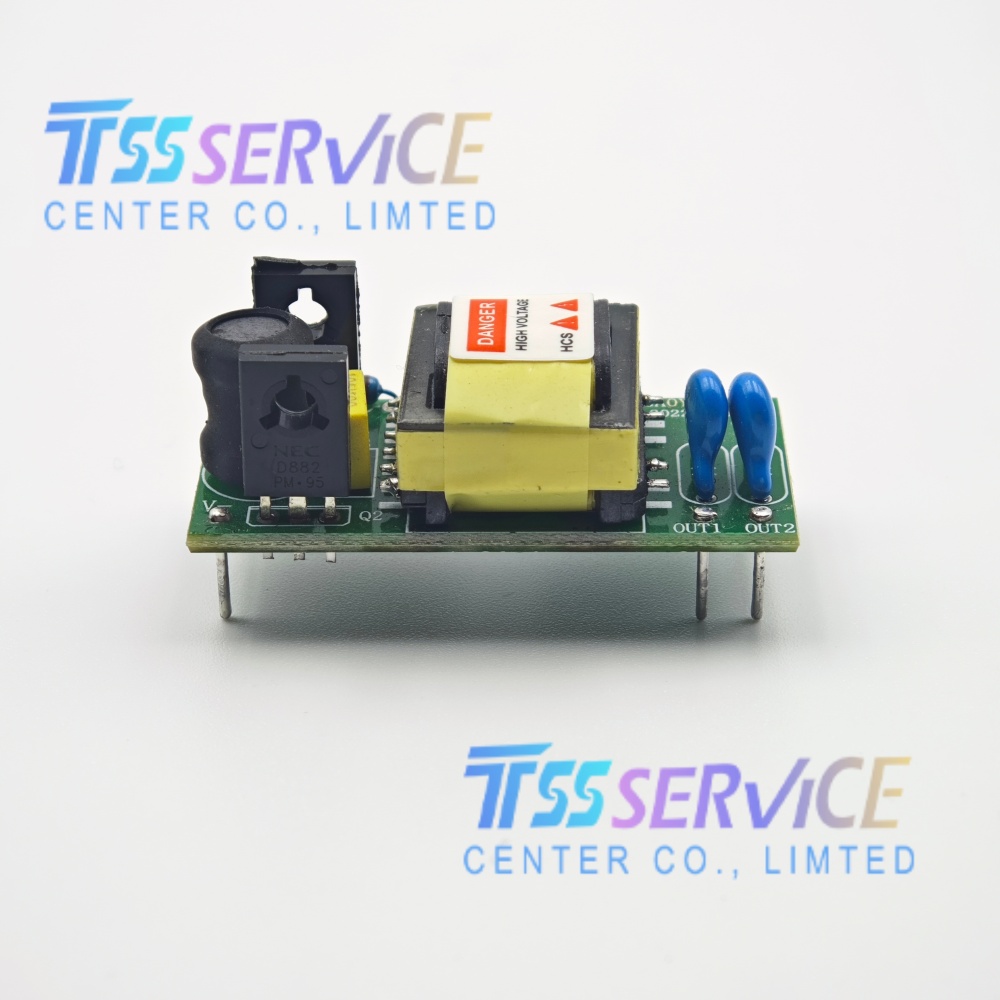

TDK CXA-M10L-L CCFL Inverter Board 12V Input 6W Non-Dimming DC-AC Backlight Driver

Parameter Item	Specific Specification
Model Number	CXA-M10L-L
Brand	TDK
Product Type	CCFL Backlight Inverter (DC-AC Converter)
Input Voltage	12V DC
Rated Power	6W
Output Voltage	1200V AC High Voltage
Supported Lamps	1 or 2 CCFL Cold Cathode Fluorescent Lamps
Dimming Function	Non-Dimming (Fixed Brightness)
Circuit Topology	Resonance Push-Pull Circuit, Sine Wave Low Noise Output
Efficiency	Typical 80%
Mounting Method	Through Hole PCB On-board Mount
Overall Dimension	56mm(L) × 29mm(W) × 14.5mm(H) / 2.20" × 1.14" × 0.57"
Typical Weight	~11g
Operating Temperature	-10℃ ~ +60℃
Storage Temperature	-20℃ ~ +80℃
Output Current	Adjustable via 4 wiring configurations for different lamp loads
EMI Performance	Low noise sine wave output, stable constant current drive
Production Status	Obsolete / Discontinued by TDK, Only Stock Inventory Available
Grade	Original Tested Working Unit
Warranty	90 Days Test Warranty

Application Scenarios

Vintage CNC Lathe, Milling, EDM Machine CCFL LCD Backlight Power Replacement
Old-generation Industrial HMI Human Machine Interface CCFL Screen Driver
Injection Molding, Textile, Packaging Automation Equipment Display Inverter
OPTREX, Kyocera, Torisan CCFL Industrial LCD Panel Matching Power Supply
Traditional Medical Monitoring & Diagnostic Instrument LCD Backlight Driver
Laboratory Test & Measuring Equipment, Industrial Inspection Terminal Spare Parts
Construction Machinery, Forklift, Agricultural Vehicle On-board CCFL Screen Power
Marine Small Monitoring Displays, Legacy Embedded Industrial Control Computers
UV Small Lamp Driver, Special Light Source Power Supply Equipment
