| General Information |
|
| Manufacturer |
DMC (Diamond Media Corporation) |
| Model Number |

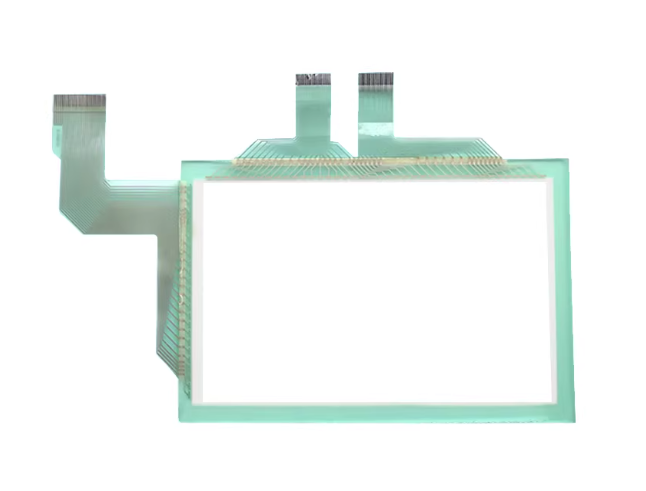

DMC-T2724 |
| Product Type |
Industrial Touch Screen LCD Monitor |
| Display |
|
| Screen Size |
24 inches (diagonal) |
| Display Type |
TFT LCD (Thin Film Transistor) |
| Resolution |
1920 x 1080 pixels (Full HD) |
| Aspect Ratio |
16:9 |
| Brightness |
Standard: 300 cd/m² (typical) |
| Contrast Ratio |
3000:1 (typical) |
| Viewing Angle |
Horizontal: 178°, Vertical: 178° |
| Response Time |
5 ms (typical) |
| Display Colors |
16.7 million (8-bit) |
| Backlight Type |
LED (Light Emitting Diode) |
| Backlight Life |
50,000 hours (typical) |
| Touch Screen |
|
| Touch Technology |
Available in two configurations: |
|
Resistive Touch (standard option) |
|
Capacitive Touch (optional) |
| Touch Interface |
USB (Plug and Play) |
| Touch Durability |
Resistive: 1 million touches or more |
| Light Transmission |
Resistive: 80-85%; Capacitive: 88-92% |
| Electrical |
|
| Input Voltage |
100-240 VAC, 50/60 Hz (external power adapter) |
| Power Consumption |
25-35 W (typical) |
| Video Inputs |
VGA (D-sub 15-pin), DVI, HDMI |
| Audio |
Built-in speakers (2W x 2) |
| Communication |
|
| Touch Interface |
USB (Type B) |
| Video Signal |
VGA, DVI, HDMI |
| Physical |
|
| Construction |
Heavy-duty aluminum housing |
| Dimensions (W x H x D) |
580 x 360 x 55 mm (22.8 x 14.2 x 2.2 in) |
| VESA Mounting |
100 x 100 mm and 200 x 100 mm patterns |
| Weight |
Approximately 7.5 kg (16.5 lbs) |
| Environmental |
|
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
| Relative Humidity |
10% to 90% (non-condensing) |
| Protection Rating |
IP65 (front panel, when properly installed) |
| Certifications |
CE, FCC, RoHS |
