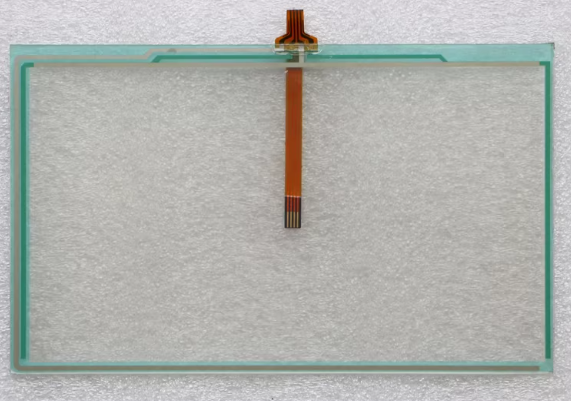

New Touch Screen DOP-B07S211 165X100
Category Specification
General Information
Manufacturer Delta Electronics
Product Series DOP-B Series
Model Number DOP-B07S211
Product Type Touch Screen HMI (Human-Machine Interface)
Display
Display Size 7" Widescreen
Display Type TFT LCD
Display Colors 65,536 colors
Resolution 800 x 480 pixels (WVGA)
Backlight LED backlight (typical half-life: 20,000 hours)
Touch Panel Analog resistive type
Brightness 400 cd/m² (typical)
Contrast Ratio 500:1 (typical)
Processor & Memory
Processor 32-bit RISC Micro-controller
Flash ROM 82 MB (built-in)
RAM Information not specified in search results
Battery Backup 3V lithium battery CR2032 x 1
Battery Life Approximately 3 years or more at 25°C
Communication Interfaces
Serial Ports 3 communication ports supporting different protocols simultaneously
COM1 RS-232 (supports flow control)
COM2 RS-232 / RS-422 / RS-485
COM3 RS-232 / RS-422 / RS-485 (supports communication status indicators)
USB USB Host (Type A) for printer, mouse, or USB flash drive
Ethernet Not available on this model (available on E-type models)
SD Card Slot Not available on this model (available on E-type models)
Electrical
Power Supply 24 VDC
Power Consumption 4.8W
Voltage Endurance AC500V for 1 minute (between DC24V terminal and FG terminals)
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Ambient Humidity 10% to 90% RH (0°C to 40°C), 10% to 55% RH (41°C to 50°C)
Pollution Degree 2 (IEC 61131-2 compliant)
Vibration Resistance 5Hz ≤ f < 9Hz: Continuous 1.75mm / Occasional 3.5mm; 9Hz ≤ f ≤ 150Hz: Continuous 0.5g / Occasional 1.0g
Protection Rating IP65 / NEMA 4 (front panel)
Physical
Dimensions (W x H x D) 214 x 160 x 48 mm (8.43 x 6.30 x 1.89 in)
Panel Cut-out 196.9 x 142.9 mm (7.75 x 5.63 in)
Weight Approx. 840 g (1.85 lbs)
Certifications CE, UL (in process for some models at time of documentation)
Software
Programming Software Delta Screen Editor (downloadable from Delta website)
