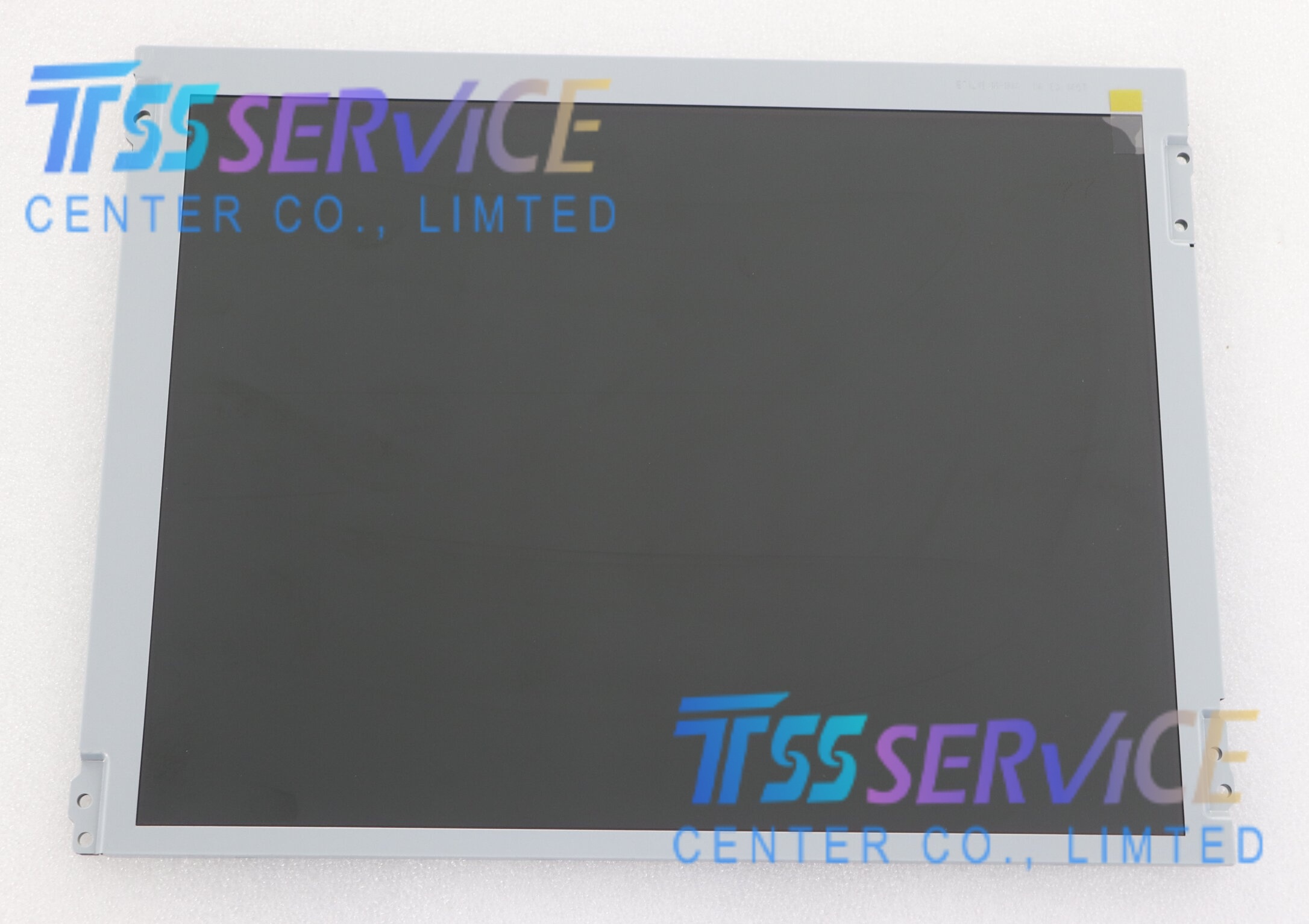

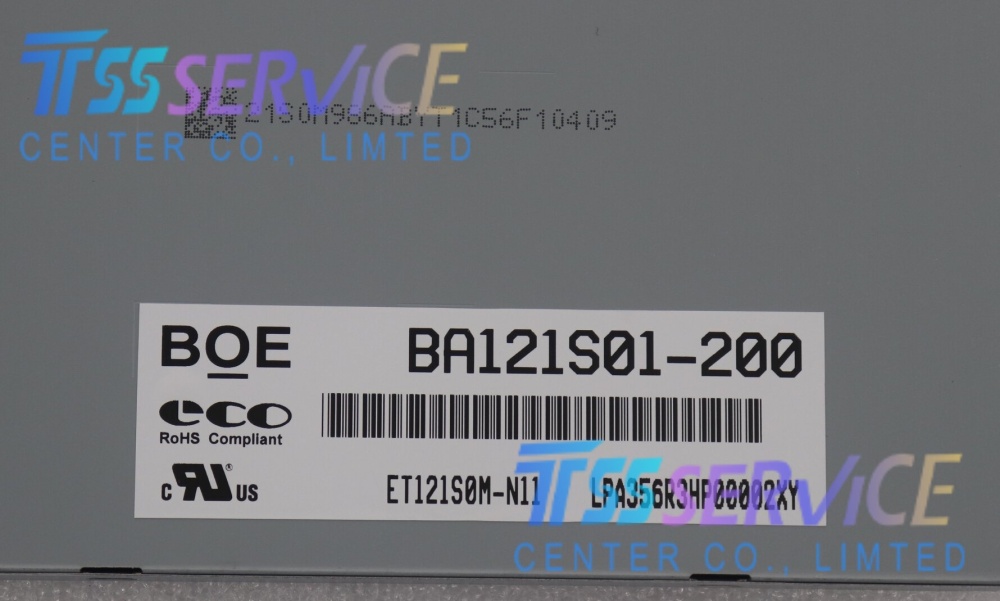

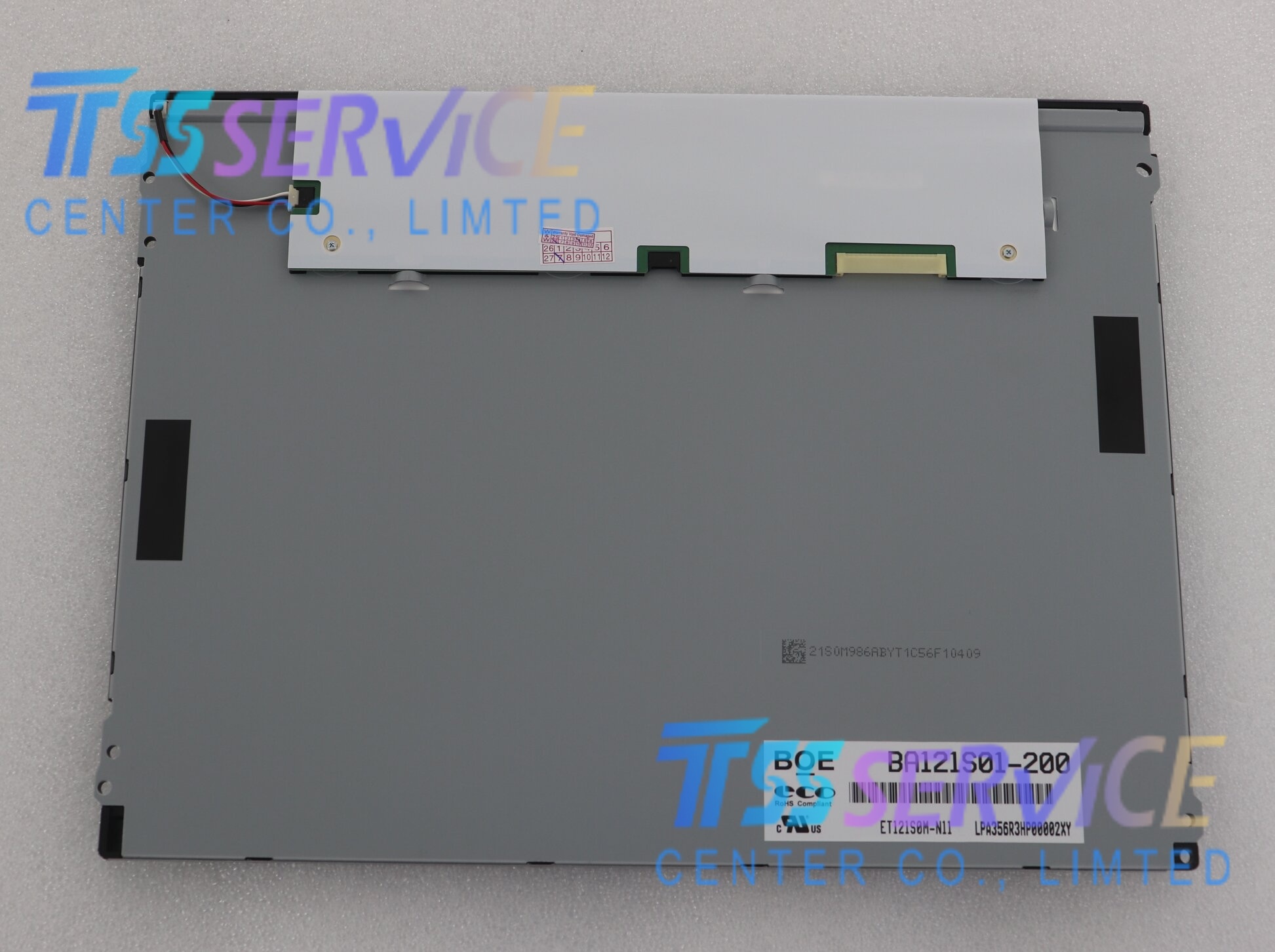

BOE ET121S0M-N11 12.1 Inch SVGA 800×600 Industrial TFT LCD Panel
| Item |
Detailed Parameter |
| Brand Manufacturer |
BOE |
| Model Number |
ET121S0M-N11 |
| Diagonal Screen Size |
12.1 inch |
| Panel Type |
a-Si TFT-LCD, LCM Module |
| Pixel Resolution |
800(RGB) × 600 (SVGA), 4:3 Aspect Ratio |
| Pixel Format |
RGB Vertical Stripe |
| Active Display Area |
246(H) × 184.5(V) mm |
| Overall Physical Dimension |
279(H) × 209(V) × 9.3(D) mm |
| Max Mass Weight |
630g |
| Surface Coating |
Antiglare, 25% Haze |
| Typical Luminance (Brightness) |
400 cd/m² |
| Typical Contrast Ratio |
800:1 (TM Mode) |
| View Direction |
6 o'clock |
| Total Response Time |
30ms (Tr+Td Typical) |
| Viewing Angle (U/D/L/R) |
80° / 80° / 65° / 75° (CR≥10) |
| Display Operating Mode |
TN, Normally White, Transmissive |
| Supported Display Colors |
262K / 16.7M, 55% NTSC Color Gamut |
| Max Power Usage |
5.23W |
| Backlight Light Source |
9S2P WLED, 30,000 Hours Lifespan, With Built-in LED Driver & PWM Dimming |
| Frame Refresh Rate |
60Hz |
| Touch Panel Function |
Without Touch Screen |
| Signal Interface Type |
LVDS (1 Channel, 6/8-bit), 20 Pins FPC Connector |
| Typical Power Supply Voltage |
3.3V |
| Operating Temperature |
-20 ℃ ~ 70 ℃ |
| Storage Temperature |
-30 ℃ ~ 80 ℃ |
Application Scenarios
1. Industrial Automation Equipment
- CNC machine tool operation HMI panels
- Injection molding machine control screens
- Packaging & textile machinery man-machine interfaces
- PLC industrial control terminals
- Factory workshop monitoring display modules
2. Medical Diagnostic & Monitoring Devices
- Patient bedside vital sign monitors
- Medical ultrasound auxiliary display screens
- Laboratory testing equipment operation panels
- Rehabilitation therapy machine control interfaces
- Hospital ward medical parameter display terminals
3. Other Embedded Industrial Equipment
- Portable industrial testing & measuring instruments
- Factory assembly line operation control screens
- Small-size industrial embedded kiosks
