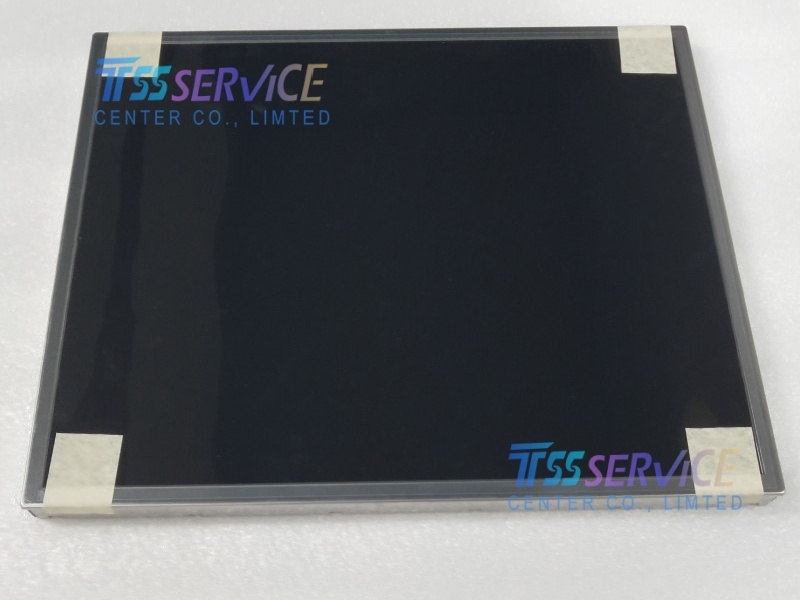

FLC48SXC8V-11A 19inch 1280*1024 TFT-LCD Screen Panel for Sharp

Name: FLC48SXC8V-11A 19inch 1280*1024 TFT-LCD Screen Panel for Sharp
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: FLC48SXC8V-11A
Price: 280 USD
Availability: InStock

SKU: FLC48SXC8V-11A

1，Condition: New，Grade A

2，Description: FLC48SXC8V-11A 19inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$290.00~~ $280.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The FLC48SXC8V-11A is a 19.0-inch industrial-grade TFT-LCD module manufactured by Fujitsu . Designed for demanding visual applications, this panel features SXGA resolution and advanced MVA (Multi-domain Vertical Alignment) technology, delivering exceptional image quality with wide viewing angles and high contrast . While the search results indicate this as a Fujitsu product, the user query mentions "for Sharp," which may refer to compatibility with Sharp systems or the fact that a compatible inverter exists for Sharp/Fujitsu displays.

Parameter	Value
Mfr.	Fujitsu
Model Name	FLC48SXC8V-11A
Display Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA, 5:4
Dot Layout	RGB Vertical Stripe
Display Area	376.32(W)×301.056(H) mm
Panel Weight	2.50Kgs (Max.)
Outline Size	404.2(W)×330(H)×20.3(D) mm
Surface	Antiglare (Haze 25%), Hard coating (2H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Min.)(CR≥10)
Display Mode	MVA, Normally Black, Transmissive
View Direction	Symmetry
Response Time	15/10 (Typ.)(Tr/Td) ms
Display Colors	16.7M, 71% NTSC
Touch Screen	Without
Light Source	4 pcs CCFL, 50K hrs, Without Driver
Frequency	75Hz
Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Operating Temp.	0 ~ 55 °C
Storage Temp.	-20 ~ 60 °C

Applications

Industrial Workstations – Factory automation control panels, HMI terminals
Professional Monitors – Desktop displays for office and technical use
Medical Equipment – Diagnostic imaging displays (subject to safety verification)
Test and Measurement Instruments – Data visualization and monitoring
Legacy System Replacement – Ideal for maintaining older equipment
