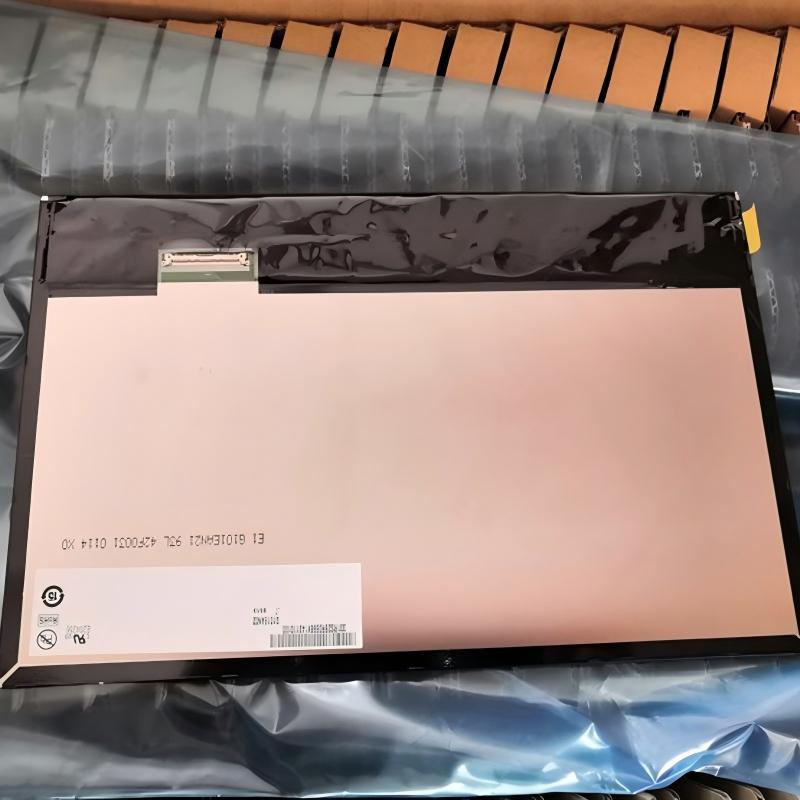

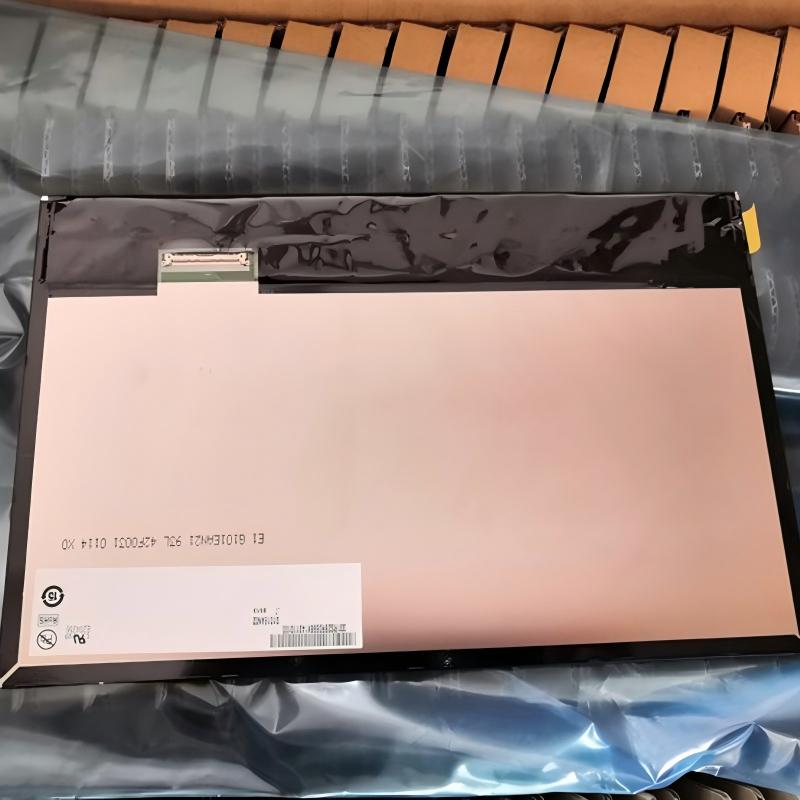

The G101EAN02.1 is a 10.1-inch a-Si TFT-LCD (amorphous silicon thin film transistor liquid crystal display) module engineered by AUO for demanding industrial applications . Currently in production and in stock with multiple global distributors, this model features WXGA resolution, AHVA wide-viewing technology, and an integrated LED driver, making it an excellent choice for industrial human-machine interfaces, medical devices, and portable equipment .
| Brand |
AUO |
| Model P/N |
G101EAN02.1 |
| Diagonal Size |
10.1" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1280(RGB)×800, WXGA, 149PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
216.96(W) × 135.6(H) mm |
| Outline Size |
227.72(W) × 147.8(H) × 4.8(D) mm |
| Surface |
Hard coating |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
800 : 1 (Typ.) (TM) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
| Display Mode |
AHVA, Normally Black, Transmissive |
| Best View on |
Symmetry |
| Response Time |
29 ms (Typ.)(Tr+Td) |
| Display Colors |
16.7M, 50% NTSC |
| Lamp Type |
WLED, 20K hours, With LED Driver |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Weight |
195g (Max.) |
| Signal Interface |
LVDS (1 ch, 8-bit), 40 pins Connector |
| Input Voltage |
3.3V (Typ.) |
| Environment |
Operating Temp.: -20 ~ 60 °C; Storage Temp.: -20 ~ 60 °C |
Applications
This industrial-grade display panel is ideally suited for:
-
Industrial Human-Machine Interfaces (HMIs) : Control panels for factory automation and process control
-
Medical Equipment: Patient monitors and diagnostic devices requiring wide viewing angles
-
Handheld Devices: Portable terminals and PADs
-
Smart Storage Systems: AGV dispatch screens for warehouse automation
-
Laboratory Instruments: Test and measurement equipment
-
In-Vehicle Displays: Information systems requiring rugged reliability
