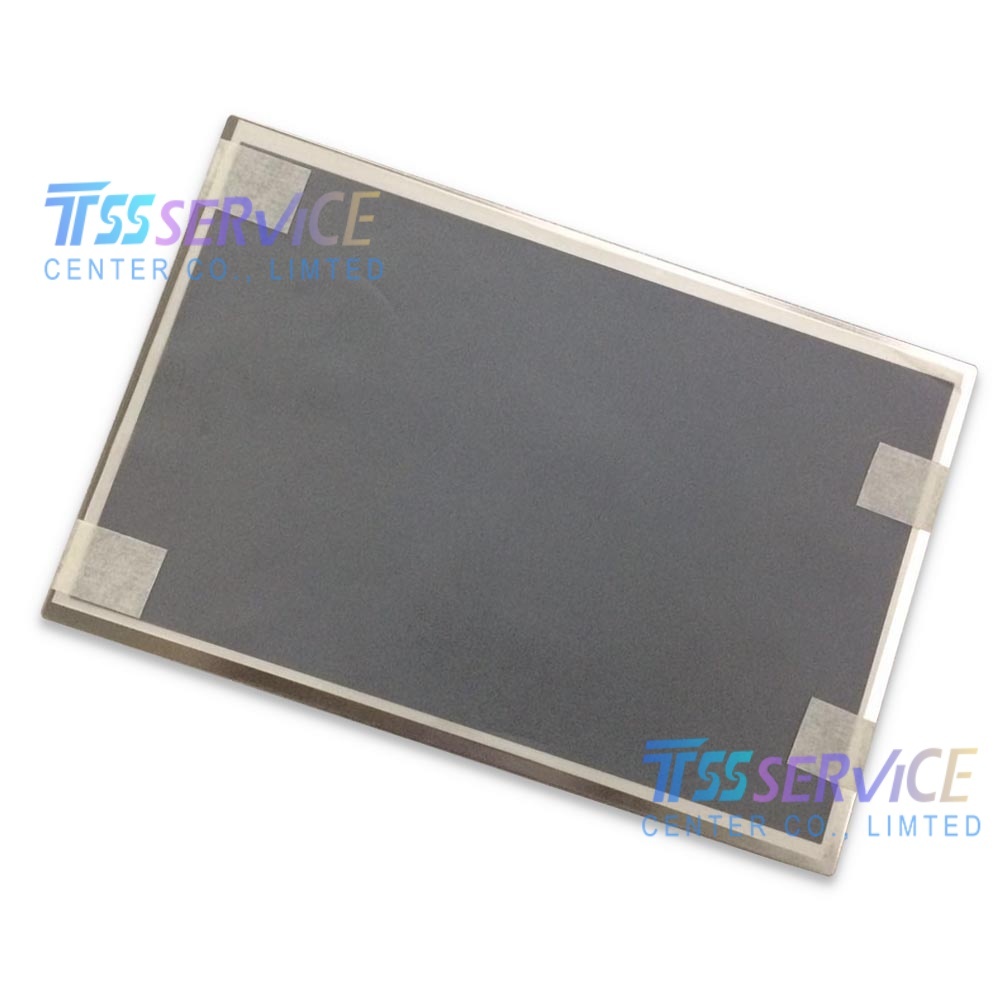

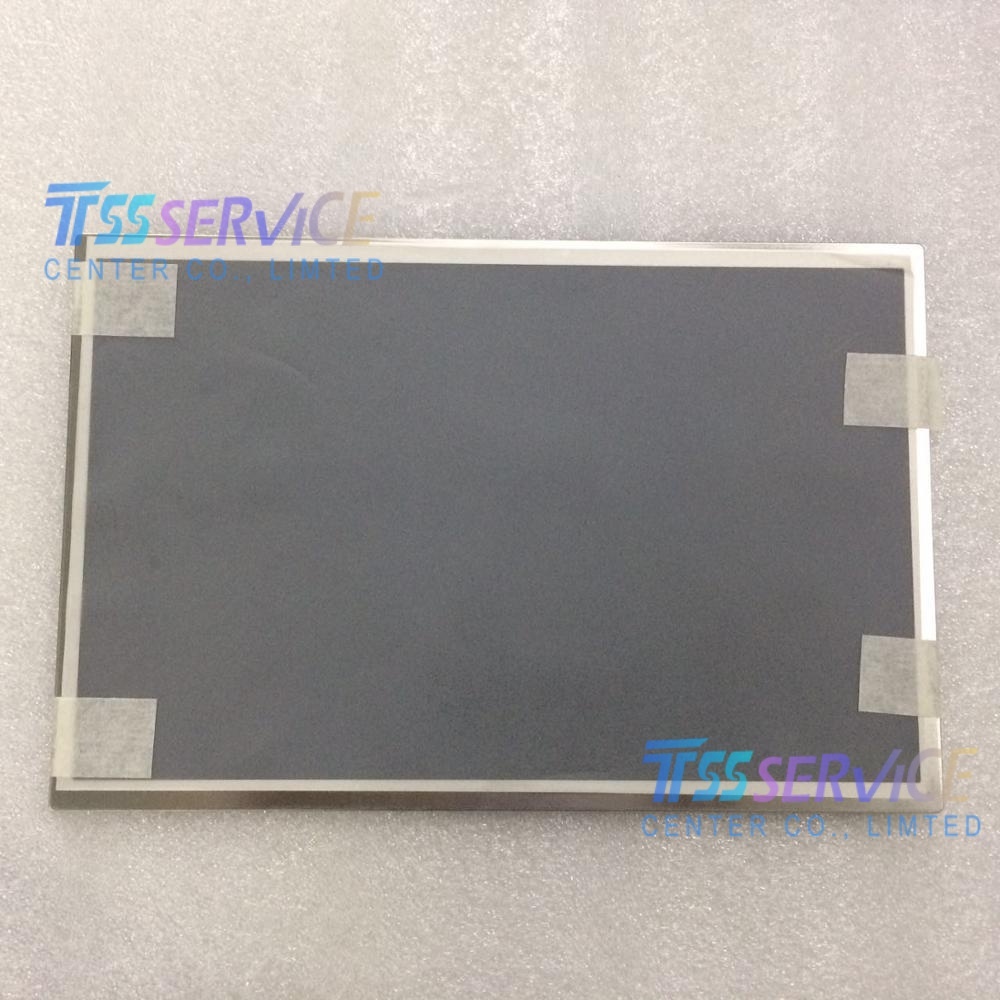

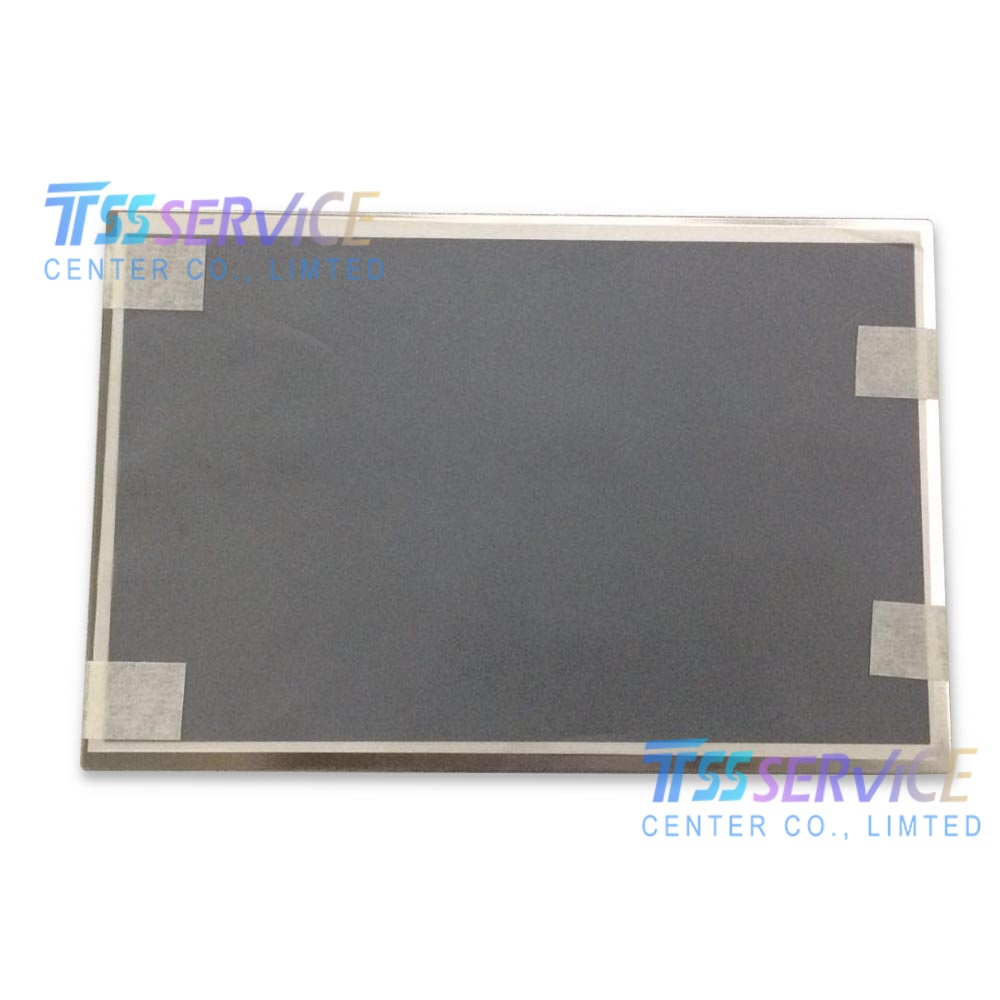

G101ICE-LH1 10.1 inch 1280×800 Industrial LCD Panel Screen For Innolux
| Parameter |
Value |
| Manufacturer |
Innolux |
| Model |
G101ICE-LH1 |
| Panel Type |
a‑Si TFT‑LCD, AAS (IPS‑like), Normally Black, Transmissive |
| Diagonal Size |
10.1 inches |
| Resolution |
1280(RGB) × 800 (WXGA), 149 PPI |
| Aspect Ratio |
16:10 |
| Active Area |
216.96(W) × 135.60(H) mm |
| Outline Dim. |
230.7(W) × 152.55(H) × 7.0(D) mm |
| Pixel Pitch |
0.1695 × 0.1695 mm (H×V) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Brightness |
500 cd/m² (Typ.) |
| Contrast Ratio |
800:1 (Typ.) |
| Viewing Angle |
88/88/88/88° (Typ., CR≥10) |
| Response Time |
13/12 ms (Tr/Td, Typ.) |
| Color Depth |
262K / 16.7M colors (6/8‑bit) |
| Color Gamut |
~52% NTSC (Typ.) |
| Backlight |
Edge‑lit WLED, 50,000 hrs lifetime, built‑in driver |
| Interface |
LVDS (1 ch, 6/8‑bit), 30‑pin connector |
| Surface |
Anti‑Glare (AG), Hard Coating (3H) |
| Power Supply |
5.0V (Typ.) |
| Operating Temp |
-30°C ~ +80°C |
| Storage Temp |
-40°C ~ +85°C |
| Vibration Resistance |
1.5G (14.7 m/s²) |
| Weight |
300 g (Typ.) / 315 g (Max.) |
| Frame Rate |
60 Hz |
| RoHS |
Compliant |
This wide‑temperature, high‑viewing‑angle panel is widely used in industrial, medical, transportation, and embedded systems:
- Industrial Control & HMI: Factory automation panels, PLC interfaces, process monitoring, industrial PCs.
- Medical Devices: Portable diagnostic equipment, patient monitors, bedside terminals.
- Test & Measurement: Oscilloscopes, data loggers, spectrum analyzers, handheld meters.
- Transportation: In‑vehicle displays, fleet management, marine/avionics control panels.
- POS & Kiosks: Self‑service terminals, retail cash registers, ticketing machines.
- Gaming & Amusement: Arcade machines, slot machines, gaming consoles.
- Rugged Embedded: Outdoor/industrial tablets, vehicle mount displays, industrial IoT HMI.
