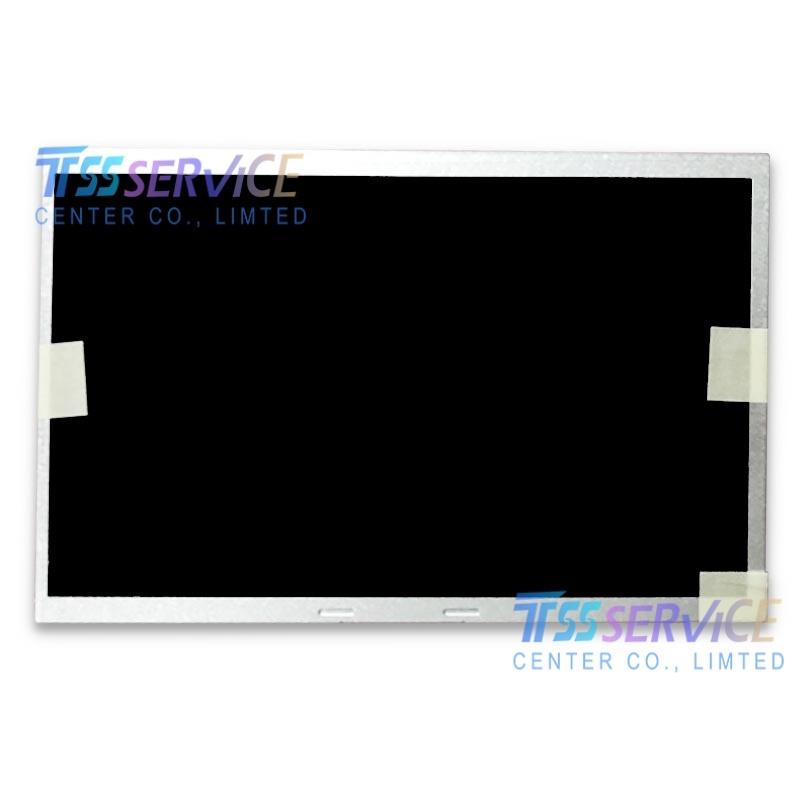

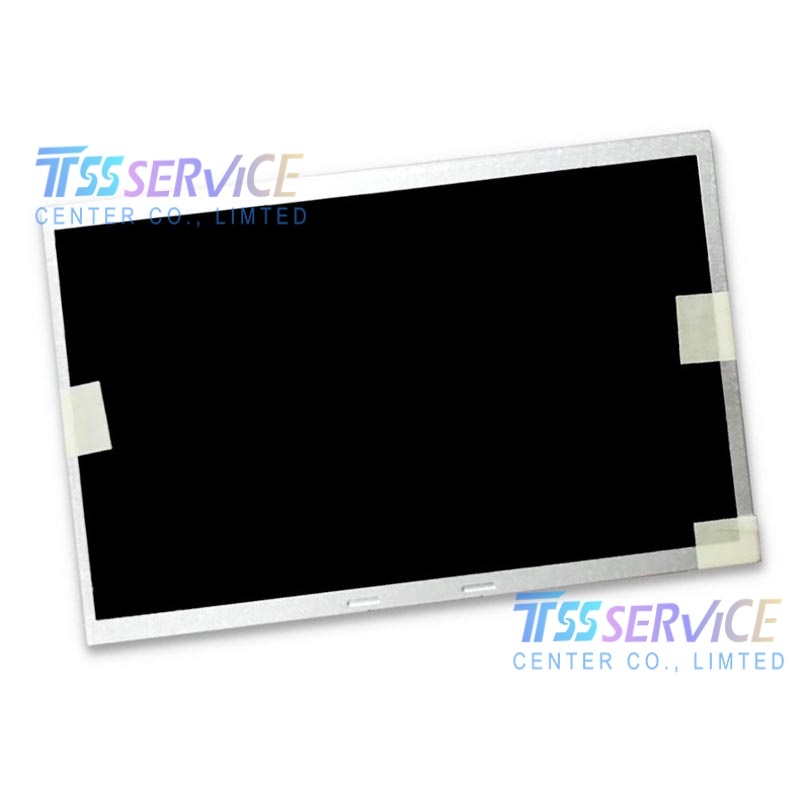

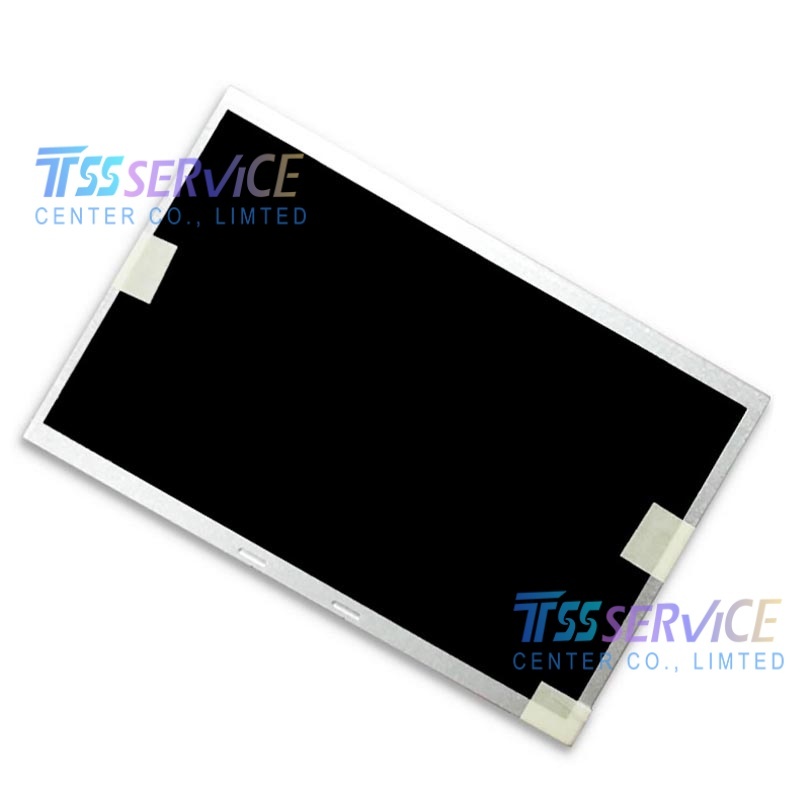

AUO G101STN01.C 10.1 inch 1024×600 TFT-LCD Display Panel Screen for Industrial
| Parameter Category |
Item |
Value/Description |
| Basic Info |
Manufacturer |
AU Optronics |
|
Model |
G101STN01.C |
|
Panel Type |
a‑Si TFT‑LCD Module (LCM) |
|
Diagonal Size |
10.1 inches |
|
Aspect Ratio |
16:9 (W:H) |
|
Display Mode |
TN, Normally White, Transmissive |
| Resolution & Pixel |
Resolution |
1024(RGB) × 600 (WSVGA) |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Pixel Pitch |
0.2175 × 0.2088 mm (W×H) |
|
Pixel Density |
117 PPI |
| Optical |
Brightness |
500 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ., Transmissive) |
|
Display Colors |
262K / 16.7M (6‑bit / 6‑bit + Hi‑FRC) |
|
Color Gamut |
45% NTSC |
|
Response Time |
20 ms (Tr+Td, Typ.) |
|
Viewing Angle |
70/70/60/60° (L/R/U/D, CR≥10, Typ.) |
|
Surface |
Antiglare (AG), 3H Hard Coating |
| Mechanical |
Active Area |
222.72 × 125.28 mm (W×H) |
|
Outline Dimension |
235 × 143 × 4.9 mm (W×H×T) |
|
Weight |
~180 g (Typ.) |
|
Mounting |
Side mounting holes (4‑M3) |
| Electrical |
Signal Interface |
LVDS (1 ch, 6/8‑bit), 40‑pin connector |
|
Backlight |
WLED (with driver), Lifetime ≥ 50,000 hrs |
|
Supply Voltage |
3.3V (Typ.) |
|
Power Consumption |
3.83 W (Max., Logic + Backlight) |
|
Input Current |
140/160 mA (Typ./Max.) |
| Environmental |
Operating Temp |
−30°C ~ +80°C |
|
Storage Temp |
−30°C ~ +80°C |
|
Vibration |
1.5G (14.7 m/s²) |
|
Compliance |
RoHS |
G101STN01.C is a 10.1‑inch high‑brightness, wide‑temperature industrial TFT‑LCD module optimized for harsh embedded and outdoor environments. Key applications include:
- Industrial Control & Automation: Factory HMI, PLC touch panels, industrial PCs, and process monitoring displays.
- In‑Vehicle Displays: Commercial vehicle dashboards, fleet management terminals, and automotive infotainment systems.
- Outdoor & Rugged Devices: Handheld industrial terminals, outdoor kiosks, and rugged tablets.
- Medical & Test Equipment: Portable diagnostic tools, non‑critical patient monitors, and laboratory measurement displays.
- Smart Building & IoT: Building automation panels, security system interfaces, and smart home control centers.
- Specialized Displays: Marine electronics, agricultural machinery interfaces, and industrial digital signage.
It is widely selected for its −30°C to +80°C operating range, 500 cd/m² high brightness, antiglare surface, and long‑life WLED backlight, making it ideal for demanding industrial and mobile scenarios.
