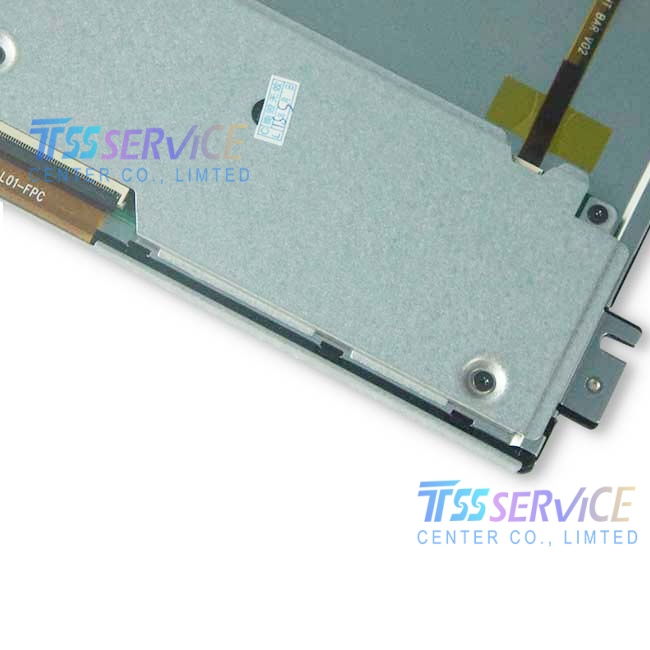

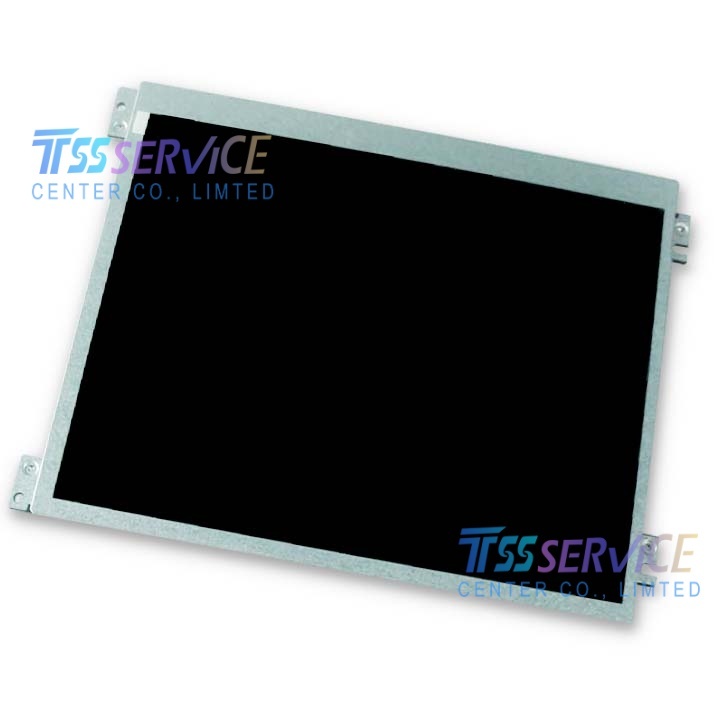

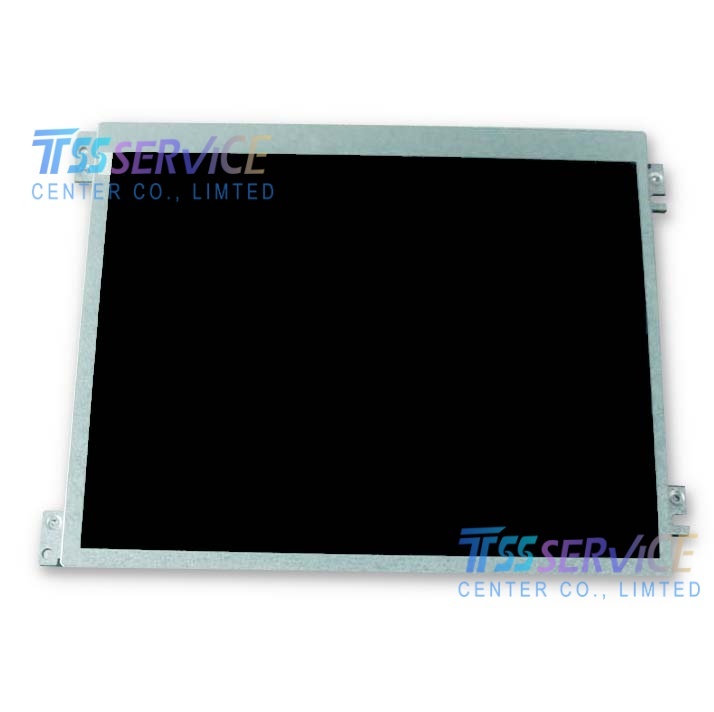

Innolux G104S1-L01 REV.C3 10.4 inch 800×600 LCD Display Screen For Industrial

Name: Innolux G104S1-L01 REV.C3 10.4 inch 800×600 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G104S1-L01 REV.C3
Price: 90 USD
Availability: InStock

SKU: G104S1-L01 REV.C3

Model P/N: G104S1-L01 REV.C3
Diagonal Size: 10.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA 96PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$95.00~~ $90.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Innolux G104S1-L01 REV.C3 10.4 inch 800×600 LCD Display Screen For Industrial

Parameter	Specification	Unit
Manufacturer	Innolux (Chi Mei)	-
Model Number	G104S1-L01 REV.C3	-
Panel Type	a-Si TFT-LCD, TN, Normally White, Transmissive	-
Diagonal Size	10.4	inch
Resolution	800 (H) × 600 (V)	pixels (SVGA)
Pixel Pitch	0.264 × 0.264	mm
Pixel Arrangement	RGB Vertical Stripe	-
Active Area	211.2 (H) × 158.4 (V)	mm
Outline Dimensions	243.0 (H) × 184.0 (V) × 7.0 (D)	mm
Weight	355 (Typ.)	g
Surface Treatment	Anti-glare (AG), Hard Coating (3H)	-
Brightness	400	cd/m² (Typ.)
Contrast Ratio	700:1	(Typ.)
Response Time	5.0 (Tr) / 11.0 (Td)	ms (Typ.)
Viewing Angle	80/80/70/70	(U/D/L/R, Typ., CR≥10)
Color Depth	6-bit + FRC	262K / 16.2M colors
Color Gamut	53%	NTSC (Typ.)
Backlight	WLED (Bottom-edge), Built-in Driver, 30K hrs lifetime	-
Interface	LVDS (1 ch, 6/8-bit), 20 pins	-
Input Voltage	Panel: 3.3V; Backlight: 12.0±5.0V	V
Power Consumption	Panel: 2.0W (Typ.); Backlight: 3.0W (Typ.)	W
Operating Temp.	-20 ~ +70	°C
Storage Temp.	-40 ~ +80	°C
Vibration Resistance	1.5G	-
Compliance	RoHS	-

Specific Applications

Industrial HMI & Control Panels: Factory automation, PLC interfaces, and machinery control systems requiring wide temperature tolerance and vibration resistance.
Industrial Panel PCs & Embedded Displays: Integrated into fanless industrial computers and rugged embedded systems.
Medical & Laboratory Instruments: Monitors for diagnostic equipment and analytical devices needing stable, clear imaging.
Vehicle-Mounted & Mobile Terminals: In-vehicle infotainment, fleet management displays, and rugged mobile data terminals (MDTs).
Amusement & Gaming Machines: Arcade game consoles and slot machine displays with reliable performance.
POS & Kiosk Displays: Retail point-of-sale systems and public information kiosks.
Marine & Outdoor Equipment: Navigation displays and outdoor industrial terminals with anti-glare coating.
