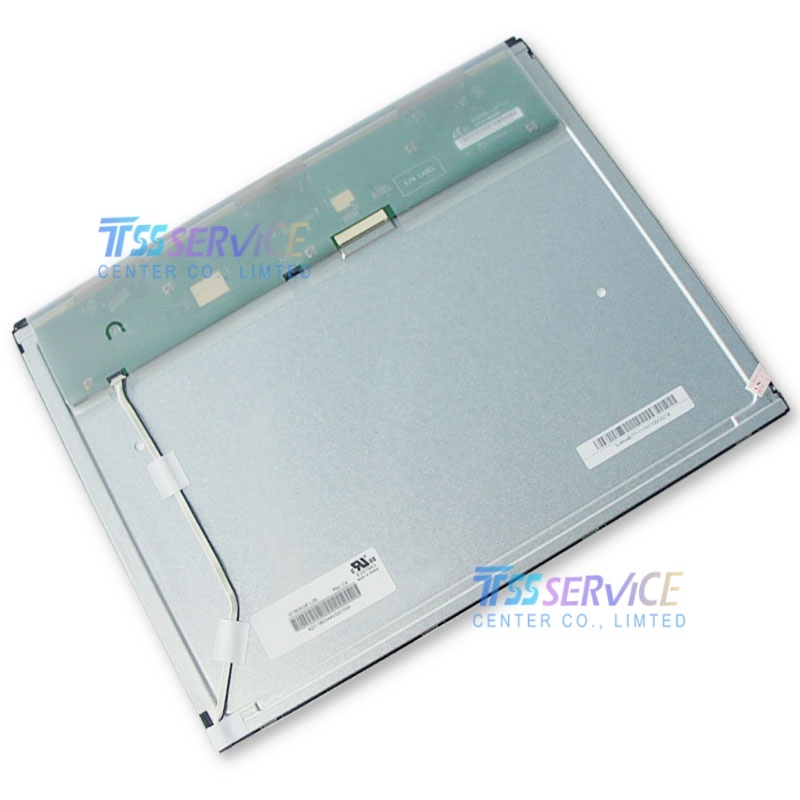

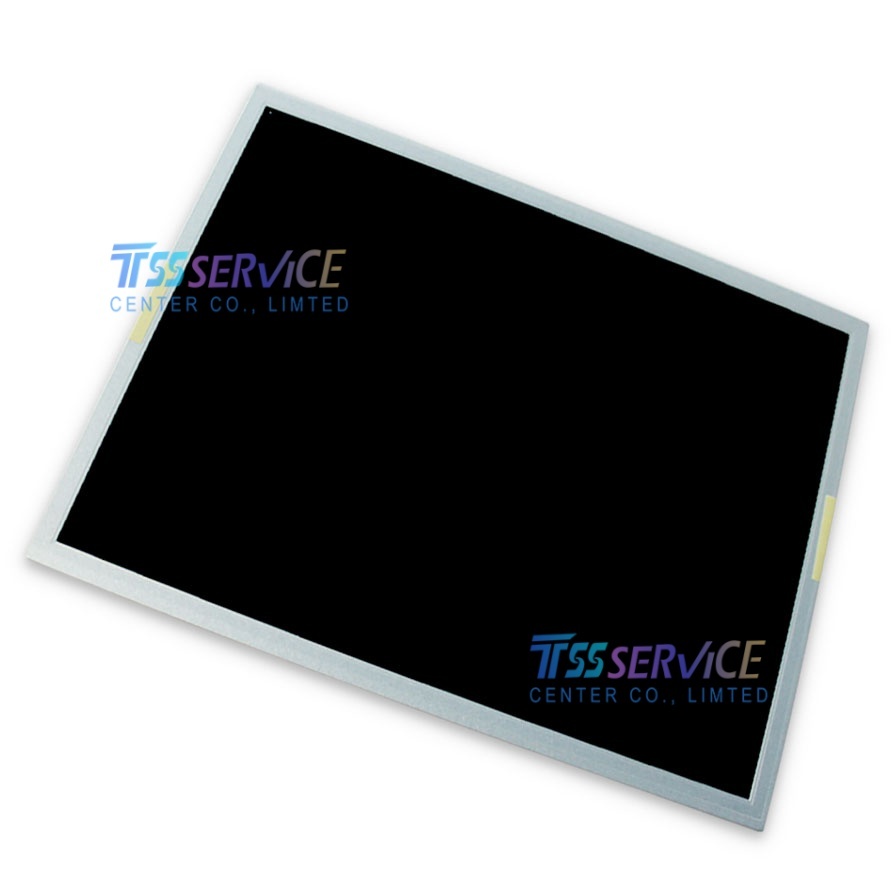

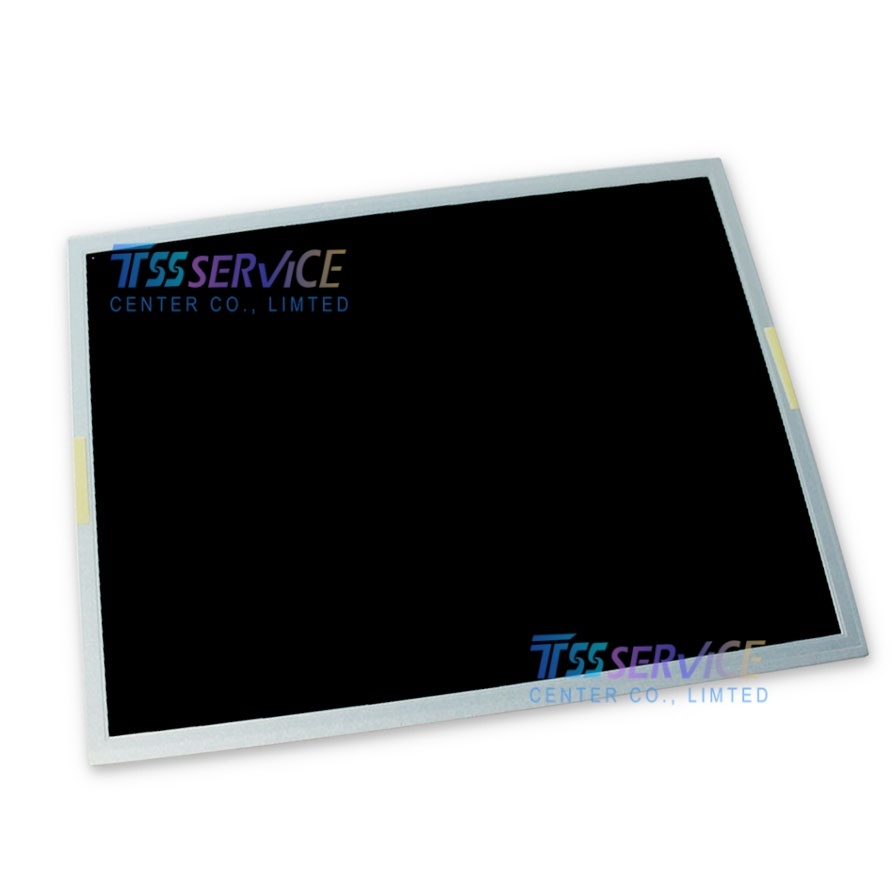

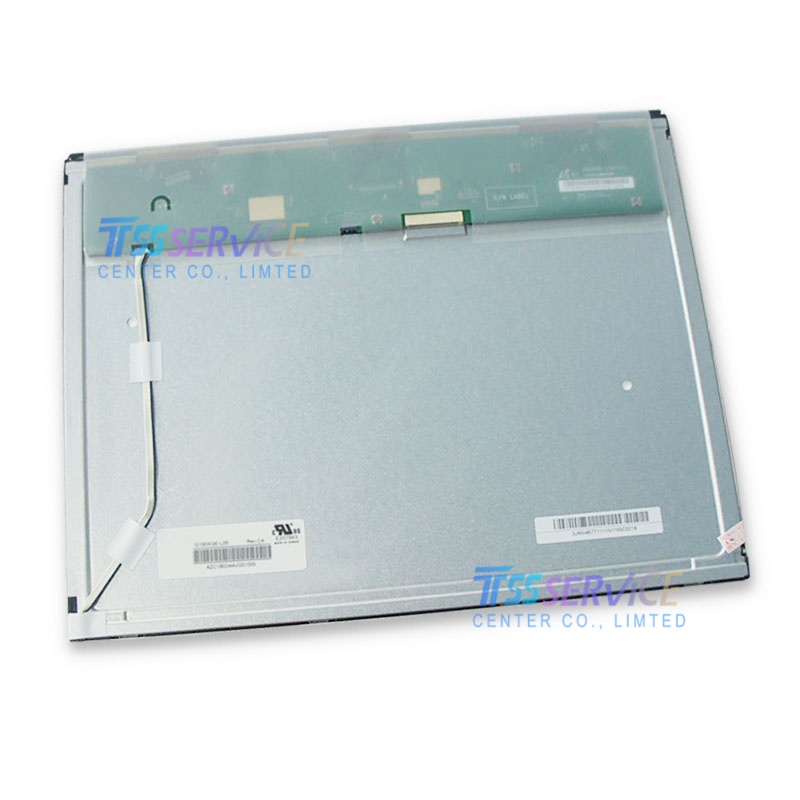

Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module

SKU: G150XGE-L06
Model: G150XGE-L06
Screen Size: 15.0 inches
Resolution: 1024 × 768 (XGA)
Display Mode: TN, Normally White, Transmissive
0.0 (0 Reviews)
0 Sold
$99.00 $87.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
  • Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
  • Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
  • Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
  • Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
  • Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
  • Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
  • Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
1/1
  • Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
  • Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
  • Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
  • Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
  • Description
Innolux G150XGE-L06 15" XGA TFT LCD Panel 1024x768 Industrial Display Module
Parameter Details
Brand Innolux (Chimei)
Model G150XGE-L06
Screen Size 15.0 inches
Resolution 1024 × 768 (XGA)
Display Mode TN, Normally White, Transmissive
Brightness 250 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.)
Viewing Angle 45°/45°/25°/45° (L/R/U/D, CR≥10)
Color Depth 262K / 16.2M Colors (6-bit + FRC)
Color Gamut 60% NTSC
Backlight WLED, 30,000 hrs lifetime, with driver
Interface LVDS (20-pin, 1ch, 6/8-bit)
Input Voltage 3.3V (Typ.)
Outline Dimensions 326.5 × 253.5 × 12.06 mm
Active Area 304.1 × 228.1 mm
Surface Treatment Anti-glare Matte, Hard Coating (3H)
Operating Temperature -20°C ~ 70°C
Storage Temperature -30°C ~ 70°C
Weight 1.04/1.09Kgs (Typ./Max.)
Compliance RoHS

Applications

  • Industrial HMI & Control Panels: Factory automation, PLC, CNC machinery.
  • Industrial Monitors & Displays: Factory floor terminals, equipment interfaces.
  • Kiosks & POS Terminals: Indoor self-service and retail display systems.
  • Medical Equipment: Non-critical diagnostic and monitoring devices.
  • Light Outdoor & Transportation: Indoor signage, cabin displays.
