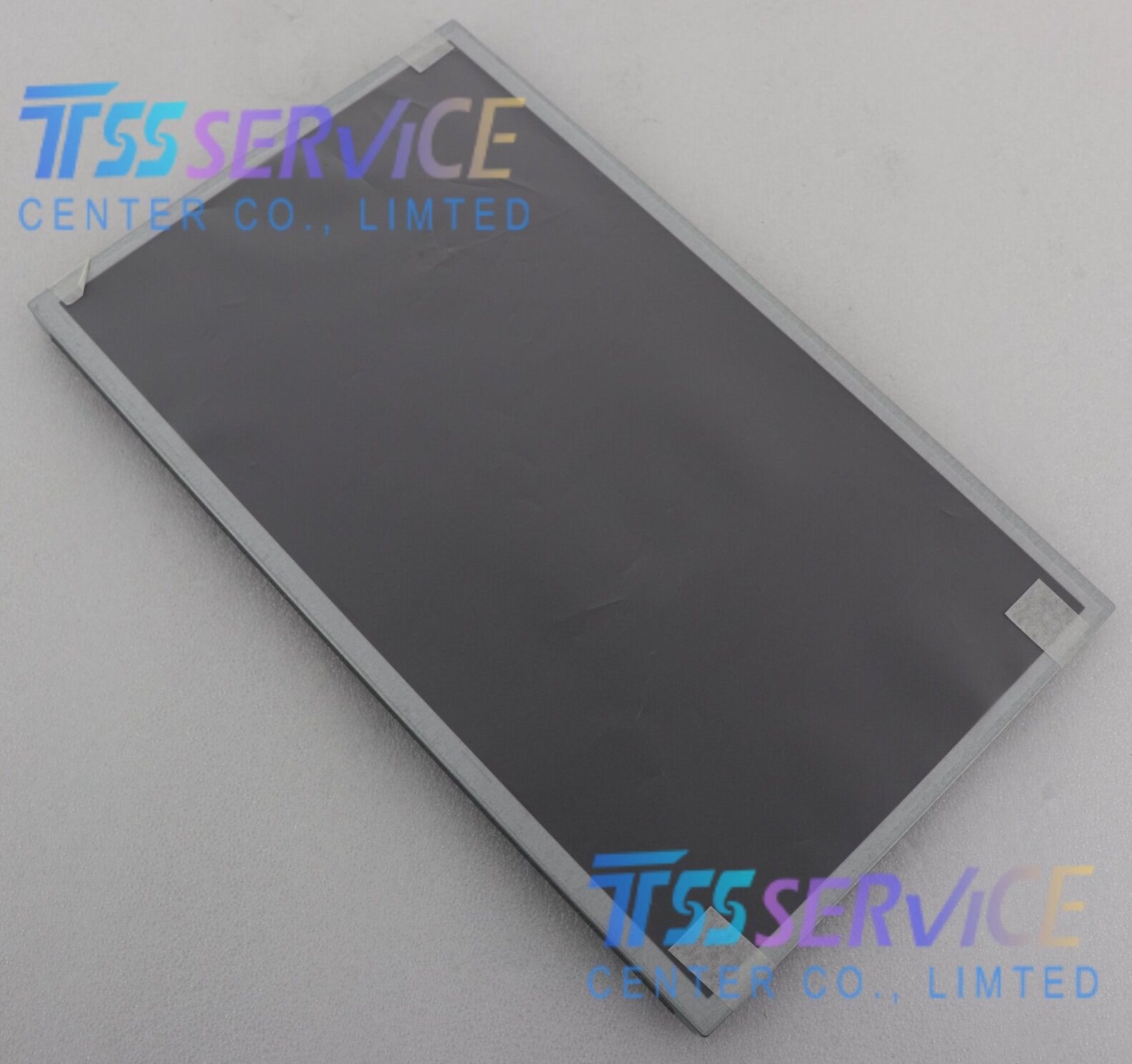

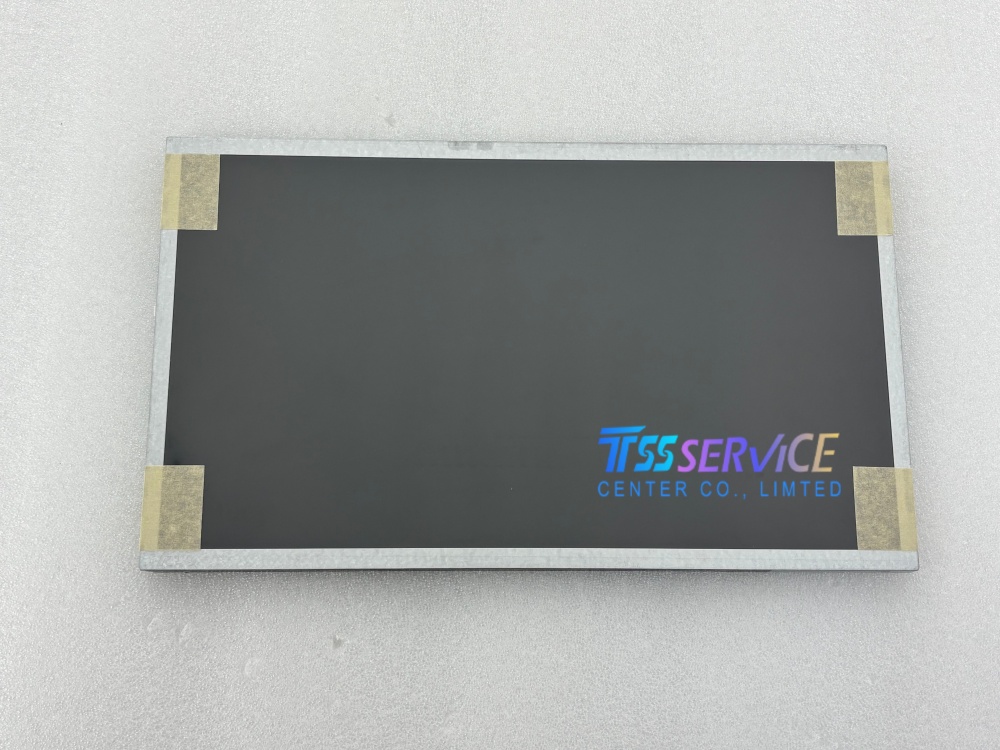

AUO G156XTN02.1 15.6 inch 1366×768 LCD Dispaly Panel for industrial
| Parameter |
Details |
| Diagonal Size |
15.6 inches |
| Resolution |
1366 (RGB) × 768 (WXGA), 16:9 aspect ratio |
| Pixel Configuration |
RGB Vertical Stripe |
| Display Mode |
TN, Normally White, Transmissive |
| Active Area (AA) |
344.23 × 193.54 mm (W×H) |
| Outline Dimensions |
359.5 × 223.8 × 3.3 mm (W×H×T) |
| Surface Treatment |
Anti-glare (Matte), Hard coating (3H) |
| Brightness (Typ.) |
280 cd/m² |
| Contrast Ratio (Typ.) |
600:1 (Transmissive) |
| Color Depth |
262K Colors (6-bit) |
| Color Gamut |
45% (NTSC CIE1931) |
| Response Time (Typ.) |
8 ms (Tr+Td) |
| Viewing Angle (CR≥10) |
70° (U), 70° (D), 35° (L), 45° (R) (6 o'clock direction) |
| Backlight |
WLED (White LED), Edge-type, 15,000 hours lifespan |
| Signal Interface |
eDP 1.2 (1 Lane), 30 pins connector |
| Input Voltage |
3.3V |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
-20°C ~ +60°C |
| Weight |
380 g (Max.) |
| RoHS Compliance |
Yes |
| Production Status |
Discontinued |
G156XTN02.1 is a 15.6-inch TN-type LCD module featuring a slim design (3.3mm thickness) and eDP interface. It is primarily designed for cost-sensitive industrial and commercial applications requiring a standard HD display:
- Industrial Panel PCs & HMI: Compact human-machine interfaces and factory control computers.
- Industrial Automation Equipment: Monitoring screens for machinery, PLCs, and assembly lines.
- Test & Measurement Instruments: Benchtop diagnostic tools and data acquisition systems.
- All-in-One (AIO) PCs & Monitors: Entry-level desktop displays and integrated computer systems.
- POS Terminals & Kiosks: Retail self-service machines and point-of-sale systems.
- Gaming Machines & Amusement Devices: Slot machines and arcade game displays.
- Bedside Monitors & Diagnostic Equipment: Standard displays for non-critical medical devices.
- Laboratory Analysis Instruments: Data readouts for scientific and lab equipment.
- Vehicle Mounted Terminals: In-vehicle computers for logistics and fleet management.
- Marine & Outdoor Displays: Control panels for small vessels and outdoor industrial controls.
- Smart Home & Building Automation: Central control interfaces and security monitoring screens.
