1. Display Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Display Type | High-contrast LCD (Monochrome) | |
| Display Size | 4.6 inches | |
| Resolution | 300 × 100 pixels | High precision display -7 |
| Brightness | 500 cd/m² | High brightness for clear visibility -7 |
| Contrast | High contrast ratio | LCD manufacturer provided value -7 |
| Display Data | 16-level grayscale display | Clear image data representation -7 |

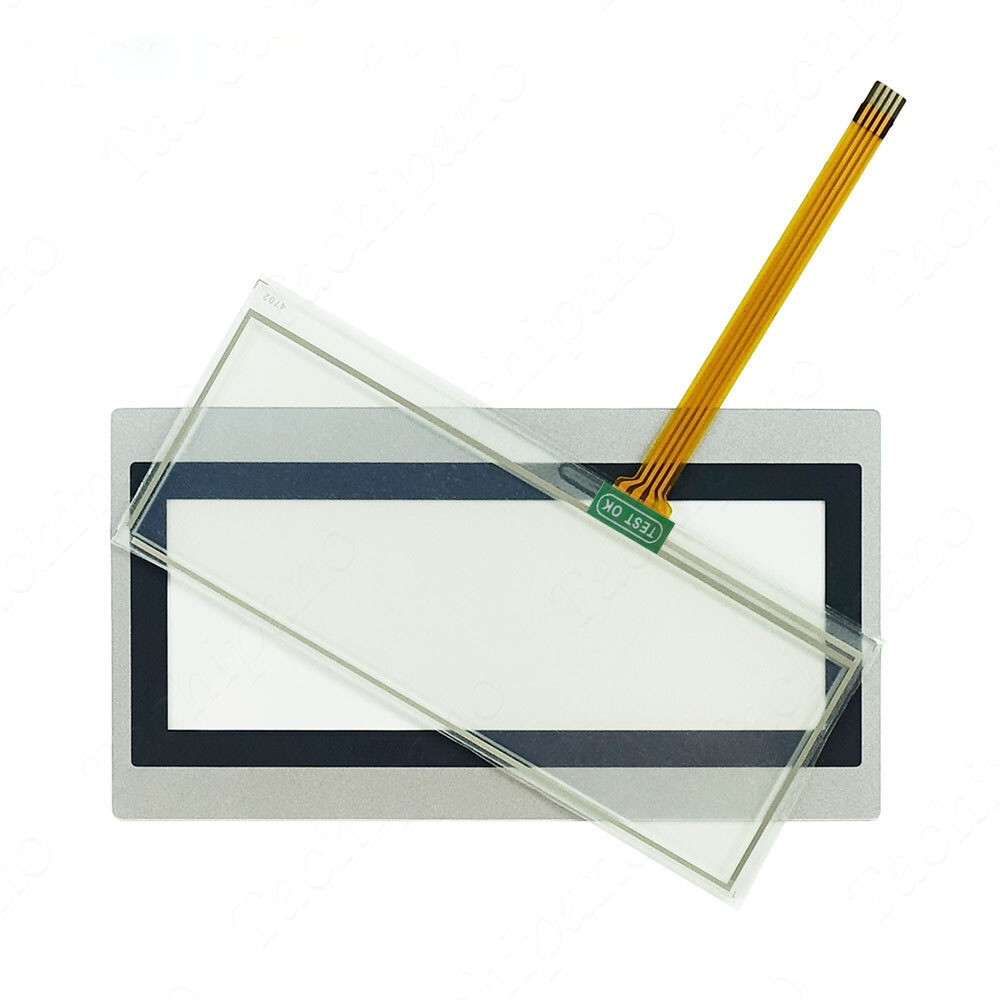

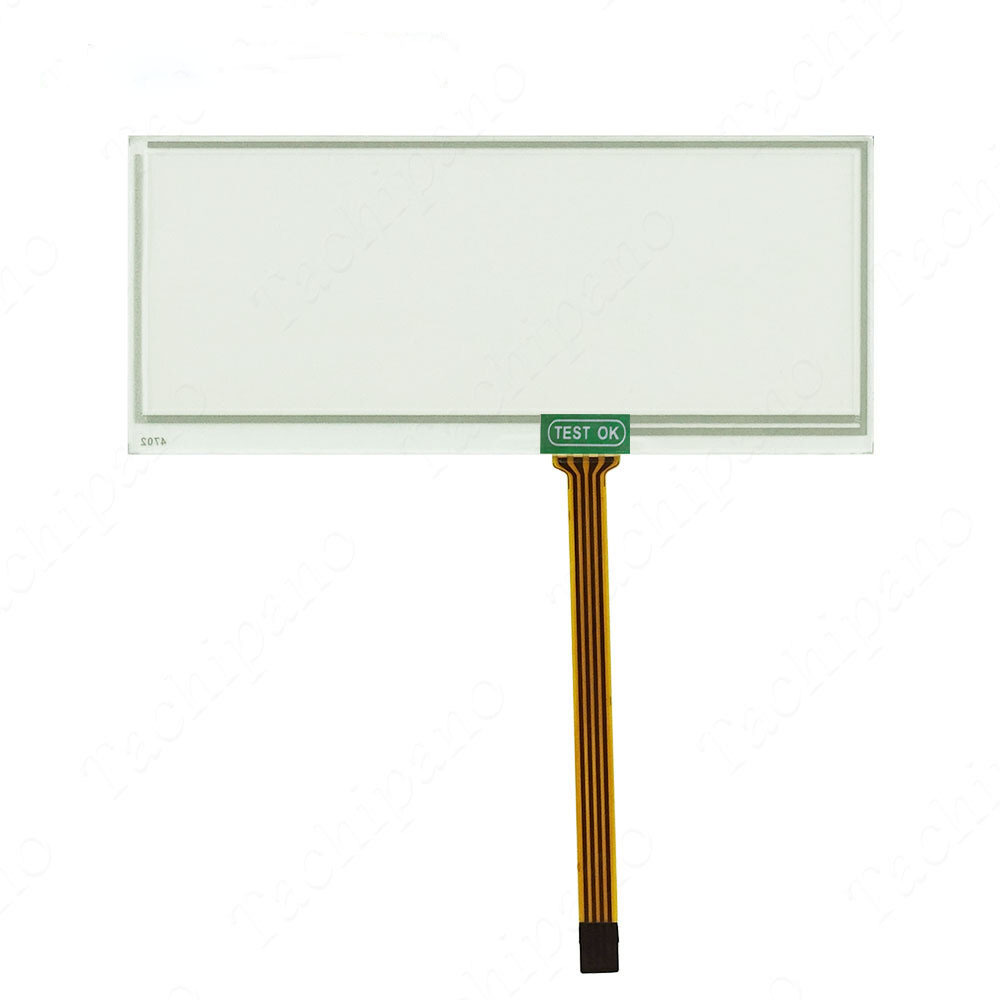

| Screen Type | Analog Resistive Touch Film | Allows free switch configuration -5-7 |
2. Physical Specifications
3. Interface & Communication
4. Environmental Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Operating Temperature | 0°C to 50°C | -5 |
| Storage Temperature | -20°C to 60°C | -5 |
| Storage Humidity | 10 to 90% RH | Non-condensing -5 |
| Degree of Protection | IP65 (Front panel) | Dust-tight and protected against water jets -5 |
| Corrosion Immunity | Free from corrosive gases | -5 |
| Certifications | UL, c-UL certified (except silver models) | Compliant with EN standards -7 |
5. Battery & Backup Features
6. Software & Programming
| Feature | Description | |
|---|---|---|
| Screen Design Software | Wind O/I-NV2 | Simple screen design and configuration -7 |
| Font Support | Windows fonts displayable | -7 |
| CPU | High-speed CPU | Responsive operation and display -7 |
| Data Compatibility | Compatible with HG2F/3F/4F/2S series data | Screen data can be shared across models -7 |
| Language Support | Global language support | English, Chinese, Korean, Central European languages, etc. -7 |
7. Functional Capabilities
| Function | Description |
|---|---|
| Operation Modes | Hierarchical menu structure with multiple modes including AUTO mode, MANUAL mode, FAULT mode, SETUP mode, and MONITOR mode -6 |
| Switch Functions | Touch screen provides programmable switch functions -6 |
| Lamp Functions | Indicator functions available on screen -6 |
| Character Display | Text display for parameters and messages -6 |
| Screen Change | Multiple screens with navigation capability -6 |
| Fault Functions | Fault view, fault record view, and fault reset functions -4 |
| Counter Setup | Various timer and counter configuration functions -4 |
| User-defined Communication | Connect to barcode readers and other peripheral devices -7 |
8. Typical Applications
| Industry / Equipment | Application |
|---|---|
| Nitto Seiko FEEDMAT FM5000 Series | Operation panel for multi-spindle automatic screwdriving machines, providing control screens for fastening tools -3-4-6 |
| Industrial Automation | General-purpose HMI for machine control and operator interface |
| Manufacturing Equipment | Control and monitoring of production machinery |
