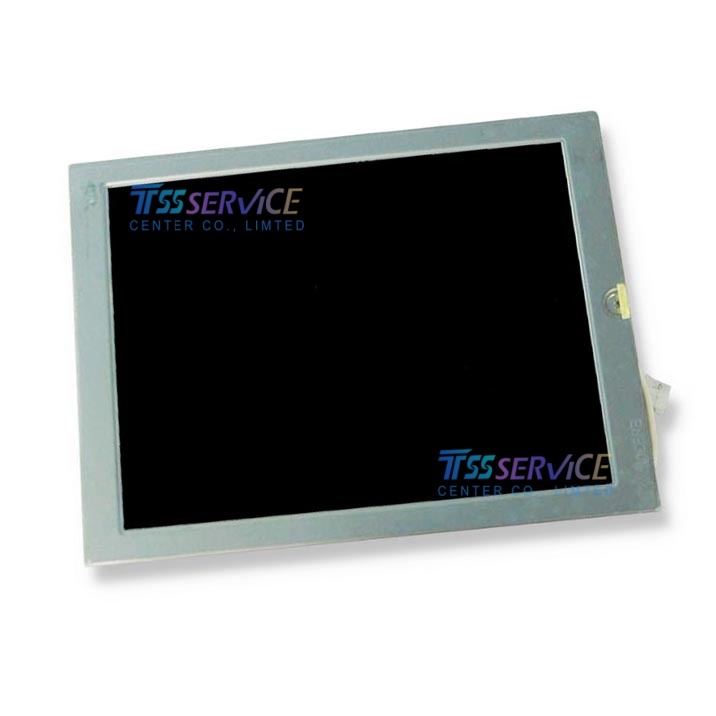

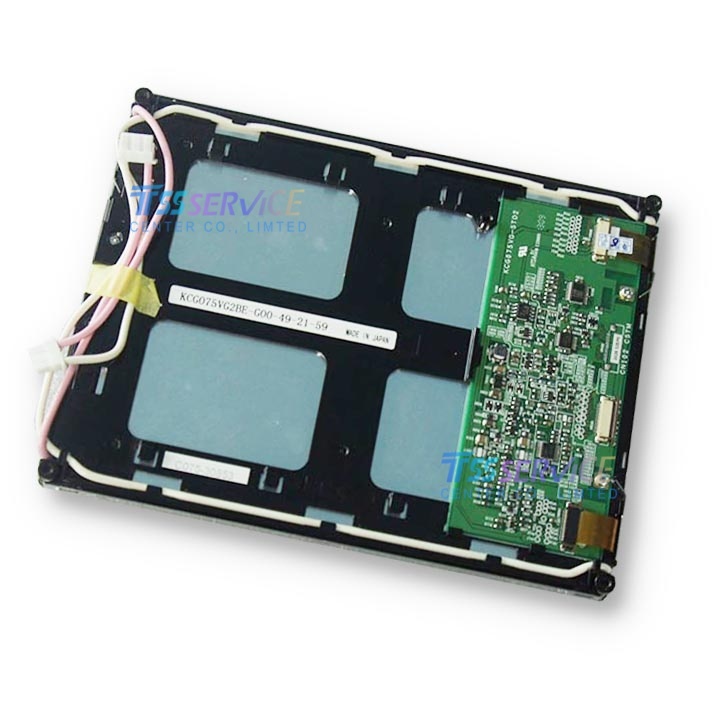

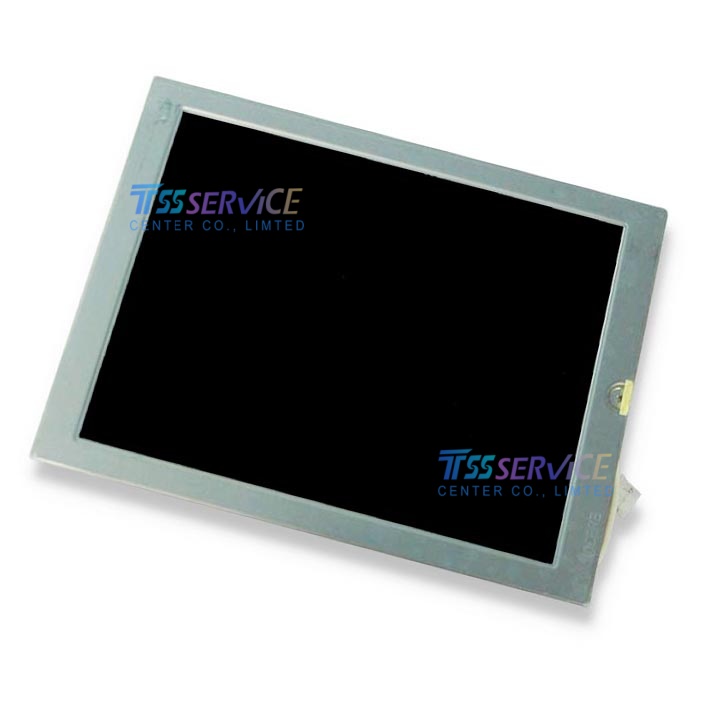

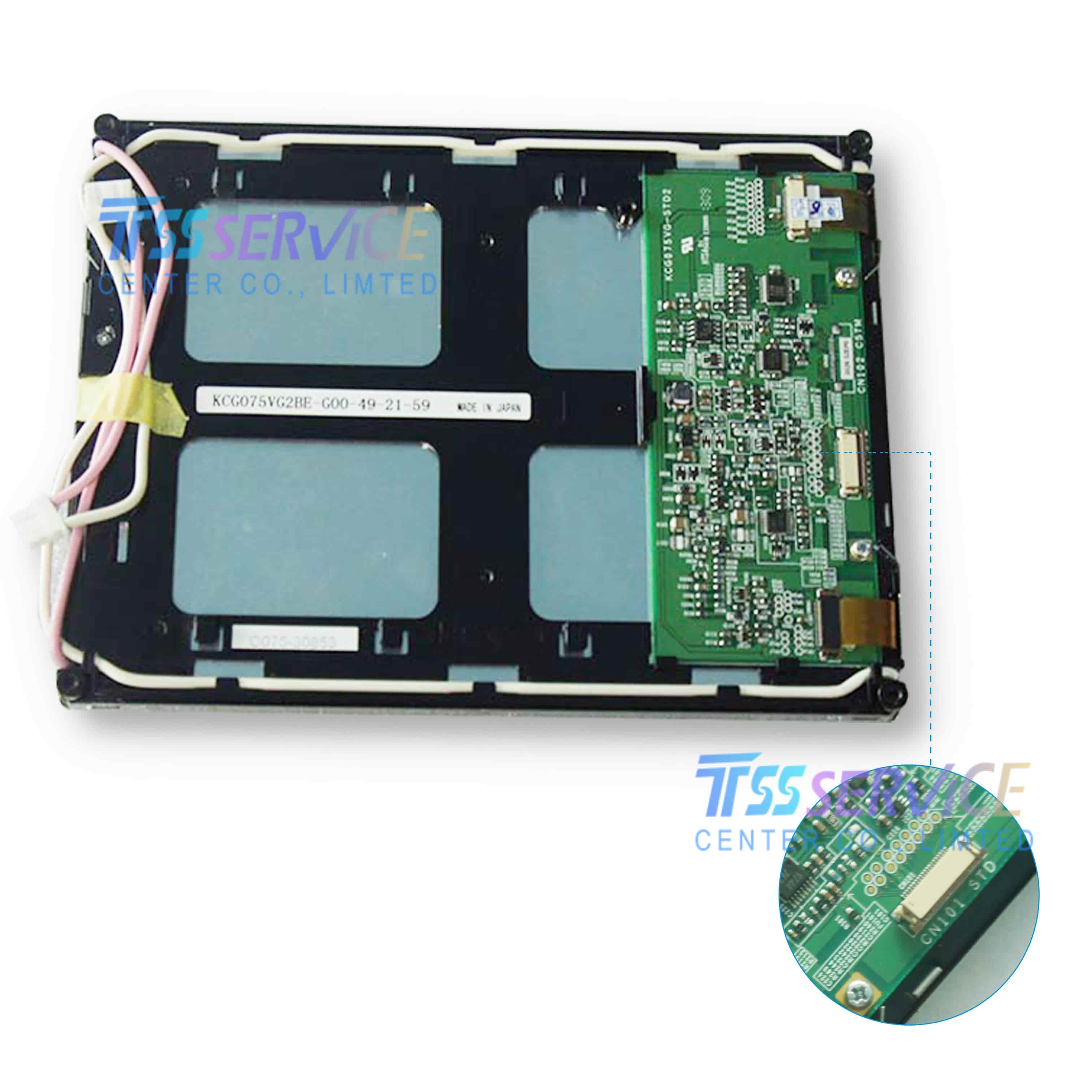

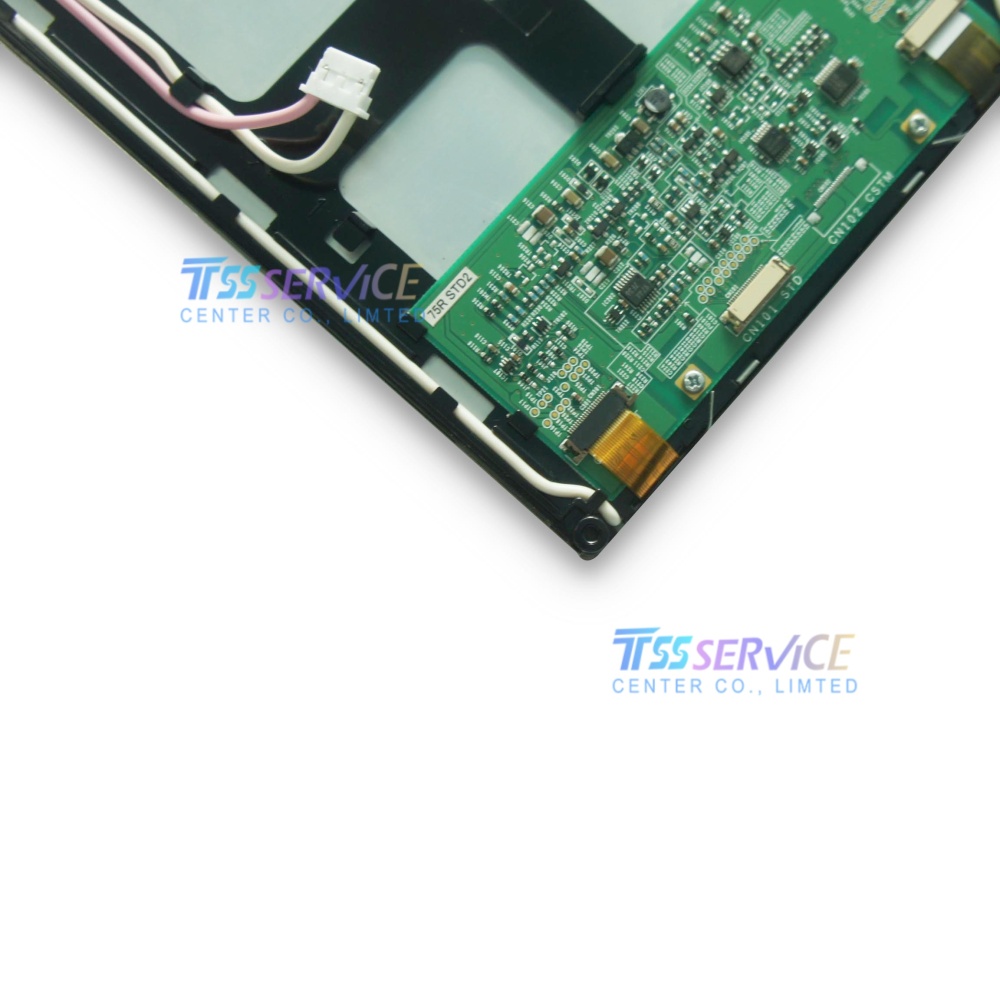

KCG075VG2BE-G00 Kyocera 7.5 inch 640×480 LCD Display Panel Screen For Industrial

Name: KCG075VG2BE-G00 Kyocera 7.5 inch 640×480 LCD Display Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KCG075VG2BE-G00
Price: 190 USD
Availability: InStock

SKU: KCG075VG2BE-G00

Model P/N: KCG075VG2BE-G00
Diagonal Size: 7.5"
Panel Type: CSTN-LCD, LCM
Pixel Number: 640(RGB)×480, 4:3, VGA
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$192.00~~ $190.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

KCG075VG2BE-G00 Kyocera 7.5 inch 640×480 LCD Display Panel Screen For Industrial

Parameter	Specification
Model	KCG075VG2BE-G00
Manufacturer	Kyocera
Panel Type	CSTN-LCD, LCM; Transmissive, Color (Normally Black)
Size	7.5-inch (4:3 Aspect Ratio)
Resolution	640 × 480 (VGA), 107 PPI
Pixel Format	RGB Vertical Stripe
Active Area	151.68 × 113.76 mm
Pixel Pitch	0.237 × 0.237 mm
Brightness	200 cd/m² (Typ.)
Contrast Ratio	30:1 (Typ.)
Viewing Angle	40/40/20/40 (Typ.) (CR ≥ 2)
Response Time	270/280 ms (Tr/Td)
Backlight	2 × CCFL (Cold Cathode Fluorescent Lamp), ~58K hours lifespan
Interface	Parallel Data (1ch, 8-bit), 20-pin Connector
Operating Voltage	5.0V (Typ.)
Operating Temp.	0°C ~ +60°C
Storage Temp.	-20°C ~ +60°C
RoHS Compliance	Yes
Outline Size	184 × 139.8 × 13.2 mm
Weight	~400g (Typ.)

Applications

Industrial Control Panels
Used in PLCs, industrial PCs, and automation equipment for status monitoring.
Medical Equipment
Integrated into patient monitors, diagnostic devices, and portable medical instruments.
Instrumentation & Meters
Used in industrial meters, pressure gauges, and analytical instruments.
Embedded Systems
Ideal for low-power embedded systems and industrial IoT terminals.
