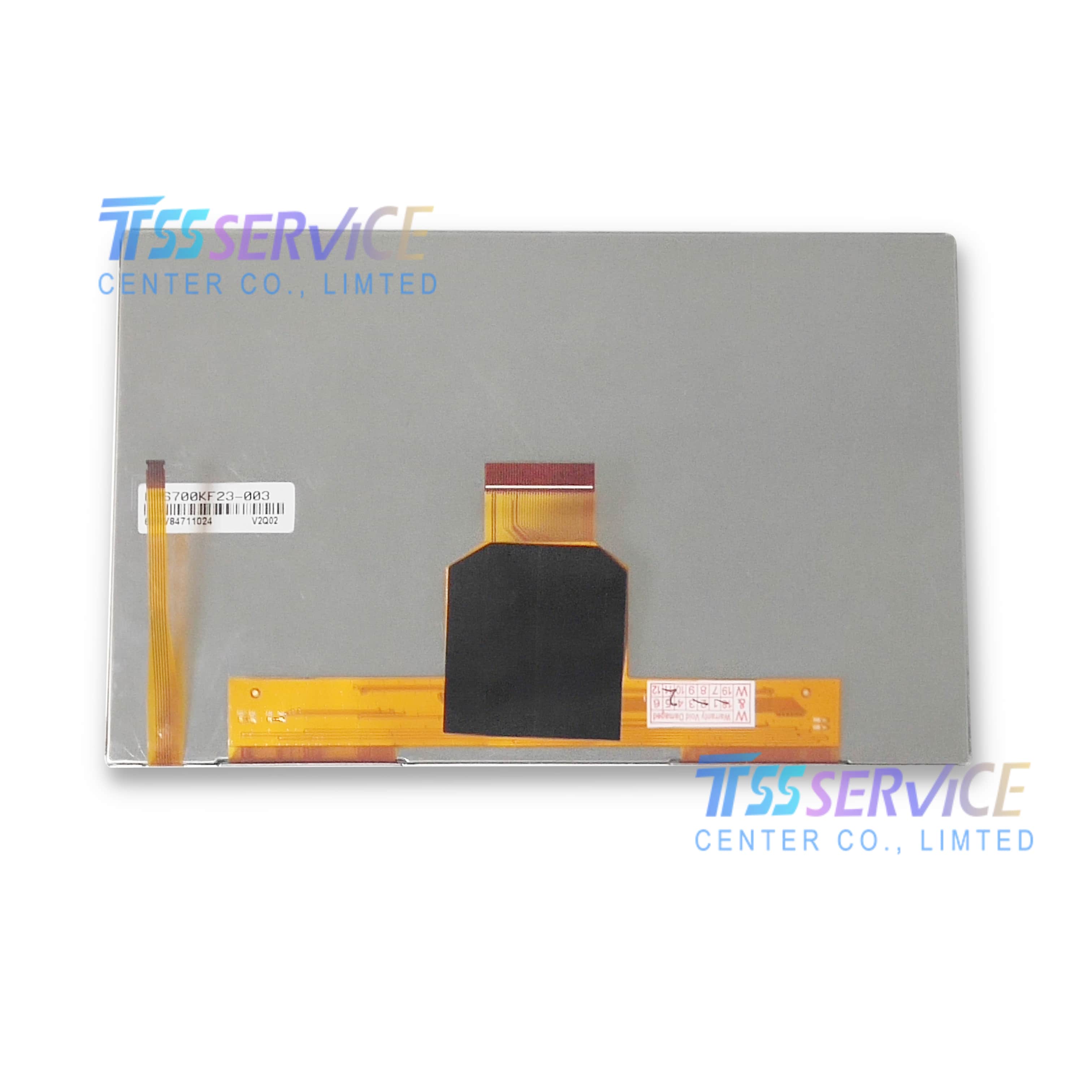

LMS700KF23 7.0 inch 800(RGB)×480 TFT lcd screen in stock

SKU: LMS700KF23
Model P/N : LMS700KF23
Diagonal Size: 7.0"
Panel Type: a-Si TFT-LCD,
Resolution :800(RGB)×480, WVGA  133PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$40.00 $35.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LMS700KF23
  • LMS700KF23
  • LMS700KF23
  • LMS700KF23
  • LMS700KF23
  • LMS700KF23
  • LMS700KF23
  • LMS700KF23
1/1
  • LMS700KF23
  • LMS700KF23
  • LMS700KF23
  • LMS700KF23
  • Description

The LMS700KF23 is a widely used 7.0-inch TFT-LCD module featuring a bright, reliable 800×480 WVGA display, suitable for industrial and commercial embedded applications. This panel is designed for systems requiring a compact screen with good readability and robust performance. It is currently in stock, enabling rapid prototyping and production integration.

Parameter Specification
Model LMS700KF23
Screen Size 7.0 inches (diagonally)
Active Area 152.4(W)×91.44(H) mm
Resolution 800 (RGB) × 480 pixels (WVGA)
Display Technology a-Si TFT LCD
Backlight LED
Interface

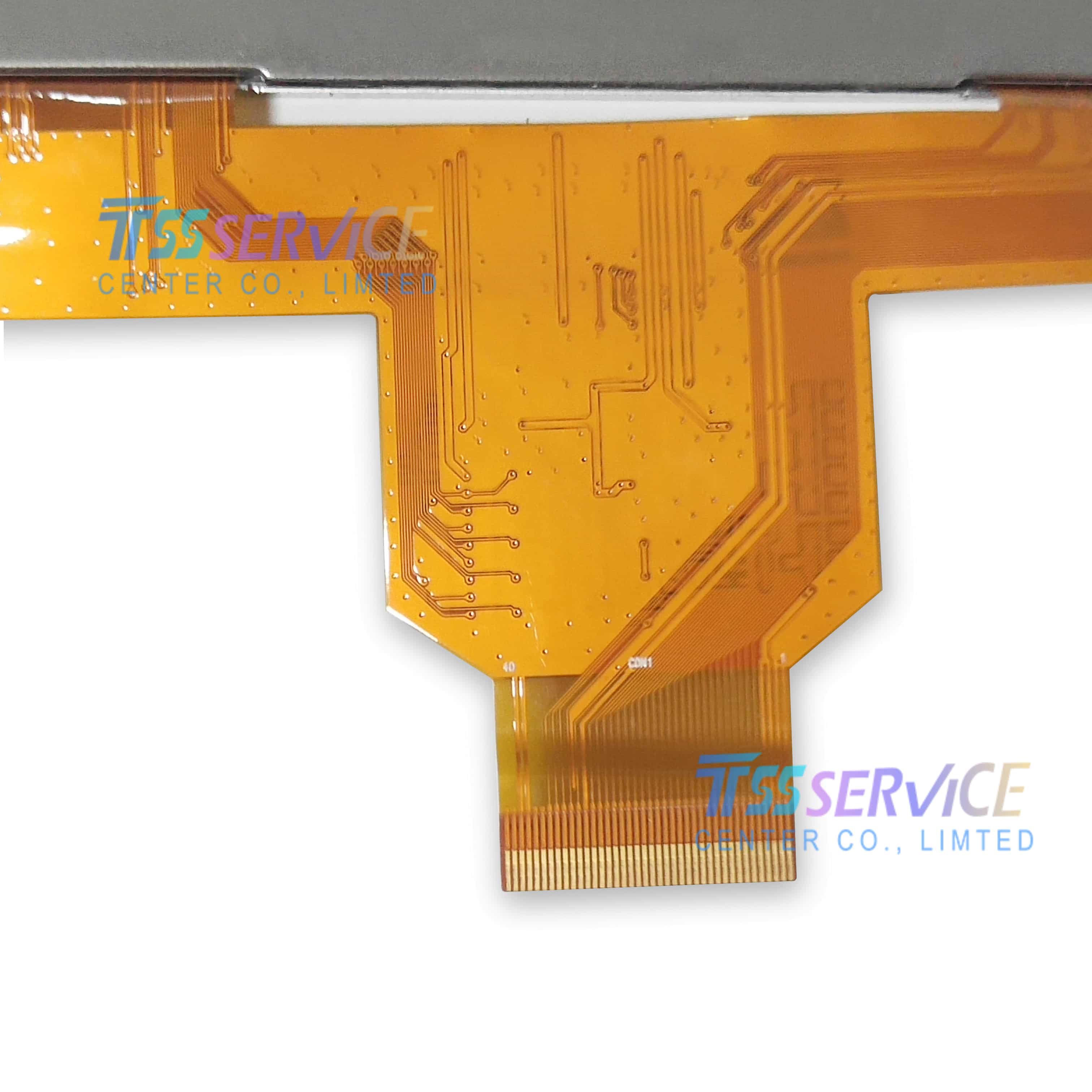

  • Parallel RGB (1 ch, 8-bit) , 40 pins FPC
Brightness (Typical) 350 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 70/70/70/70 (Typ.)(CR≥10)
Surface Anti-glare hard coating
Operating Temperature  -20°C to +70°C
