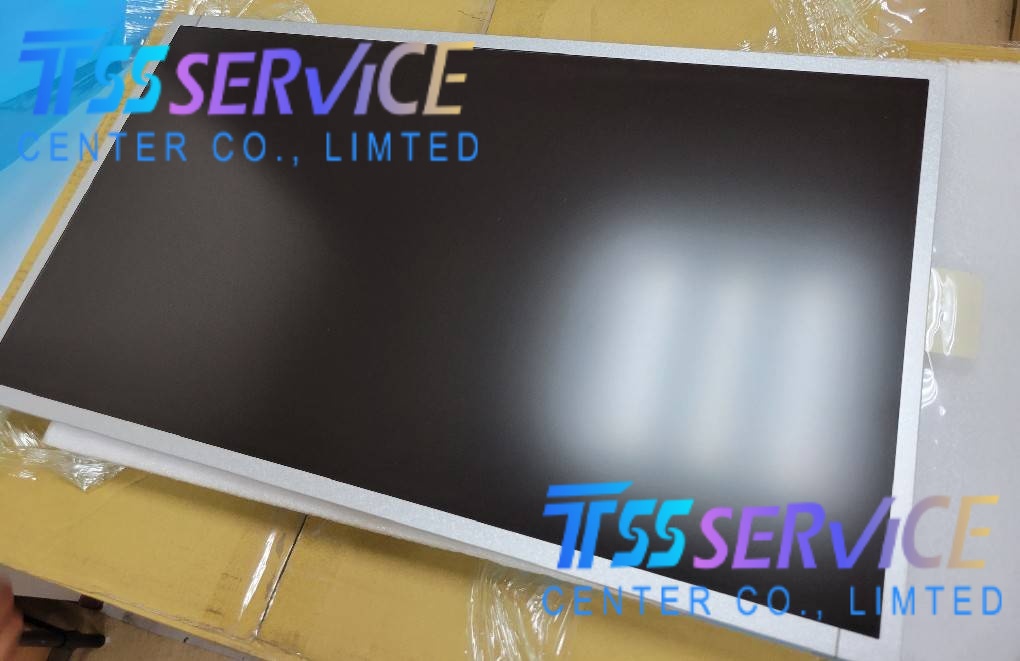

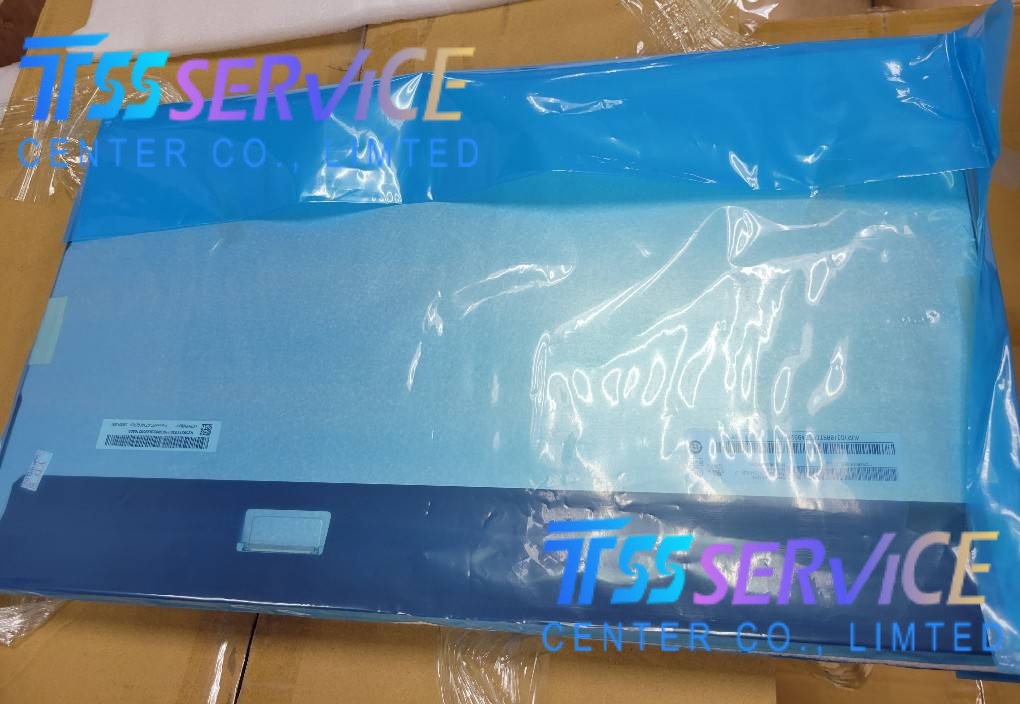

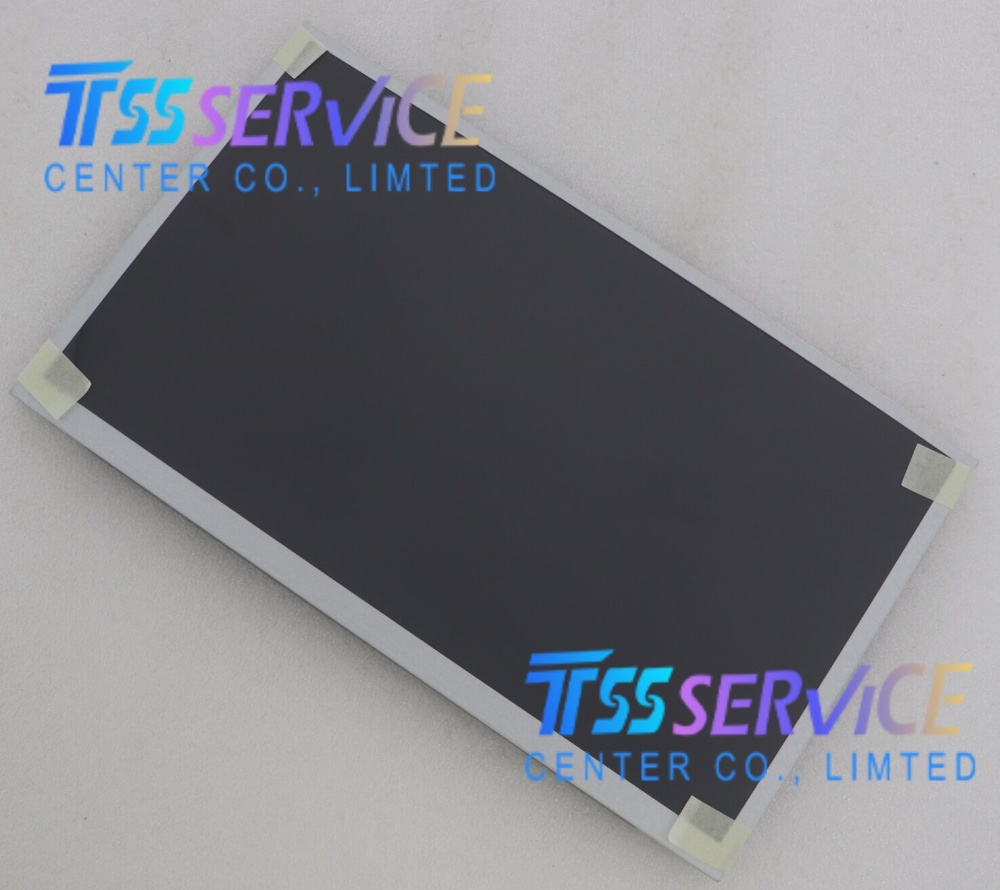

Model P/N: LM238WR2-SPE1
Diagonal Size: 23.8"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 3840(RGB)×2160, UHD 185PPI
Pixel Format: RGB Vertical Stripe
| Parameter | Specification |
|---|---|
| Model Number | LM238WR2-SPE1 (Part of LM238WR2 Series) |
| Manufacturer | LG Display |
| Screen Size | 23.8 inches |
| Display Type | a-Si TFT-LCD, IPS (In-Plane Switching), Transmissive |
| Resolution | 1920 (RGB) × 1080 pixels (Full HD / FHD) |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.2745 mm (H) × 0.2745 mm (V) |
| Color Depth | 16.7M colors (8-bit, often using FRC to simulate higher depth in some variants, but standard is 8-bit) |
| Color Gamut | Typically 72% NTSC / ~99% sRGB (Standard Color) |
| Interface Type | LVDS (Low-Voltage Differential Signaling), 2 channels, 8-bit per channel, 51-pin connector (Common for this series) |
| Backlight | WLED (White LED), Edge-Lit |
| Brightness | Typical 250 cd/m² (Some revisions up to 300 cd/m²) |
| Contrast Ratio | Typical 1000:1 (Static) |
| Viewing Angle | 89/89/89/89 (Left/Right/Up/Down) with CR ≥ 10 (True IPS wide view) |
| Response Time | Typical 5ms (Gray-to-Gray) or 14ms (Black-to-White) |
| Refresh Rate | 60 Hz |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
