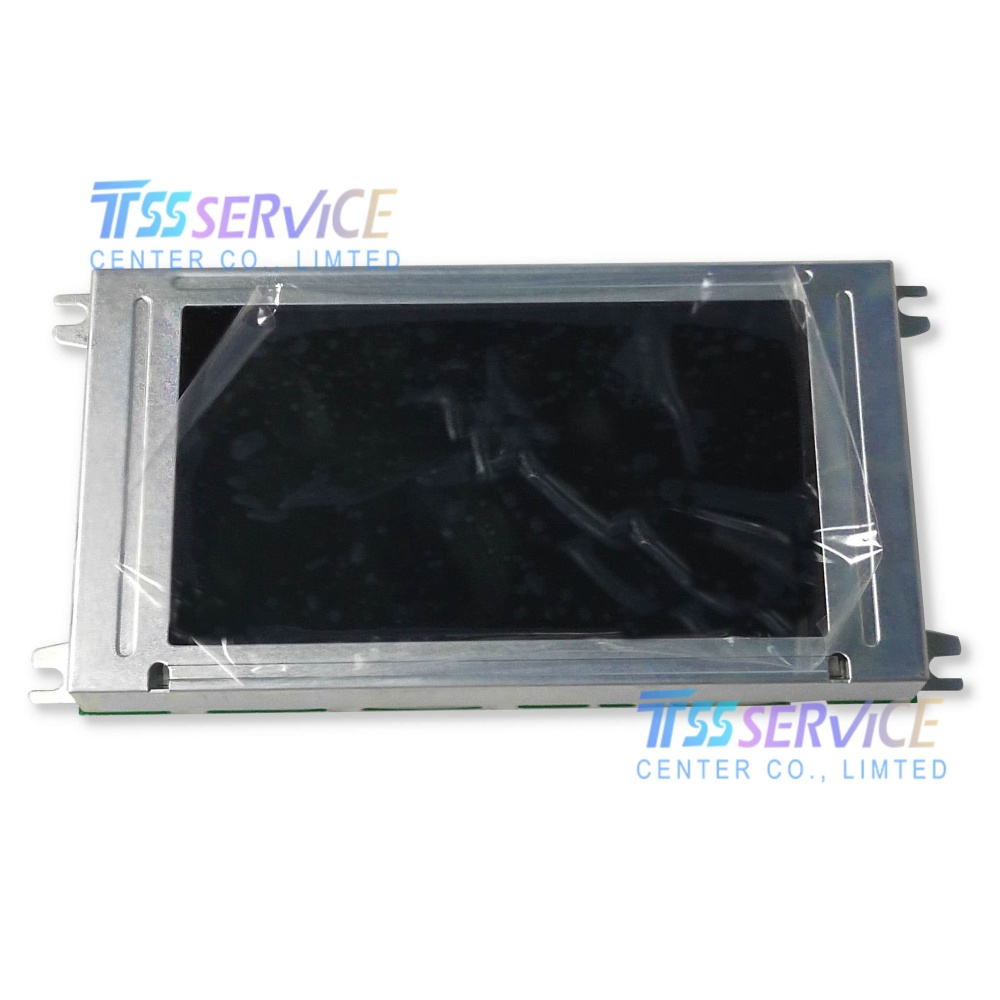

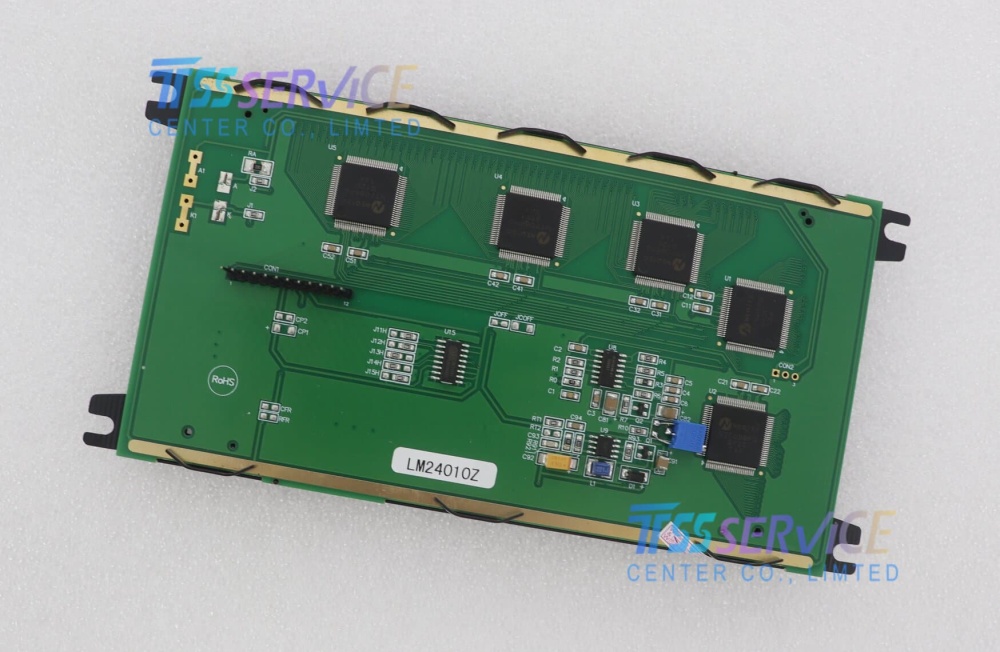

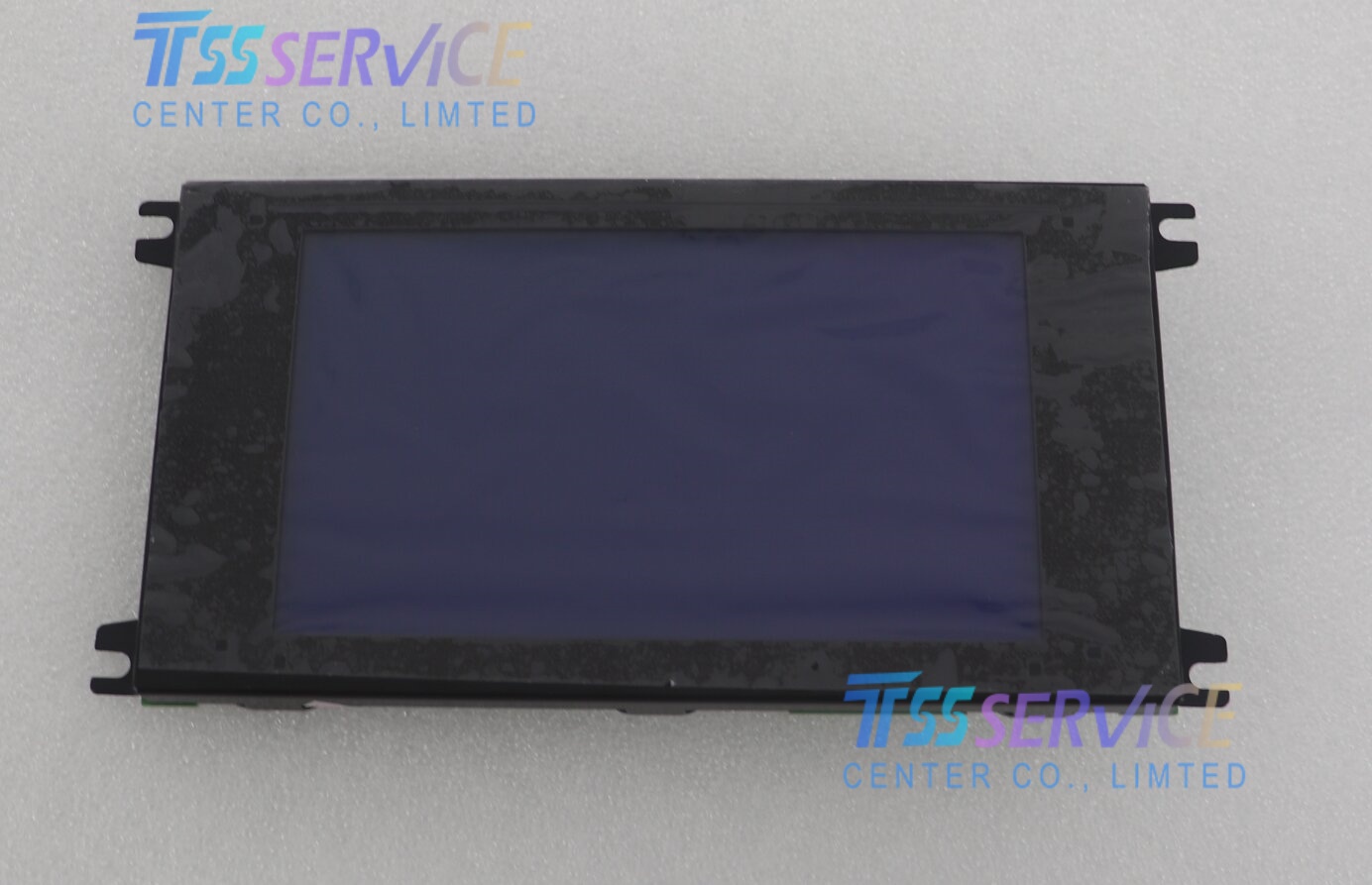

REPLACE LM24010Z 4.7" 320*240 FSTN-LCD FOR SHARP LCD Display Screen For Industrial

SKU: LM24010Z

Part no : LM24010Z
Brand :  SHARP
INCH :  4.7"

Resolution 320*240

LCD Panel for Industrial Machine

0.0 (0 Reviews)
0 Sold
$210.00 $200.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • REPLACE LM24010Z 4.7" 320*240 FSTN-LCD FOR SHARP LCD Display Screen For Industrial
  • REPLACE LM24010Z 4.7" 320*240 FSTN-LCD FOR SHARP LCD Display Screen For Industrial
  • REPLACE LM24010Z 4.7" 320*240 FSTN-LCD FOR SHARP LCD Display Screen For Industrial
  • REPLACE LM24010Z 4.7" 320*240 FSTN-LCD FOR SHARP LCD Display Screen For Industrial
1/1
  • REPLACE LM24010Z 4.7" 320*240 FSTN-LCD FOR SHARP LCD Display Screen For Industrial
  • REPLACE LM24010Z 4.7" 320*240 FSTN-LCD FOR SHARP LCD Display Screen For Industrial
  • Description
  1. LM24010Z

    LM24010Z is a 5.7‑inch monochrome DSTN‑LCD module manufactured by Sharp, featuring 240×128 resolution, 20:1 contrast ratio, parallel 4‑bit interface, and 5V supply. It is a rugged, low‑power display for legacy industrial HMI, embedded systems, and text‑based equipment
    Parameter Details
    Model LM24010Z
    Brand Sharp
    Display Size 5.7‑inch diagonal
    Resolution 240 × 128 pixels (47 PPI)
    Panel Type DSTN‑LCD, STN, Negative (Black/White), Transmissive
    Brightness Typical 100 cd/m² (no official spec)
    Contrast Ratio 20:1 (Typ., Transmission)
    Viewing Angle Not specified (narrow, typical STN)
    Display Colors Monochrome (1‑bit, Black/White)
    Backlight EL (Electroluminescent) or LED (option)
    Active Area 127.16 × 67.8 mm
    Outline Size 176 × 96 × 22 mm
    Interface Parallel (1 ch, 4‑bit), 12‑pin connector
    Input Voltage 5.0 V (Typ.)
    Refresh Rate 60 Hz (Typ.)
    Response Time Not specified (slow, typical STN)
    Surface Standard hard coating
    Operating Temperature 0 °C ~ +50 °C
    Storage Temperature -20 °C ~ +60 °C
    Weight Approx. 430 g
    Touch Panel None
    Compliance RoHS (legacy standard)
