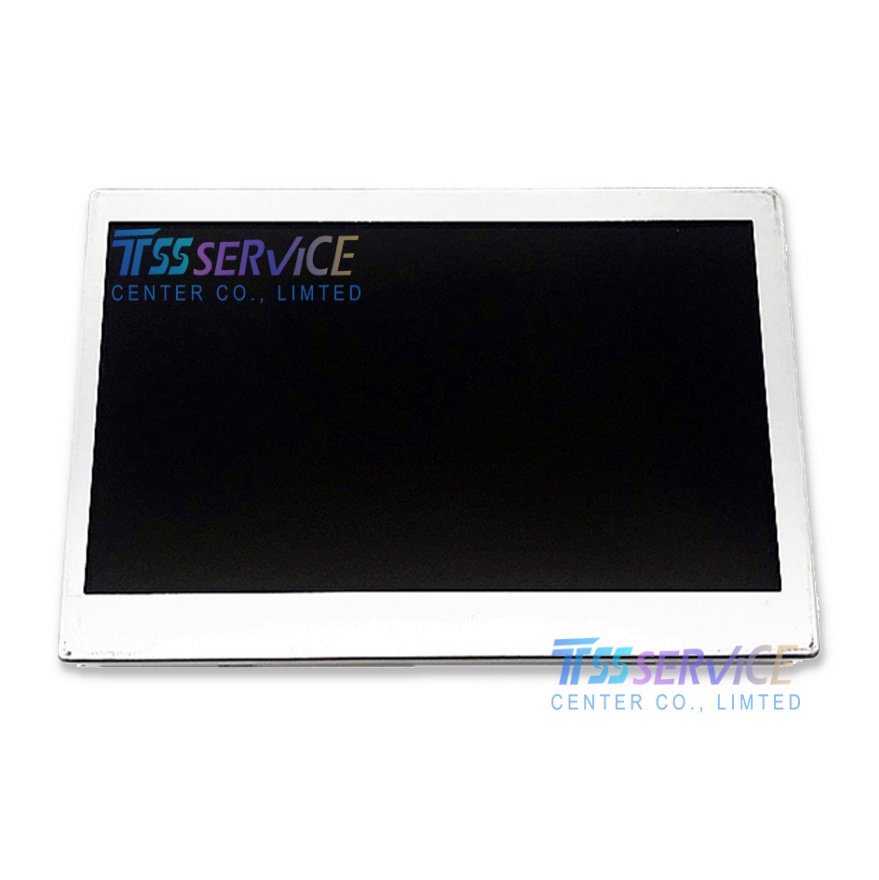

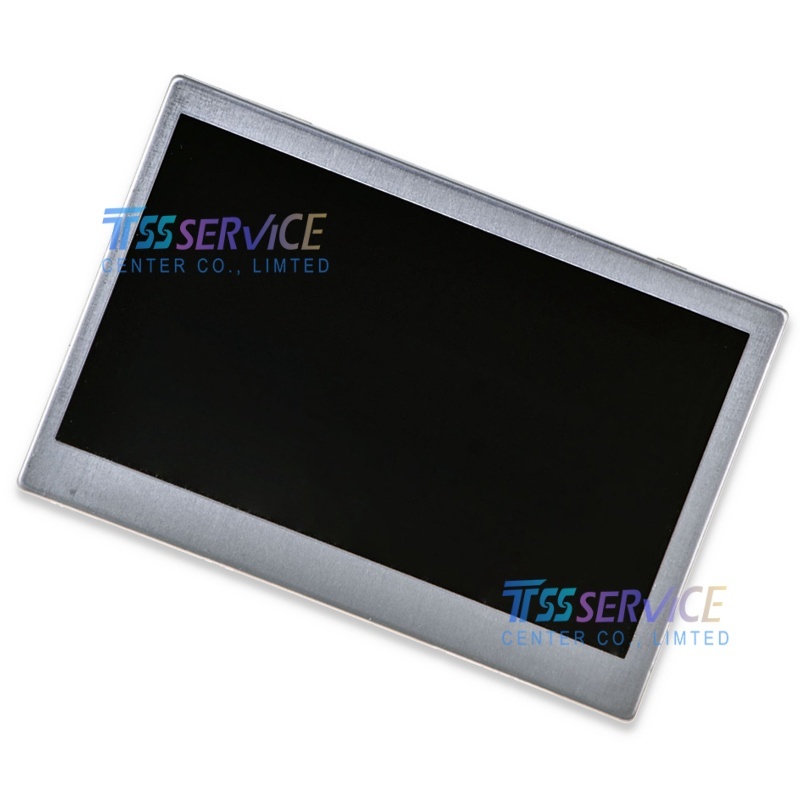

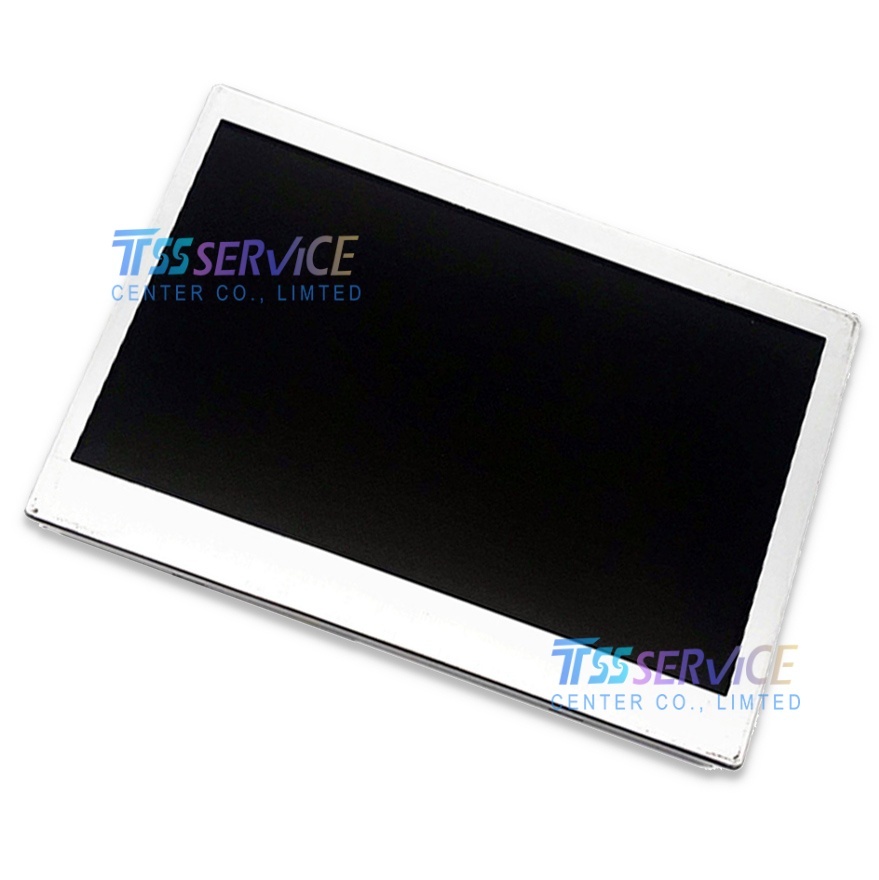

Sharp LQ042T5DZ13 4.2 inch 480×272 LCD Panel Screen For Industrial
| Parameter |
Value |
| Manufacturer |
Sharp (夏普) |
| Model |
LQ042T5DZ13 |
| Panel Type |
a‑Si TFT‑LCD, VA/ASV, Normally Black, Transmissive |
| Diagonal Size |
4.2 inches |
| Resolution |
480(RGB) × 272 (WQVGA), 133 PPI |
| Aspect Ratio |
16:9 |
| Active Area |
93.0(W) × 53.0(H) mm |
| Outline Dim. |
102.5(W) × 69.0(H) × 12.3(D) mm |
| Pixel Pitch |
0.1938 × 0.1949 mm (H×V) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Brightness |
500 cd/m² (Typ.) |
| Contrast Ratio |
1600:1 (Typ.) |
| Viewing Angle |
85/85/85/85° (Typ., CR≥10) |
| Response Time |
15/5 ms (Tr/Td, Typ.) |
| Color Depth |
262K colors (6‑bit) |
| Backlight |
Edge‑lit WLED, 50,000 hrs lifetime |
| Interface |
CMOS/TTL (1 ch, 6‑bit) |
| Surface |
Clear (Non‑AG) |
| Power Supply |
3.3V (Typ.) |
| Operating Temp |
-30°C ~ +85°C |
| Storage Temp |
-40°C ~ +90°C |
| RoHS |
Compliant |
| Status |
Discontinued (LQ042T5DZ13K variant) |
This high‑contrast, wide‑temperature panel is widely used in automotive, industrial, and portable embedded systems:
- Automotive: Car infotainment, dashboard displays, rear‑view monitors, navigation systems.
- Industrial Control: HMI panels, PLC interfaces, factory automation, handheld meters.
- Test & Measurement: Portable oscilloscopes, data loggers, field analyzers.
- Medical Devices: Portable diagnostic tools, patient monitors, handheld medical scanners.
- Embedded & IoT: Smart meters, industrial IoT terminals, vehicle‑mounted displays.
- Consumer Electronics: Portable media players, GPS devices, handheld gaming consoles.
