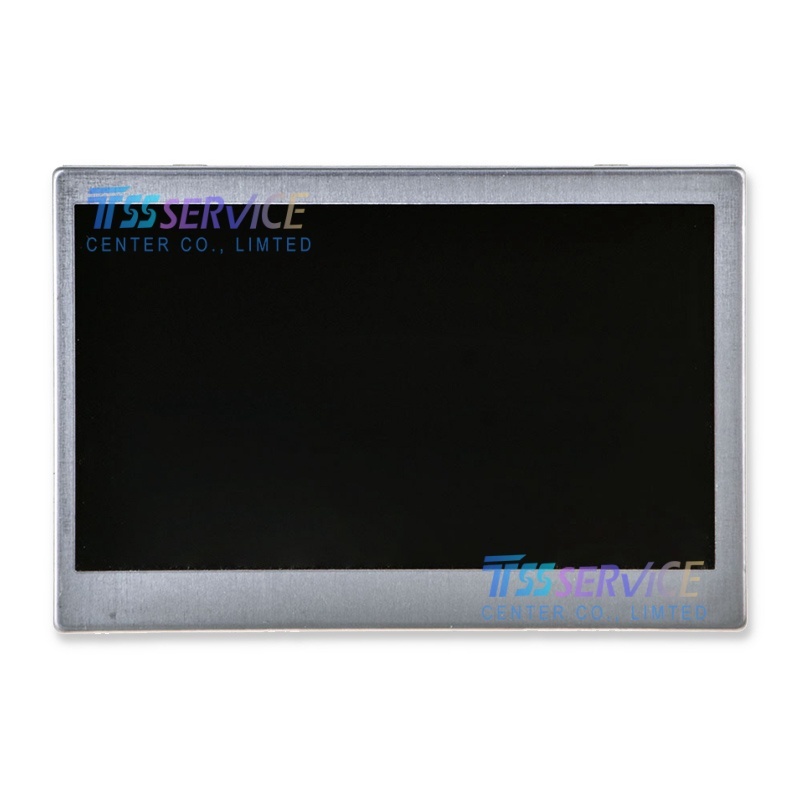

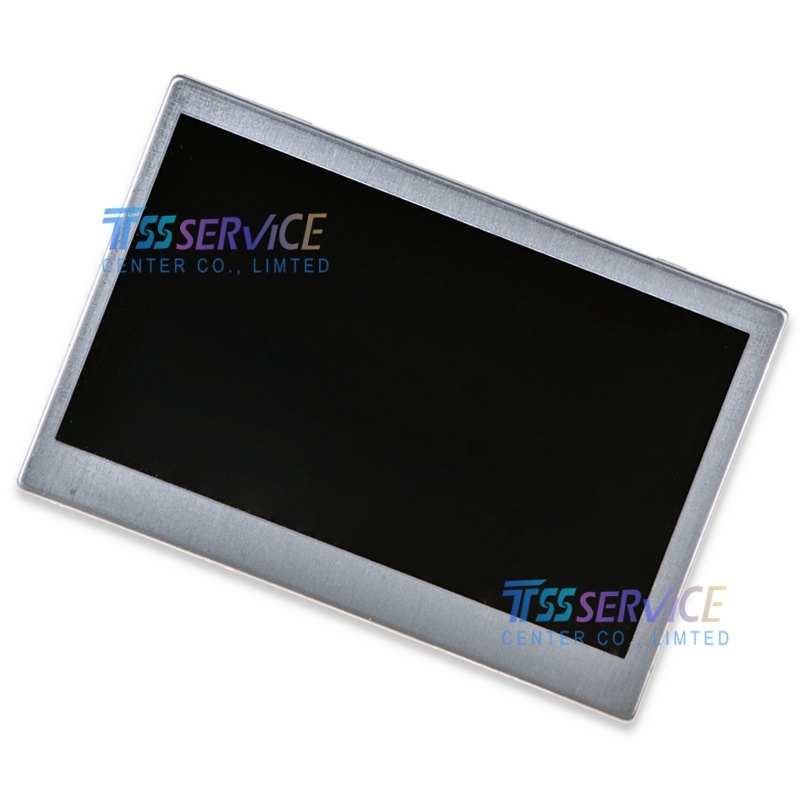

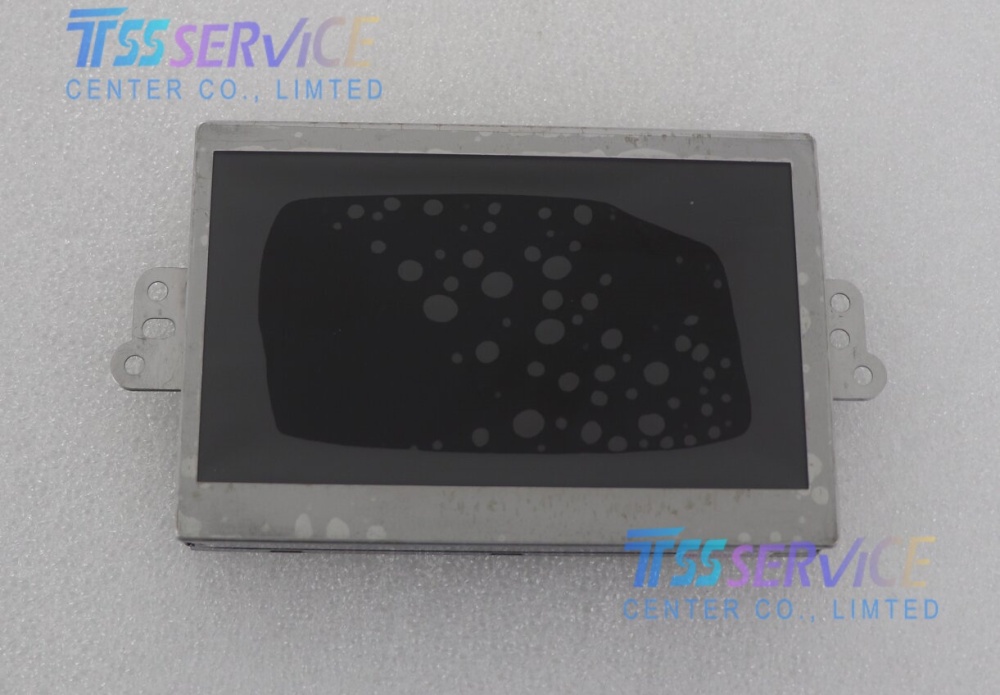

Sharp LQ042T5DZ17A 4.2 inch 480×272 LCD Display Screen for Industrial

Name: Sharp LQ042T5DZ17A 4.2 inch 480×272 LCD Display Screen for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ042T5DZ17A
Price: 35 USD
Availability: InStock

SKU: LQ042T5DZ17A

Model P/N: LQ042T5DZ17A
Diagonal Size: 4.2"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 480×272(RGB), WQVGA 131PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$36.00~~ $35.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LQ042T5DZ17A 4.2 inch 480×272 LCD Display Screen for Industrial

Parameter	Details	Unit
Model Number	LQ042T5DZ17A	-
Manufacturer	Sharp Corporation	-
Panel Type	a-Si TFT-LCD, LCM	-
Diagonal Size	4.2	Inch
Resolution	480 (RGB) × 272 (WQVGA)	Pixels
Pixel Density (PPI)	131	PPI
Pixel Configuration	RGB Horizontal Stripe	-
Display Area (AA)	92.88 (W) × 52.632 (H)	mm
Outline Size	102.5 (W) × 69 (H)	mm
Display Mode	ASV (VA), Normally Black, Transmissive	-
Brightness (Typ.)	500	cd/m²
Contrast Ratio (Typ.)	1600:1	-
Viewing Angle (CR≥10)	85° (U), 85° (D), 85° (L), 85° (R)	Degree
Color Depth	262K (6-bit)	-
Backlight	WLED, Edge-type, No Driver	-
Surface Treatment	Anti-Glare (AG, Matte)	-
Touch Panel	None	-
Signal Interface	CMOS (TTL), 1 channel, 6-bit	-
Supply Voltage	3.3 (Typ.)	V
Operating Temperature	-30 ~ +85	°C
Storage Temperature	-30 ~ +85	°C
RoHS Compliance	Yes	-
Application	Automotive, Industrial	-
