Home > LCD Display > SHARP > 3.5"-5.7" > LQ043Y1DX03

1/1

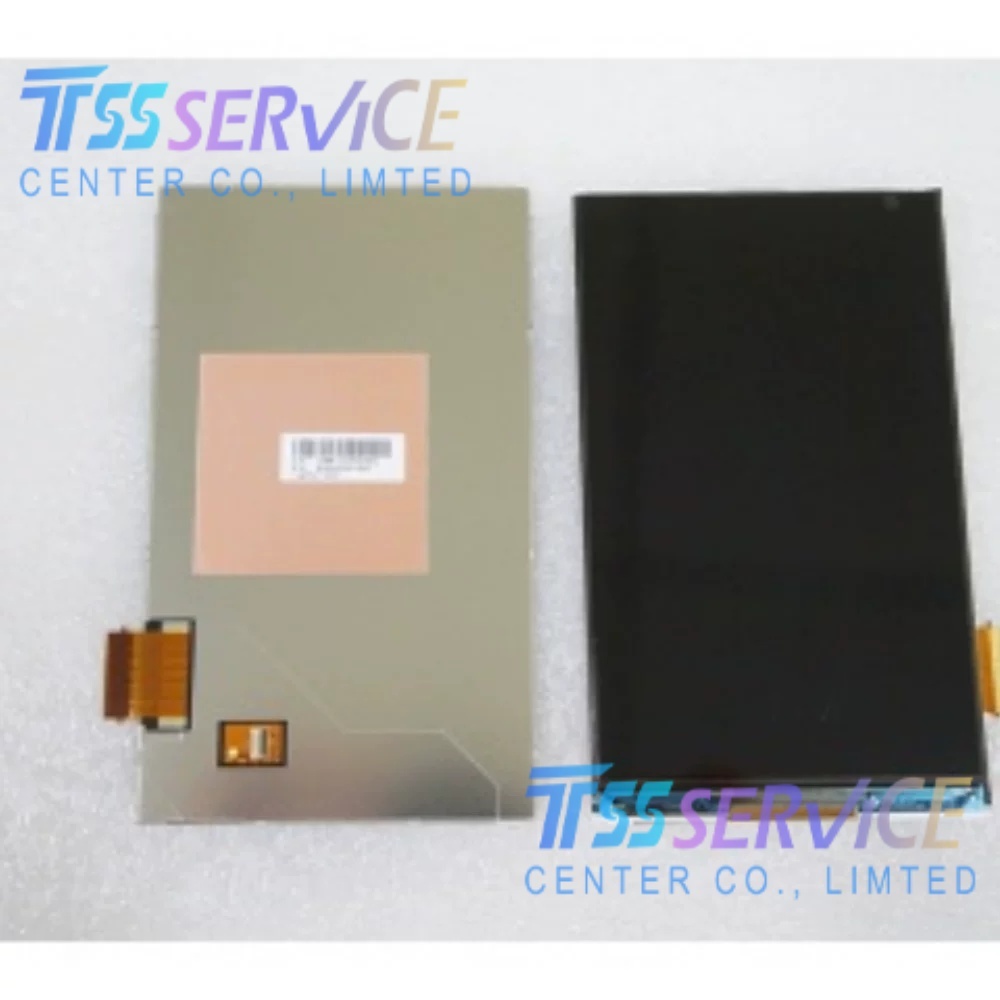

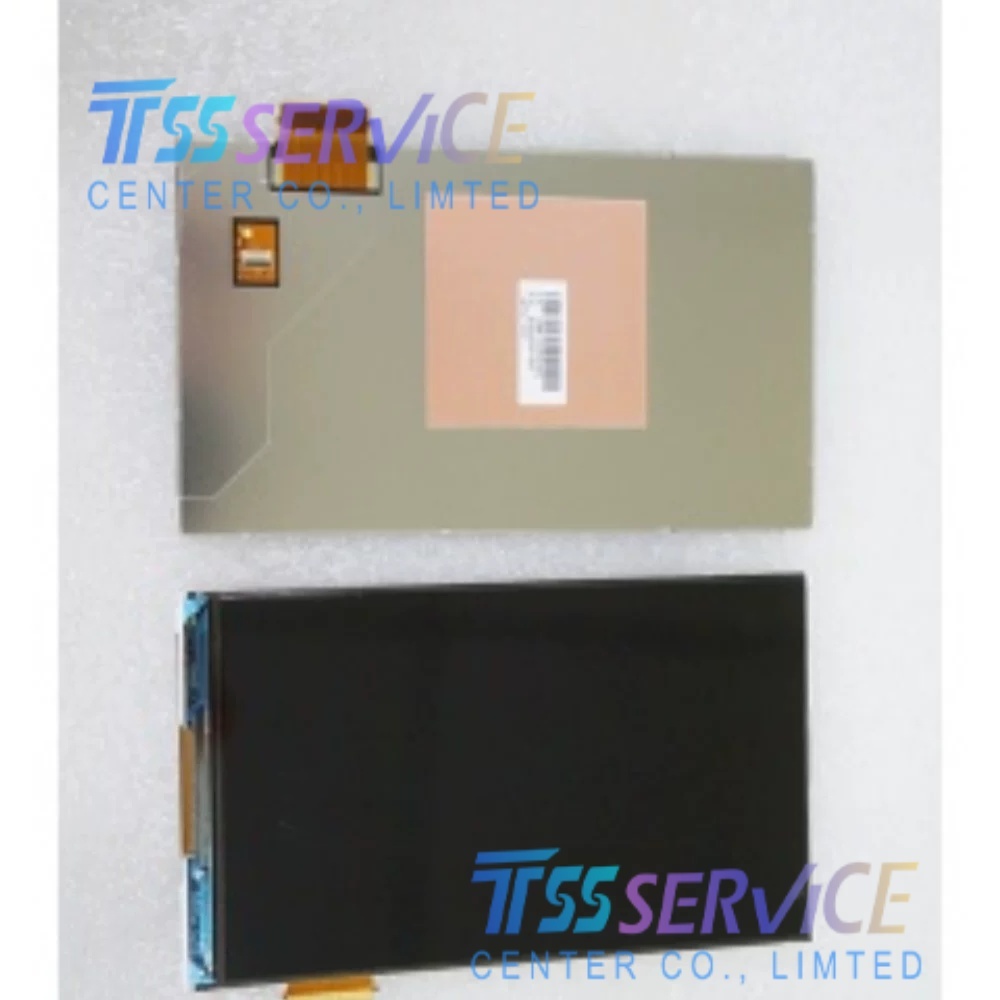

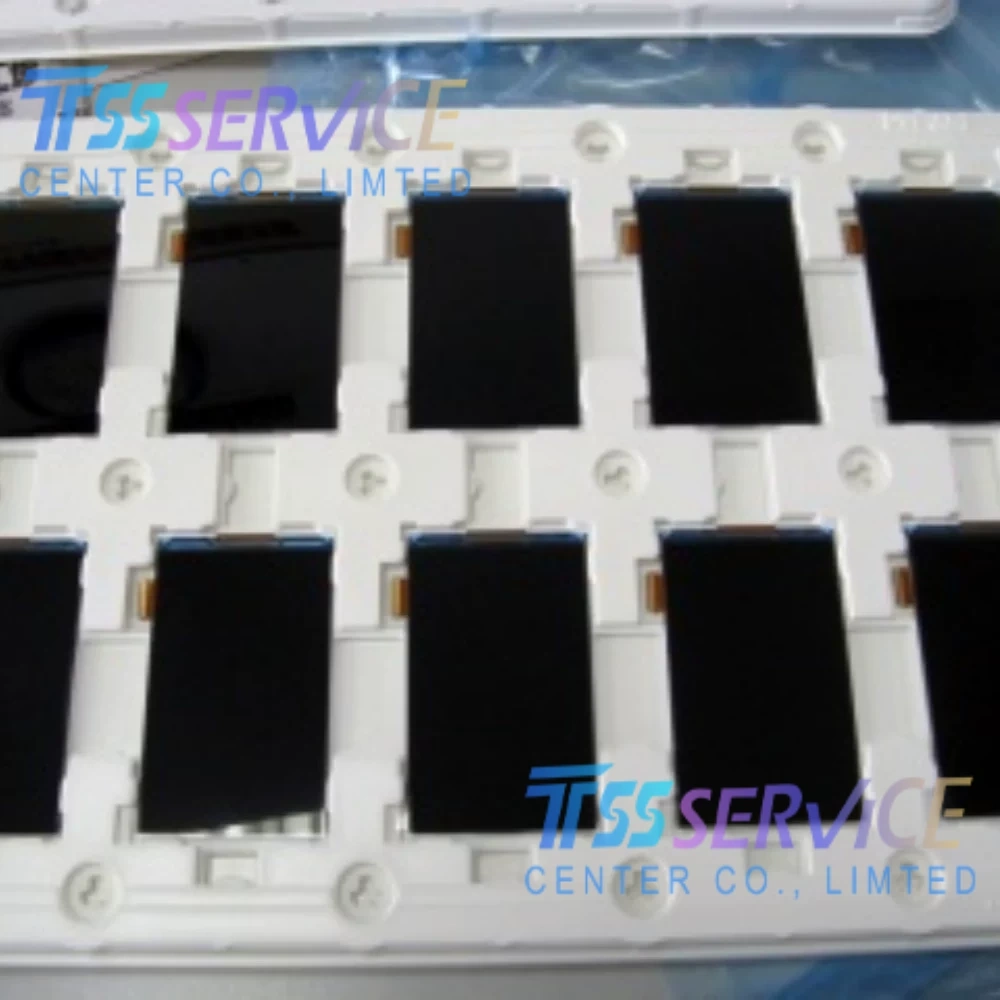

Sharp LQ043Y1DX03 4.3 inch 480×800 LCD Panel Display For Industrial

Name: Sharp LQ043Y1DX03 4.3 inch 480×800 LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ043Y1DX03
Price: 45 USD
Availability: InStock

SKU: LQ043Y1DX03

Model P/N: LQ043Y1DX03
Diagonal Size: 4.3"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 480(RGB)×800, WVGA 217PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$48.00~~ $45.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LQ043Y1DX03 4.3 inch 480×800 LCD Panel Display For Industrial

Parameter	Value
Brand	Sharp
Diagonal Size	4.3 inch
Resolution	480(RGB)×800
Panel Type	a-Si TFT-LCD
Display Mode	TN, Normally Black, Transmissive
Surface Treatment	Hard coating (3H)
Brightness	340 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.)
Display Colors	65K 72% NTSC
Response Time	35 ms (Typ.) (Tr/Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Backlight	WLED, 50,000 hrs lifetime
Interface	Parallel RGB (6-bit), 45-pin FPC
Active Area	56.16(W)×93.6(H) mm
Outline Dimensions	62.46(W)×105.9(H)×2.3(D) mm
Operating Temperature	-20°C ~ +60°C
Storage Temperature	-40°C ~ +80°C
RoHS	Compliant
Application Grade	Automotive grade
