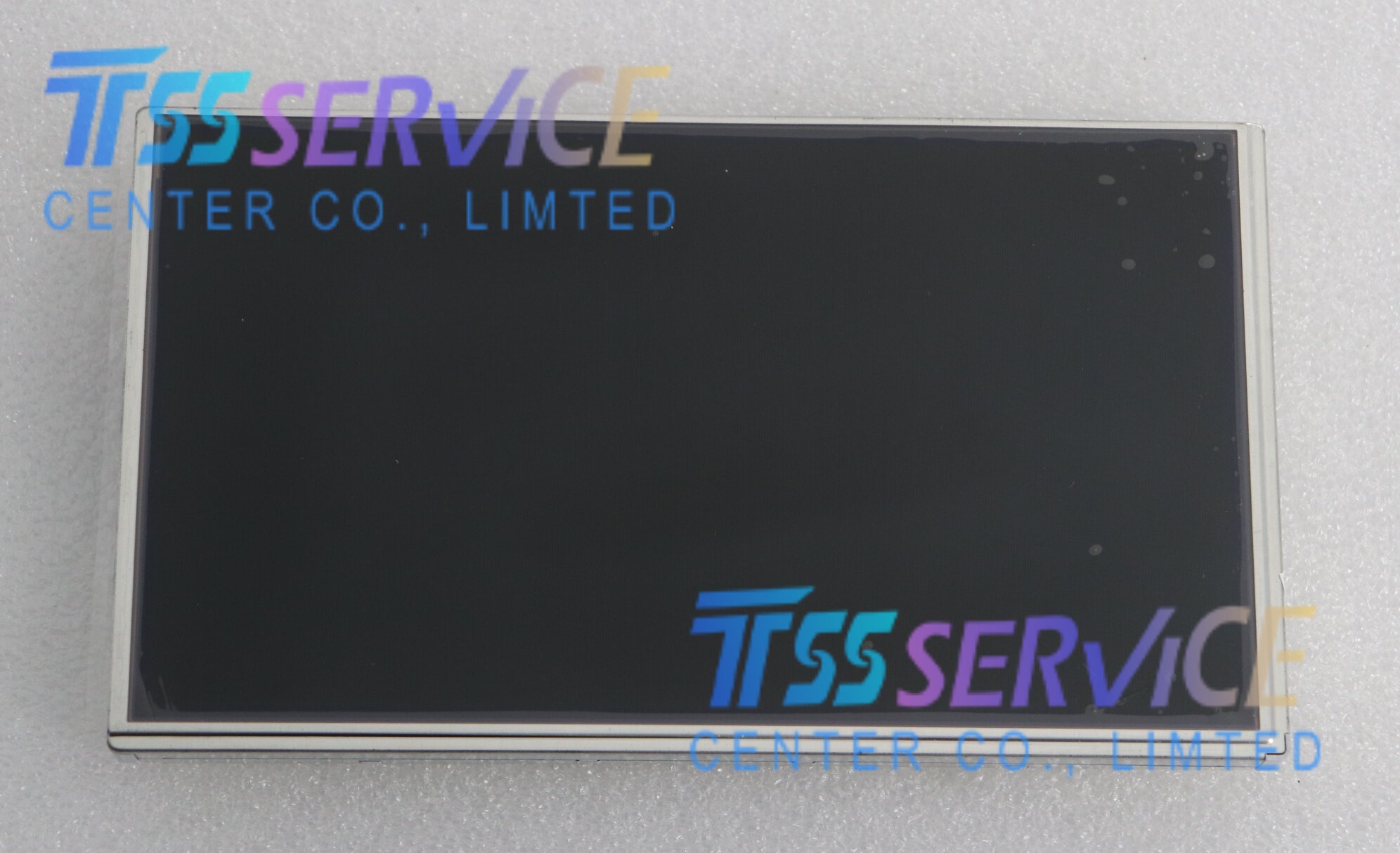

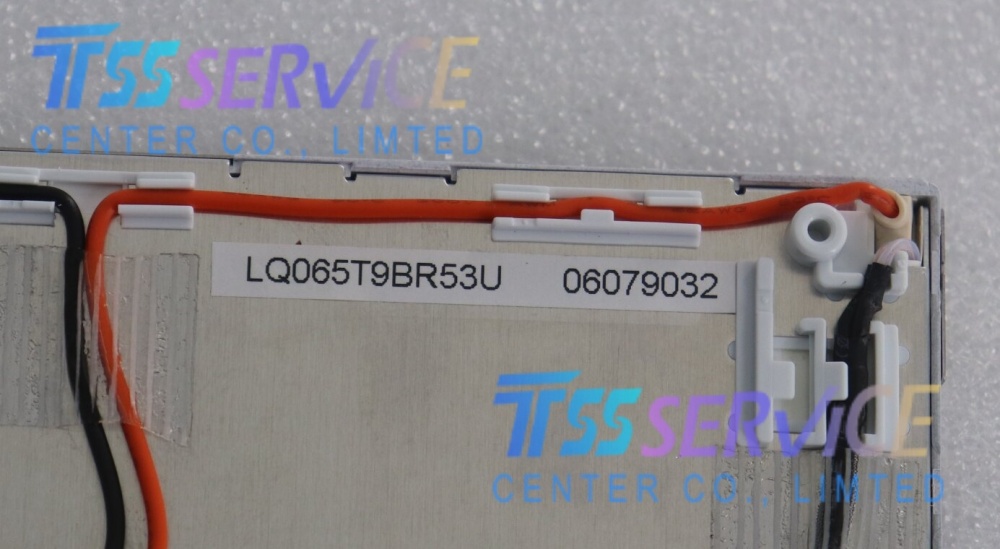

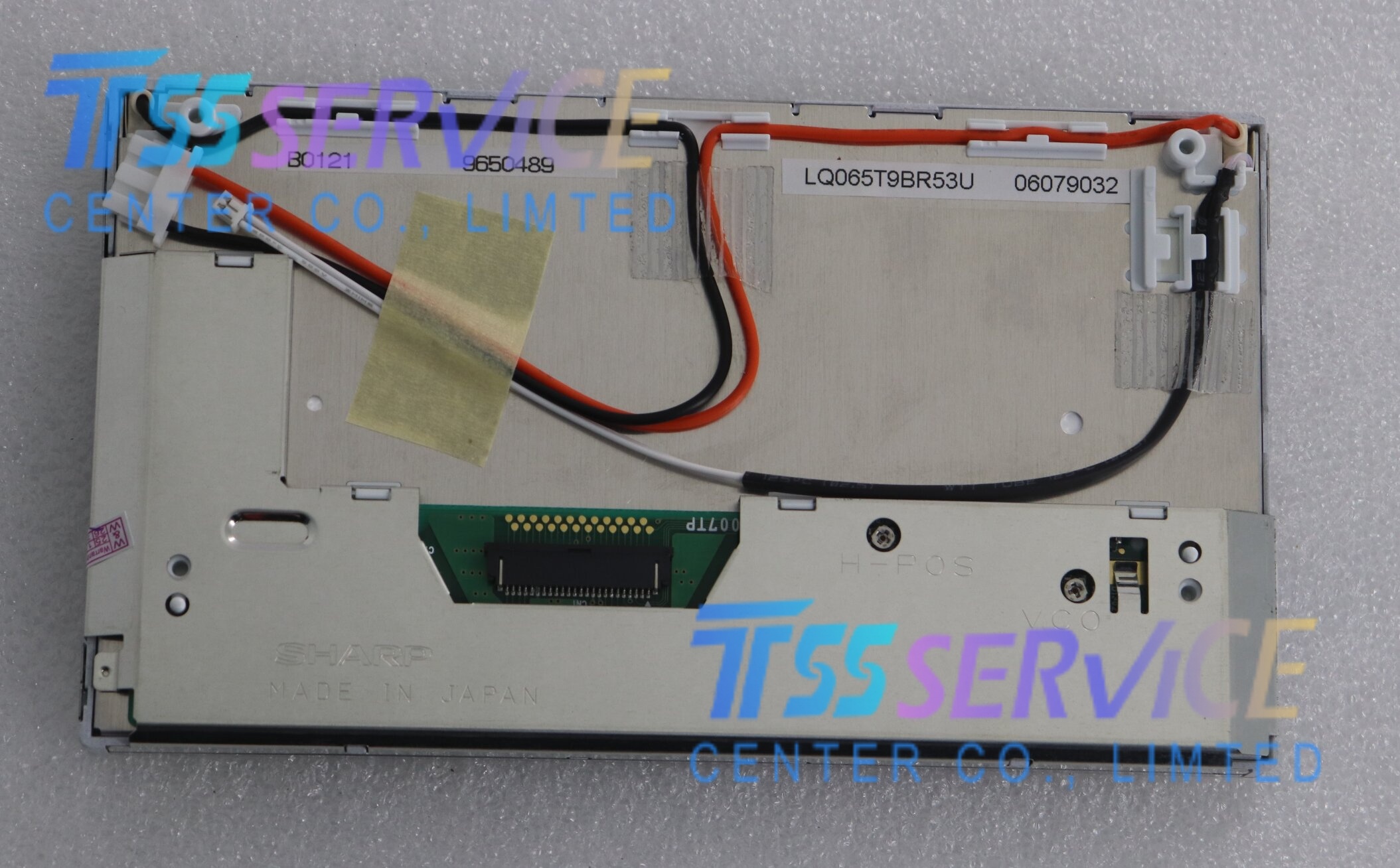

Sharp 6.5 inch 400×240 LCD Panel Display LQ065T9BR53U For Industrial

Name: Sharp 6.5 inch 400×240 LCD Panel Display LQ065T9BR53U For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ065T9BR53U
Price: 150 USD
Availability: InStock

SKU: LQ065T9BR53U

Model: LQ065T9BR53U
Diagonal Size: 6.5 inch
Display Type: a-Si TFT-LCD, LCM
Resolution: 400 (RGB) × 240 pixels (WQVGA, 72 PPI)

0.0 (0 Reviews)

0 Sold

~~$153.00~~ $150.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp 6.5 inch 400×240 LCD Panel Display LQ065T9BR53U For Industrial

Parameter	Specification (English)
Manufacturer	SHARP
Model	LQ065T9BR53U
Diagonal Size	6.5 inch
Display Type	a-Si TFT-LCD, LCM (Transflective, Normally White)
Resolution	400 (RGB) × 240 pixels (WQVGA, 72 PPI)
Pixel Arrangement	RGB Vertical Stripe
Active Area	143.4 mm (W) × 79.326 mm (H)
Outline Dimension	155 mm (W) × 89.2 mm (H) × ～ mm (D)
Brightness	220 cd/m² (Typ.)
Contrast Ratio	60:1 (Typ., Transmission) / 7:1 (Typ., Reflective)
Viewing Angle	50°/50°/40°/50° (Typ., CR≥5)
Response Time	15 ms (Tr) / 35 ms (Tf) (Typ.)
Color Depth	Full color
Backlight	CCFL (1 lamp), 10,000 hrs lifespan (without driver)
Interface	Analog RGB 24 pins + Composite Video (NTSC/PAL)
Operating Temperature	-30°C ~ +85°C
Storage Temperature	-30°C ~ +85°C
Weight	~205 g
Surface Treatment	Matte (Anti-Glare)
Special Feature	Sunlight readable (Transflective)

Applications (English)

Industrial HMI & Control Panels: Factory automation, PLC interfaces, and industrial displays requiring wide temperature (-30°C to +85°C) and sunlight readability.
Automotive Displays: In-vehicle infotainment, dashboard displays, and rear-seat entertainment (non-safety-critical) due to extended temperature range.
Marine & Outdoor Equipment: Navigation systems, fishing sonars, and outdoor monitoring devices needing transflective (sunlight readable) operation.
Medical Devices: Portable diagnostic equipment and patient monitors requiring reliable performance in harsh temperature environments.
Legacy Industrial Systems: Replacement for older Sharp 6.5" panels (e.g., LQ065T9BR53) in existing industrial and automotive applications.
