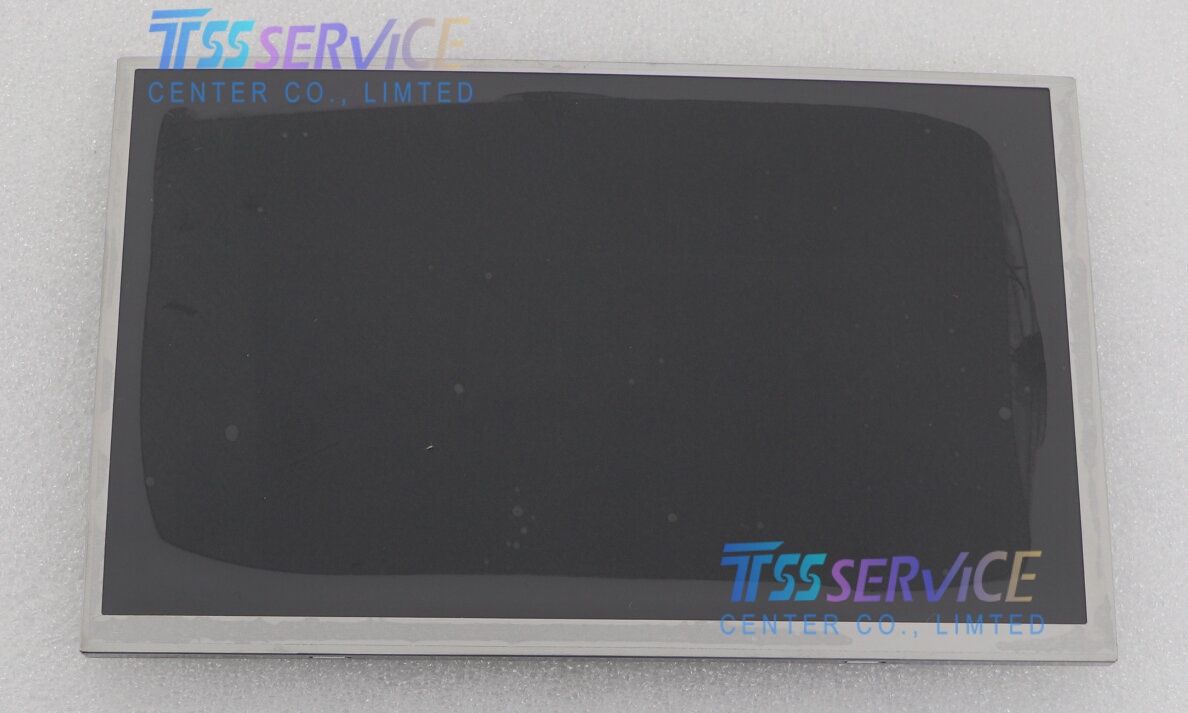

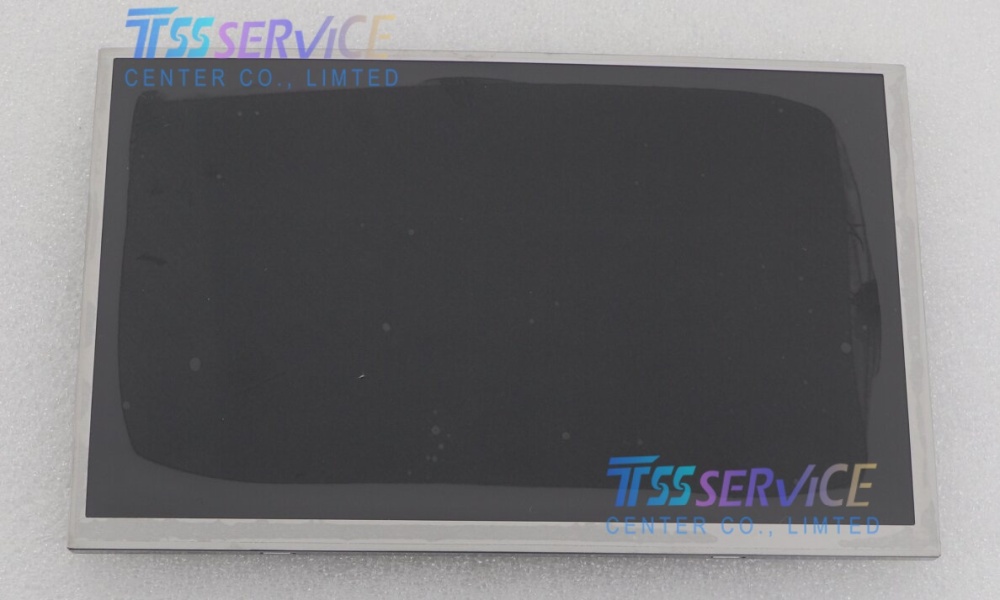

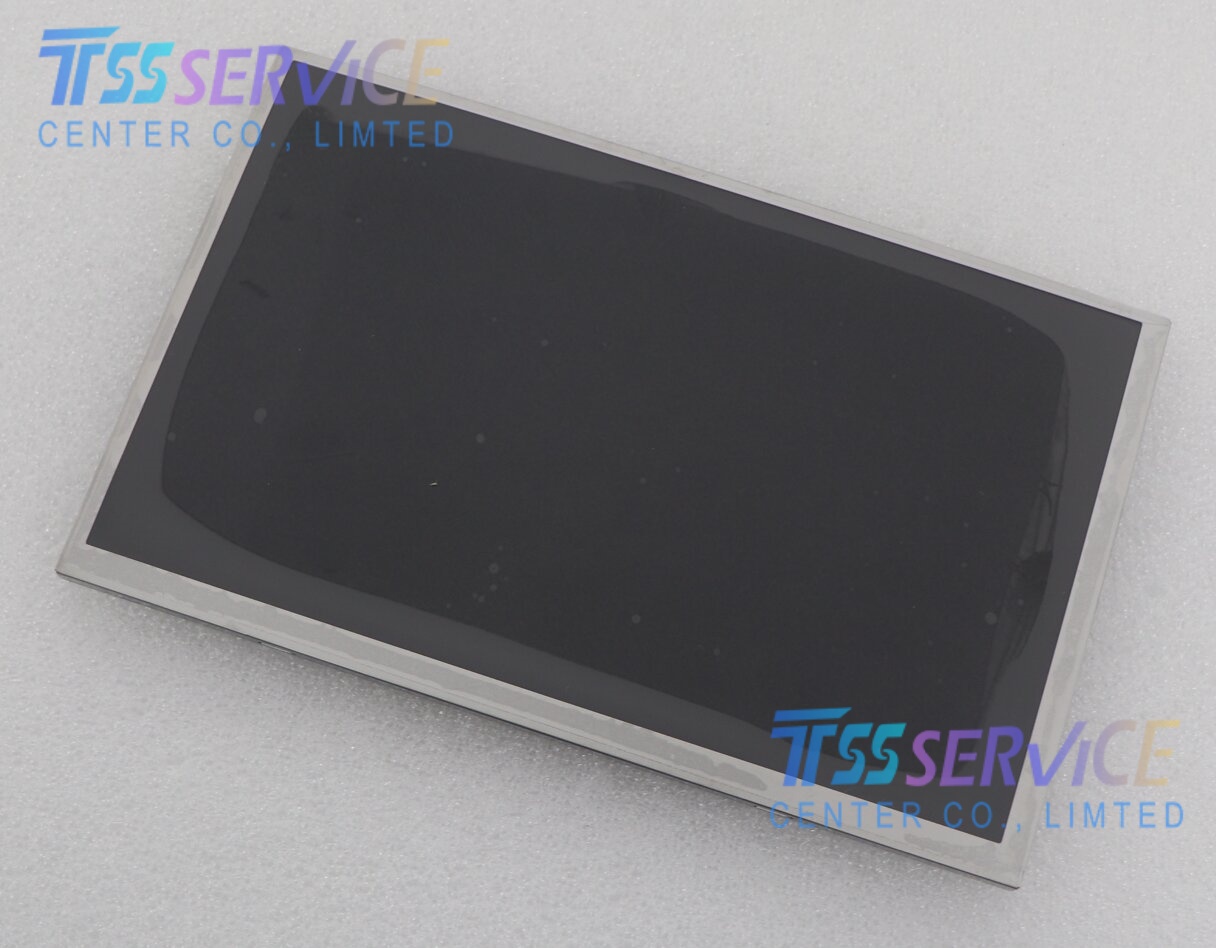

Model P/N: LQ070Y3LG02A
Diagonal Size: 7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×480, WVGA 133PPI
Pixel Format: RGB Vertical Stripe
| Parameter | Specification |
|---|---|
| Manufacturer | Sharp |
| Part Number | LQ070Y3LG02A |
| Display Type | a‑Si TFT‑LCD, Transmissive, Normally White |
| Diagonal Size | 7.0 inches |
| Resolution | 800(RGB) × 480 (WVGA) |
| Pixel Density | 133 PPI |
| Active Area | 152.4 (W) × 91.44 (H) mm |
| Outline Dimensions | 170.8 (W) × 112.0 (H) × 11.5±0.5 (T) mm |
| Pixel Format | RGB Vertical Stripe |
| Brightness | 750 cd/m² (Typical) |
| Contrast Ratio | 400:1 (Typical) |
| Display Colors | 262K (6‑bit) |
| Viewing Angle (CR≥10) | Horizontal: ±60°; Vertical: -50°/+60° |
| Backlight | White LED (WLED) |
| Backlight Lifetime | 50,000+ hours (Typical) |
| Interface | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Input Voltage | 3.3 V (Nominal) |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -40°C to +85°C |
| Vibration Resistance | 1.0G (9.8 m/s²) |
| Refresh Rate | 60Hz |
| Mass | 280g (Typ.) |
