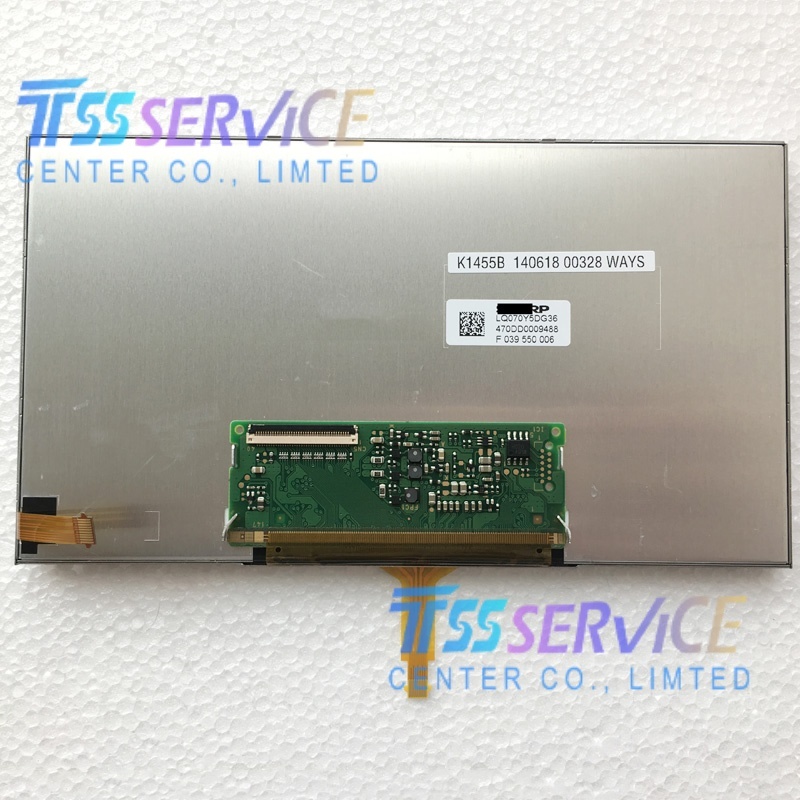

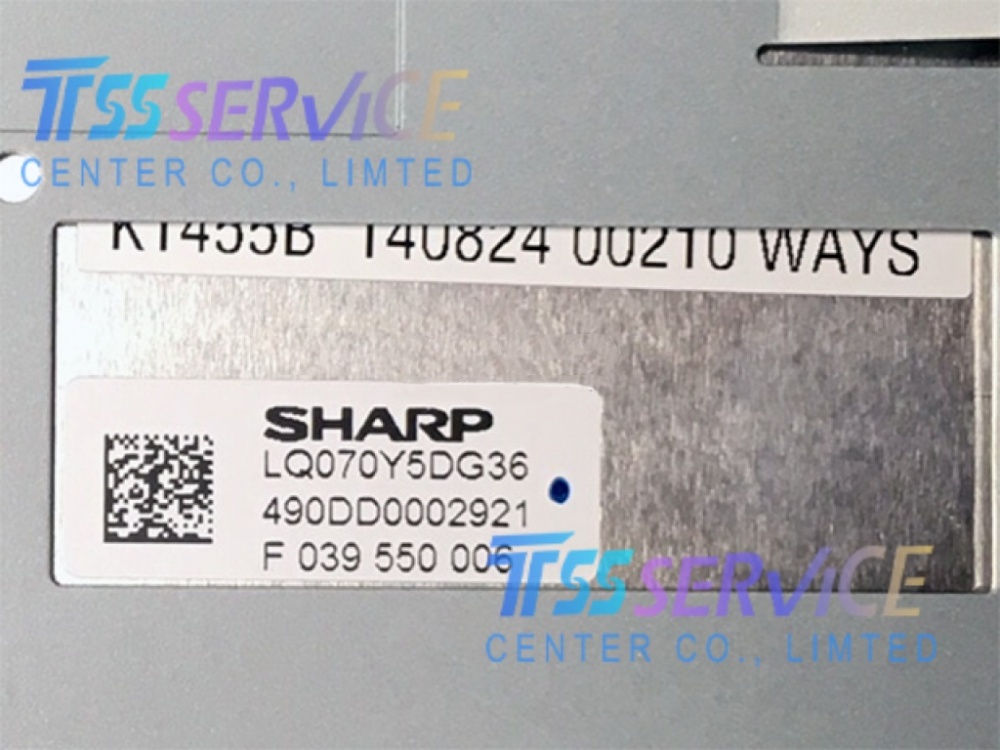

LQ070Y5DG36 Sharp 7" 800×480 Industrial TFT LCD Panel Display
| Spec Item |
Detailed Parameter |
| Manufacturer |
Sharp Corporation |
| Model Number |
LQ070Y5DG36 |
| Screen Size |
7.0 inch Landscape |
| Panel Type |
a-Si TFT-LCD LCM, TN, Normally White, Transmissive |
| Native Resolution |
800(RGB) × 480 WVGA, 17:9 Wide Aspect Ratio |
| Dot Layout |
RGB Vertical Stripe |
| Active Area (W×H) |
156.4(W)×82.08(H) mm |
| Outline Dimension (W×H×D) |
165.0 × 92 × 10.8 mm |
| Typical Luminance |
485 cd/m² |
| Contrast Ratio |
150:1 (Typ.) |
| Viewing Angle (CR≥10) |
65/65/50/65 (Typ.)(CR≥10) |
| Response Time G to G |
20/30 (Typ.)(Tr/Td) mm |
| Display Color |
262K |
| Backlight |
6S4P WLED, 10K hrs, No Built-in Driver |
| Signal Interface |
Parallel RGB (1 ch, 6-bit), 40 pins Connector |
| Refresh Rate |
60Hz |
| Supply Voltage |
3.3V Typical |
| Operating Temperature |
-30 ℃ ~ +70 ℃ Ultra Wide Industrial Grade |
| Storage Temperature |
-40 ℃ ~ +80 ℃ |
| Surface Feature |
Standard Hard Coating, Anti-scratch |
Application
1. Construction & Agricultural Machinery Onboard Displays
Excavator, loader, forklift operation monitoring terminals, tractor agricultural equipment control panels, engineering vehicle auxiliary data display screens, off-road machinery parameter monitors.
2. Industrial Automation HMI Terminals
Portable CNC operation panels, injection molding machine auxiliary touch displays, packaging equipment PLC control terminals, factory production line monitoring screens, small automation all-in-one machines.
3. Portable Medical Testing Devices
Portable clinical diagnostic analyzers, field patient vital sign monitors, laboratory portable optical inspection instruments, compact ward bedside testing terminals.
4. Compact Self-Service & Field Instruments
Mini self-service inquiry kiosks, handheld environmental gas detectors, electrical fault diagnostic testers, logistics industrial data collection terminals.
5. Equipment Repair & Refurbishment
Original replacement spare LCD panel for damaged Sharp LQ070Y5DG series modules, premium Japanese spare parts for discontinued construction and industrial machinery, second-hand equipment renovation projects.
