LQ10D361

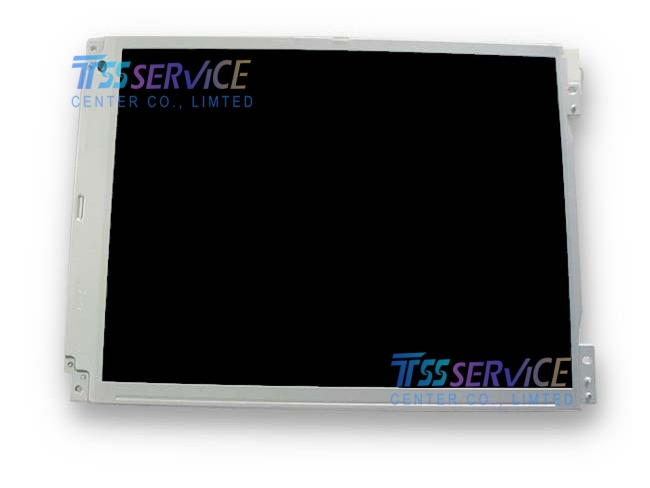

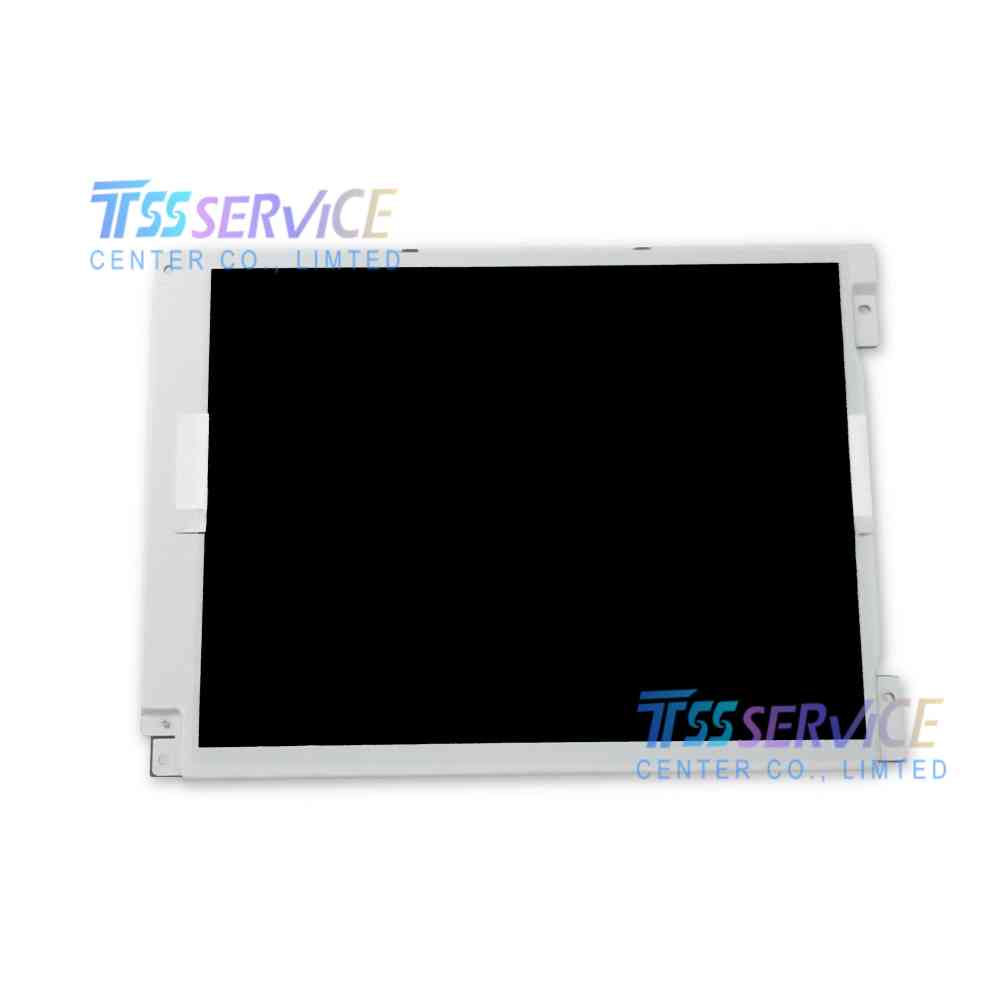

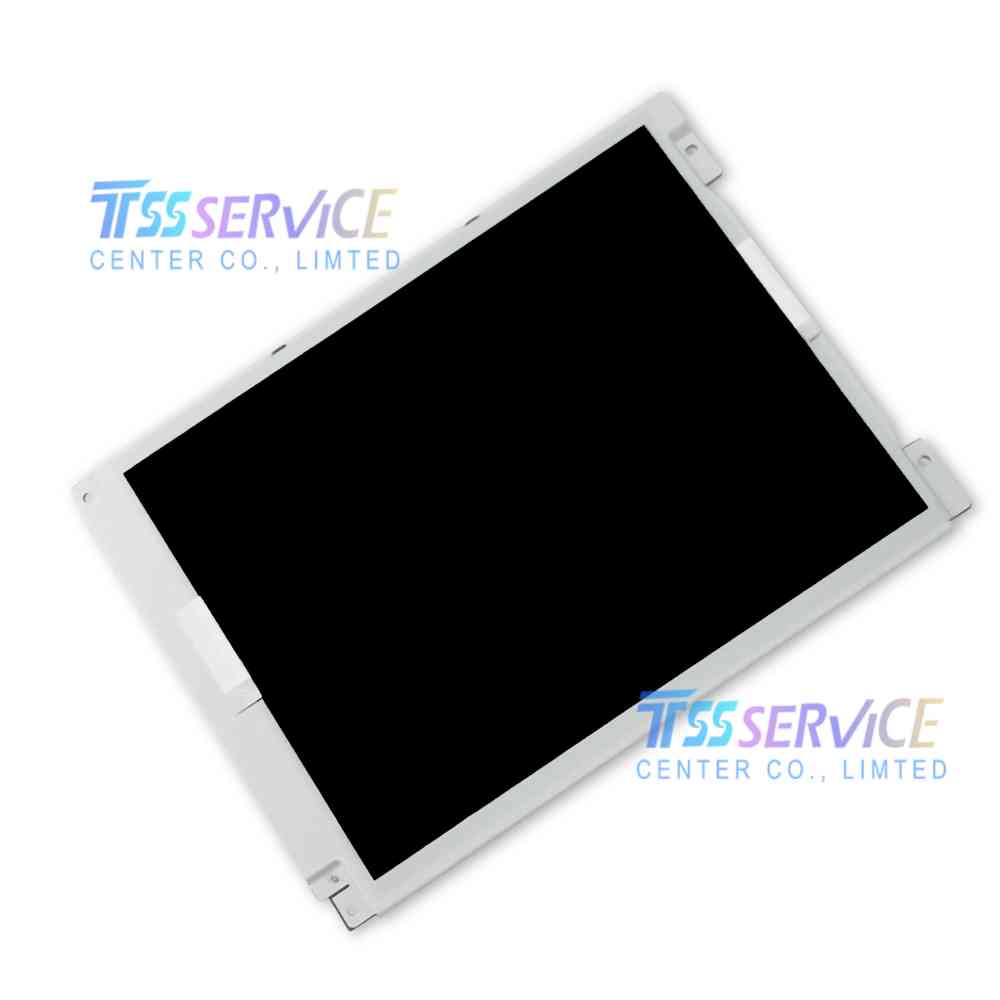

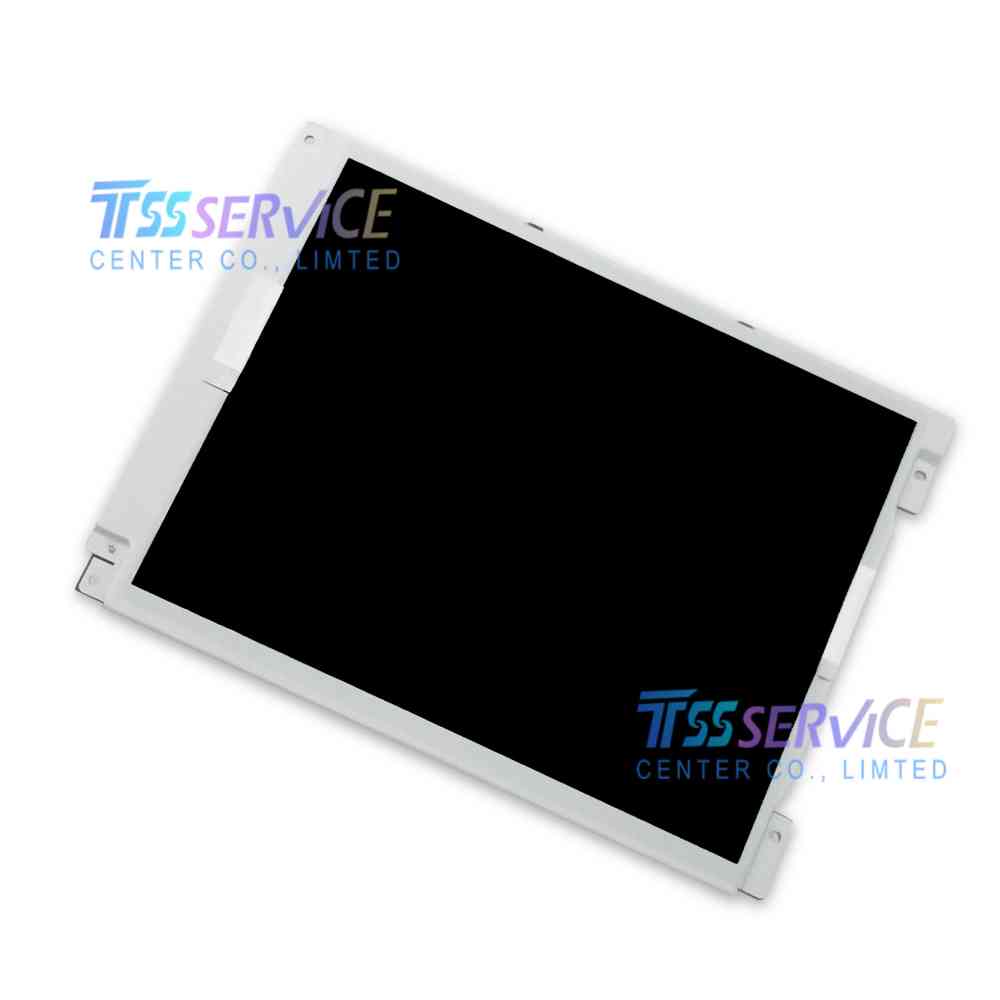

LQ10D361 is a 10.4-inch a-Si TFT-LCD panel manufactured by Sharp, featuring 640×480 VGA resolution, 262K colors, and CCFL backlight. Designed for industrial embedded systems, it provides stable performance, antiglare surface, and wide temperature tolerance for reliable operation in harsh environments.
| Parameter |
Details |
| Model |
LQ10D361 |
| Brand |
Sharp |
| Display Size |
10.4 inches (diagonal) |
| Resolution |
640(RGB)×480 pixels (VGA) |
| Panel Technology |
a-Si TFT-LCD (TN, Normally White, Transmissive) |
| Active Area (W×H) |
211.2 × 158.4 mm |
| Outline Dimensions (W×H) |
246.5 × 179.4 mm |
| Brightness |
200 cd/m² (typical) |
| Contrast Ratio |
500:1 (typical) |
| Display Colors |
262K (6-bit RGB) |
| Surface Treatment |
Antiglare (Haze 28%), 3H hard coating |
| Backlight |
1 × CCFL (lifetime: 25,000 hours) |
| Interface |
Parallel RGB (1 channel, 6-bit), 31-pin connector |
| Operating Voltage |
5.0 V (typical) |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
−25°C ~ +60°C |
| Weight |
~0.48 kg |
| Certifications |
RoHS compliant |
| Status |
Active (industrial replacement) |
