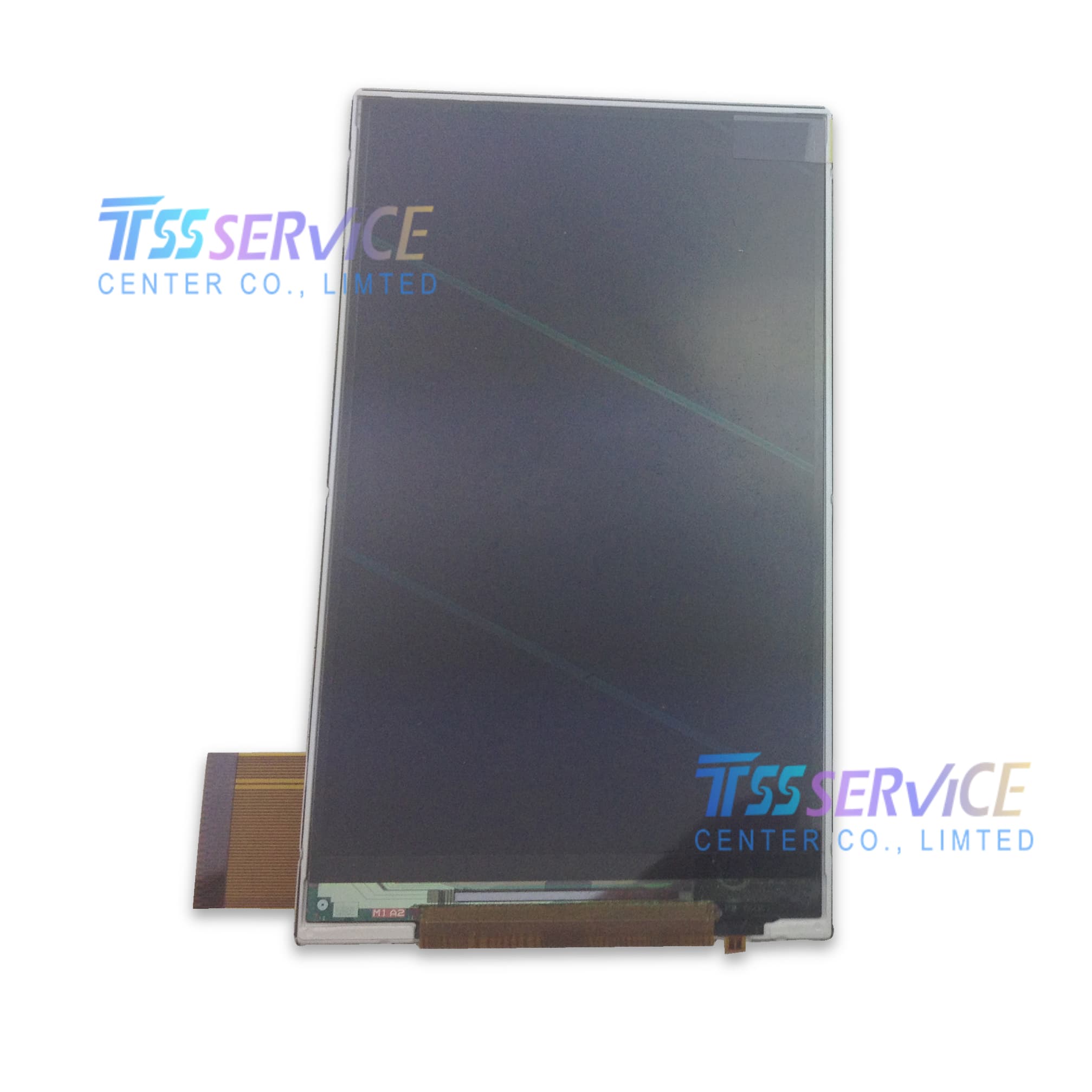

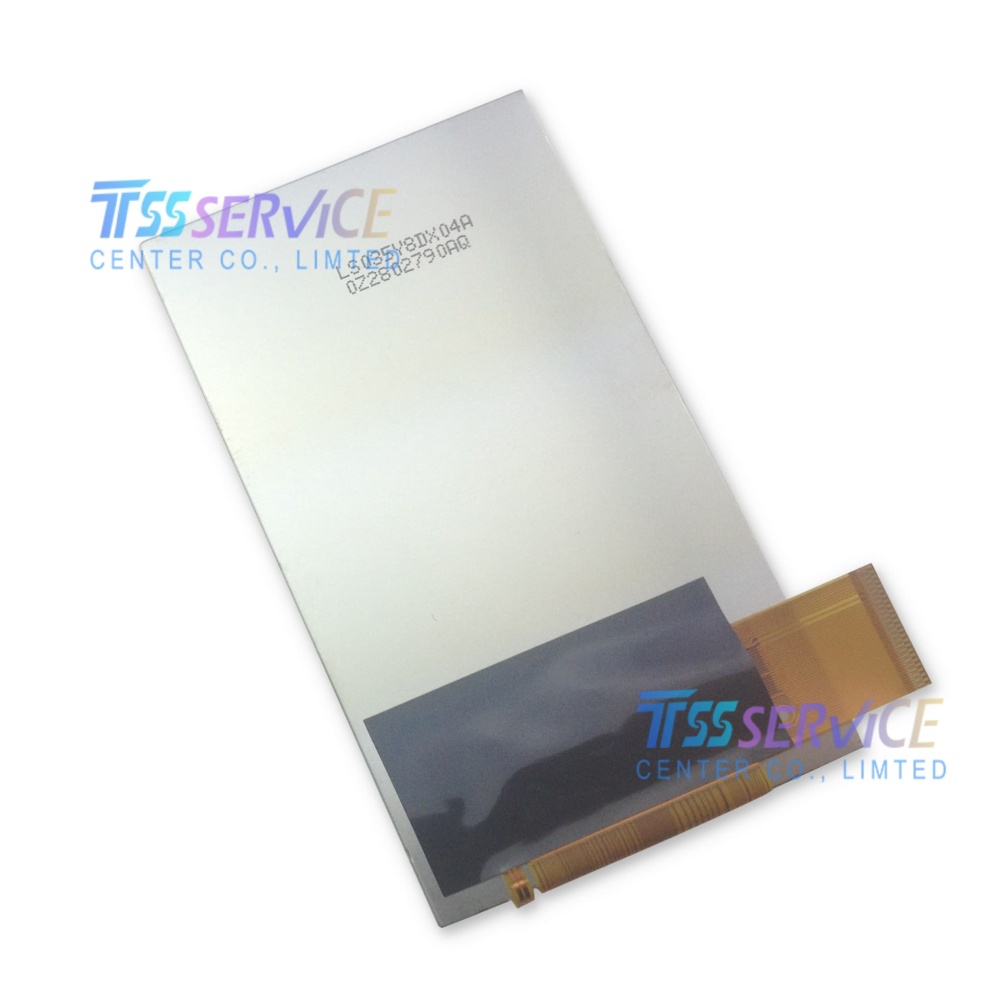

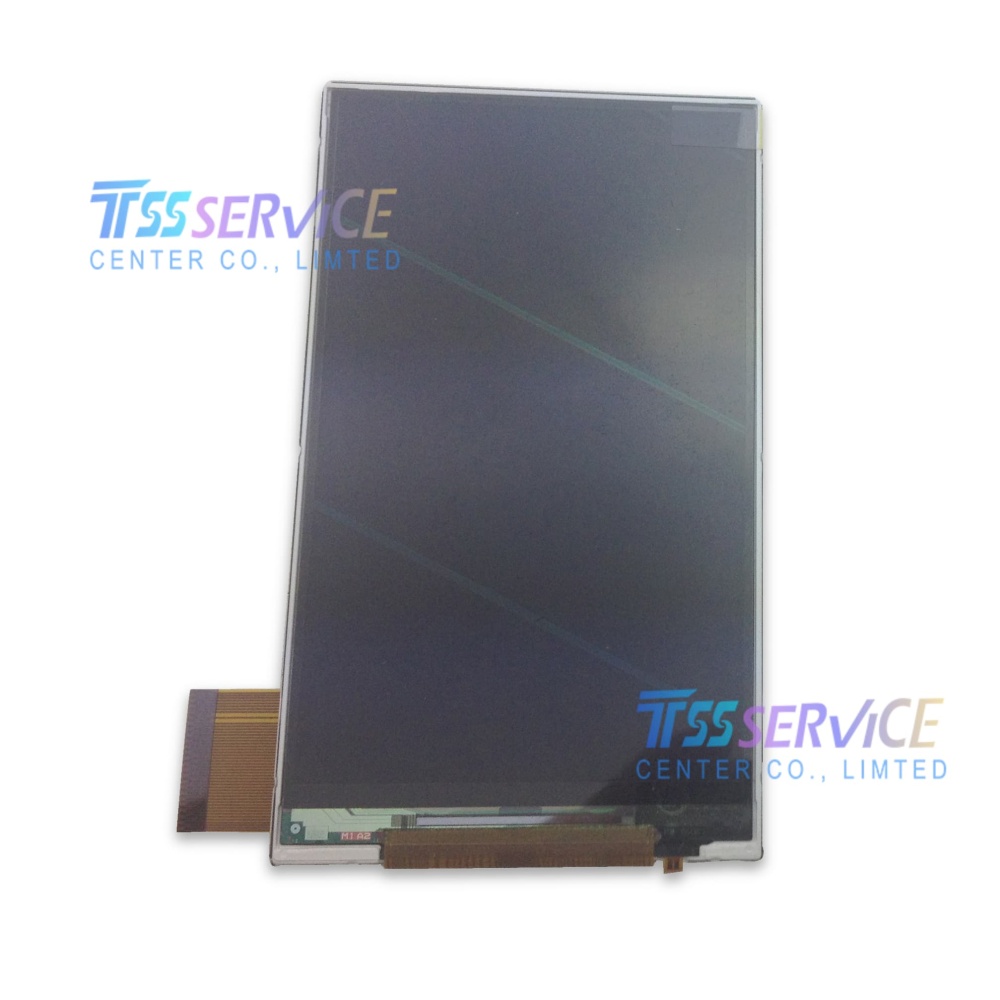

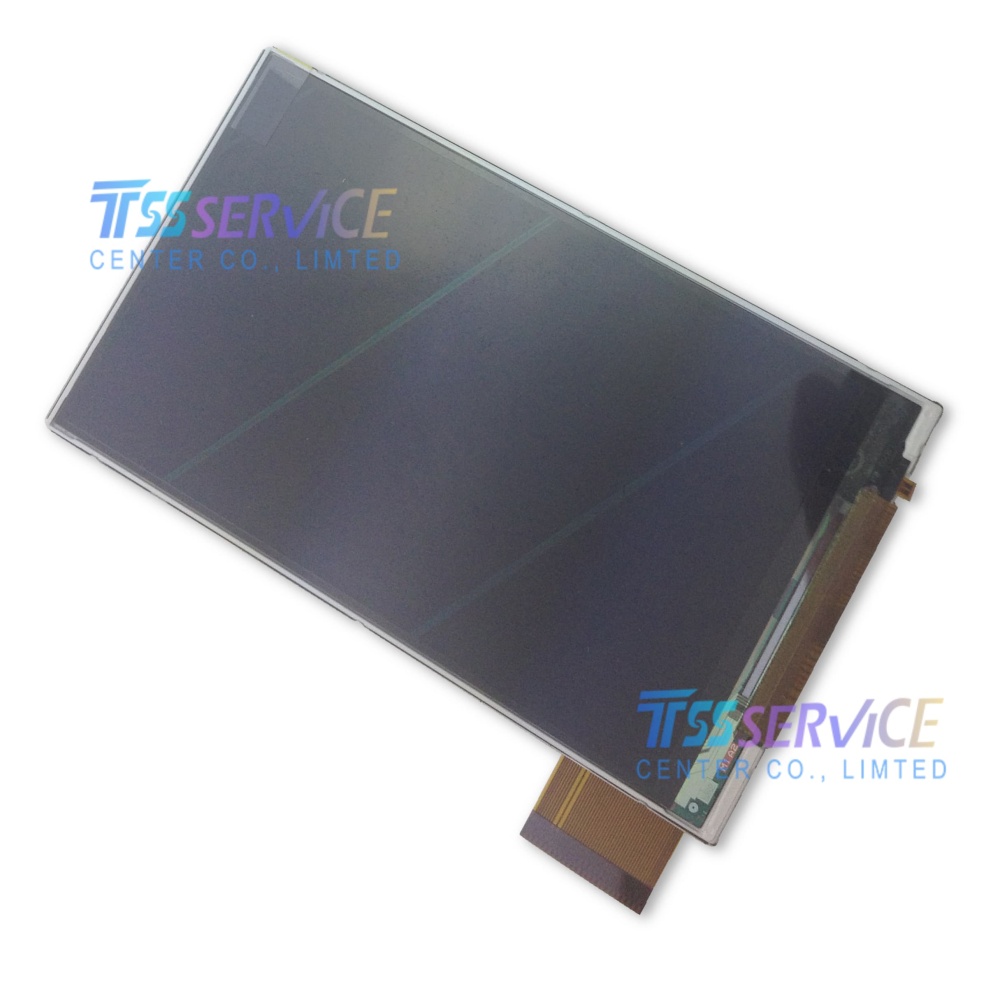

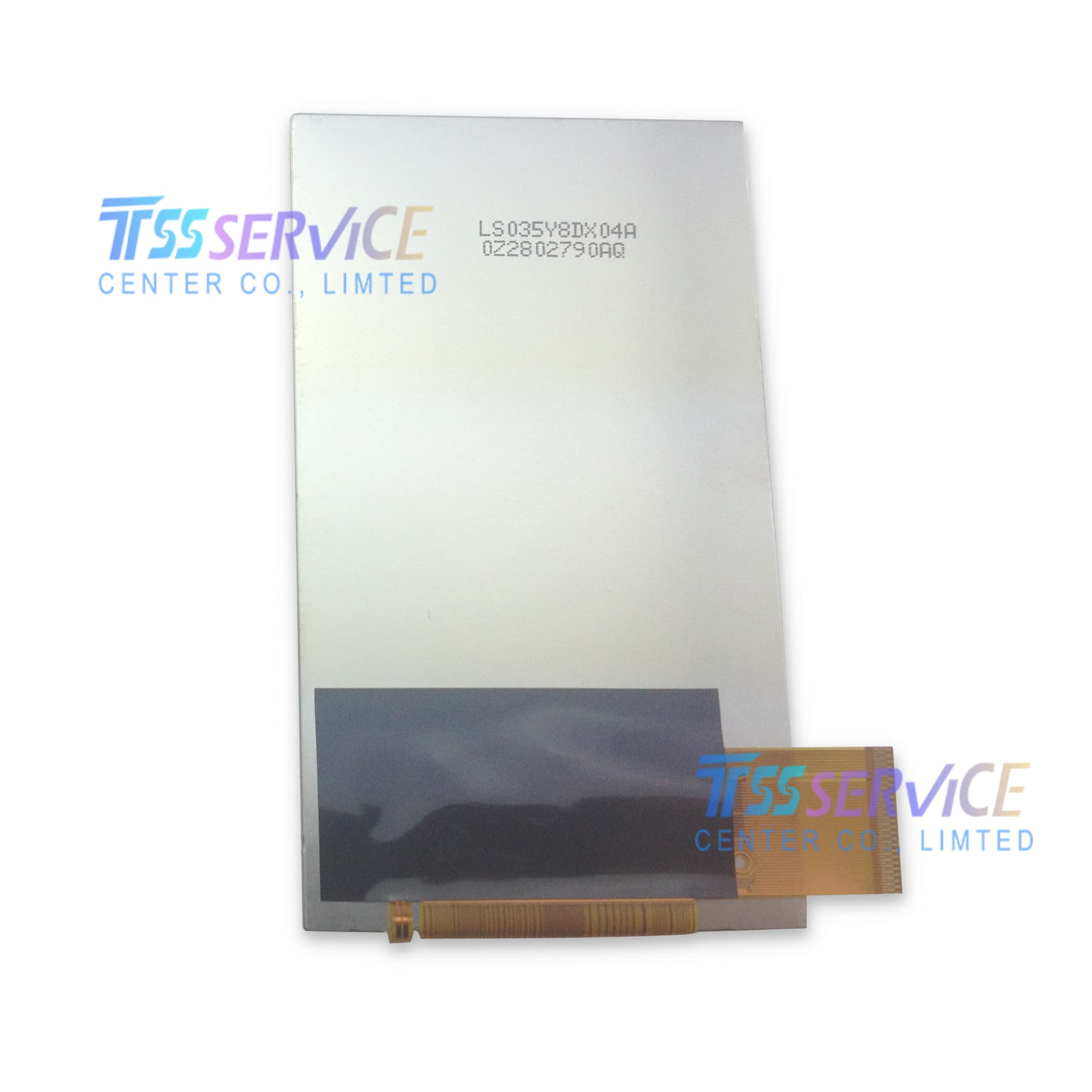

Sharp LS035Y8DX04A 3.5 Inch 480×800 Industrial TFT LCD Screen Display Panel for HMI Equipment

Name: Sharp LS035Y8DX04A 3.5 Inch 480×800 Industrial TFT LCD Screen Display Panel for HMI Equipment
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LS035Y8DX04A
Price: 35 USD
Availability: InStock

SKU: LS035Y8DX04A

Model Number: LS035Y8DX04A
Brand: SHARP Industrial TFT-LCD
Diagonal Size: 3.5 Inch
Native Resolution: 480×800
Panel Technology: a-Si TN TFT-LCD, Normally Black, Transflective

0.0 (0 Reviews)

0 Sold

~~$36.00~~ $35.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LS035Y8DX04A 3.5 Inch 480×800 Industrial TFT LCD Screen Display Panel for HMI Equipment

Item	Specification Parameter
Model Number	LS035Y8DX04A
Brand	SHARP Industrial TFT-LCD
Diagonal Size	3.5 Inch
Native Resolution	480×800, 3:5
Panel Technology	a-Si TN TFT-LCD, Normally Black, Transflective
Backlight	Built-in WLED, Lifespan ≥70,000 Hours
Typical Brightness	400 cd/m² High Brightness
Contrast Ratio	900:1 (Typical)
Viewing Angle L/R/U/D (CR≥10)	80/80/80/80 (Typ.)(CR≥5)
Color Depth	16.7M, 50% NTSC
Response Time Tr+Td	11/24 (Typ.)(Tr/Td) mm
Refresh Rate	60Hz
Signal Interface	Parallel RGB (1 ch, 8-bit) + SPI, 49 pins FPC
Logic Supply Voltage	3.3V Standard Industrial Voltage
Active Display Area	45.36(H)×75.6(V) mm
Overall Outline Dimension	51.16(H)×87.47(V)×3.04(D) mm
Net Weight	Approx 14.9g
Touch Function	Without touch digitizer
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃

Applications

Portable Handheld Industrial HMI & Field Terminals
Field inspection data collectors, portable PLC debugging controllers, pipeline inspection handheld monitors, factory handheld parameter recording devices, battery-powered outdoor industrial detectors.
Portable Medical Diagnostic Equipment
Handheld vital sign testers, portable blood analysis instruments, field ECG diagnostic terminals, veterinary handheld inspection devices, portable infusion control panels.
Laboratory & Portable Precision Test Instruments
Handheld gas leak detection analyzers, portable power quality testers, optical field measuring equipment, environmental portable data loggers, miniature signal inspection devices.
Light On-board & Small Engineering Auxiliary Displays
Mini forklift handheld parameter screens, portable agricultural machinery control units, small construction vehicle diagnostic handheld terminals, wireless construction site monitoring controllers.
Compact Commercial Portable Smart Devices
Handheld access verification terminals, small portable charging pile parameter screens, industrial barcode data recorders, compact vending machine auxiliary control modules.
