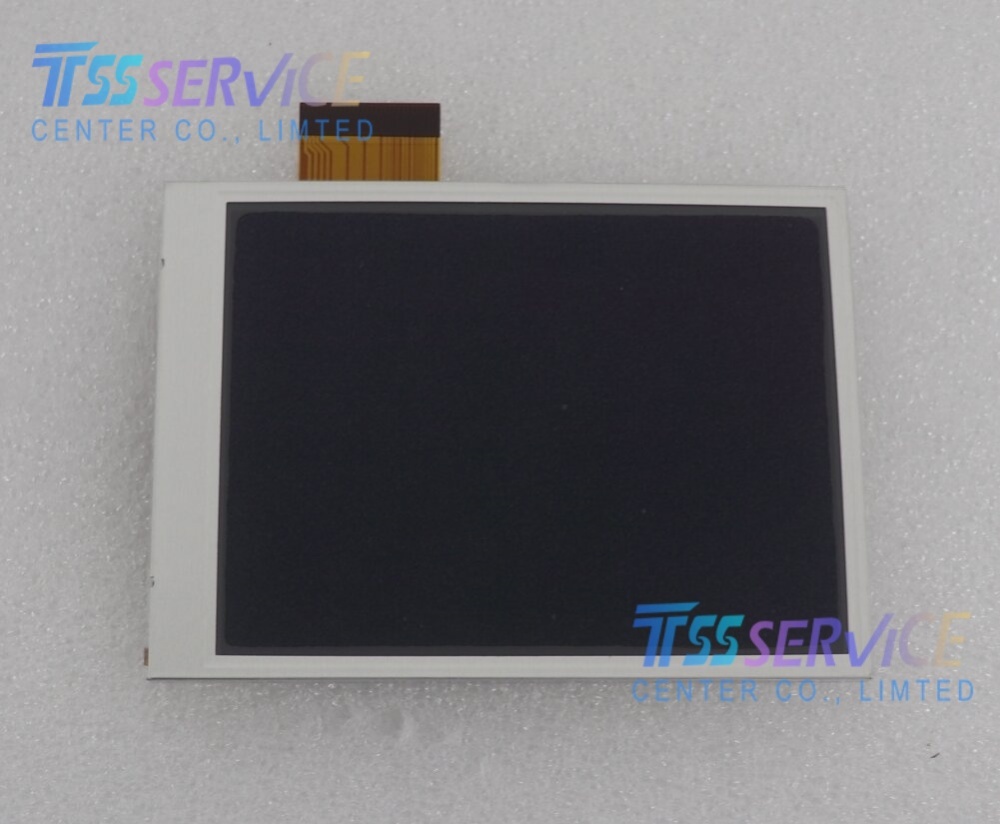

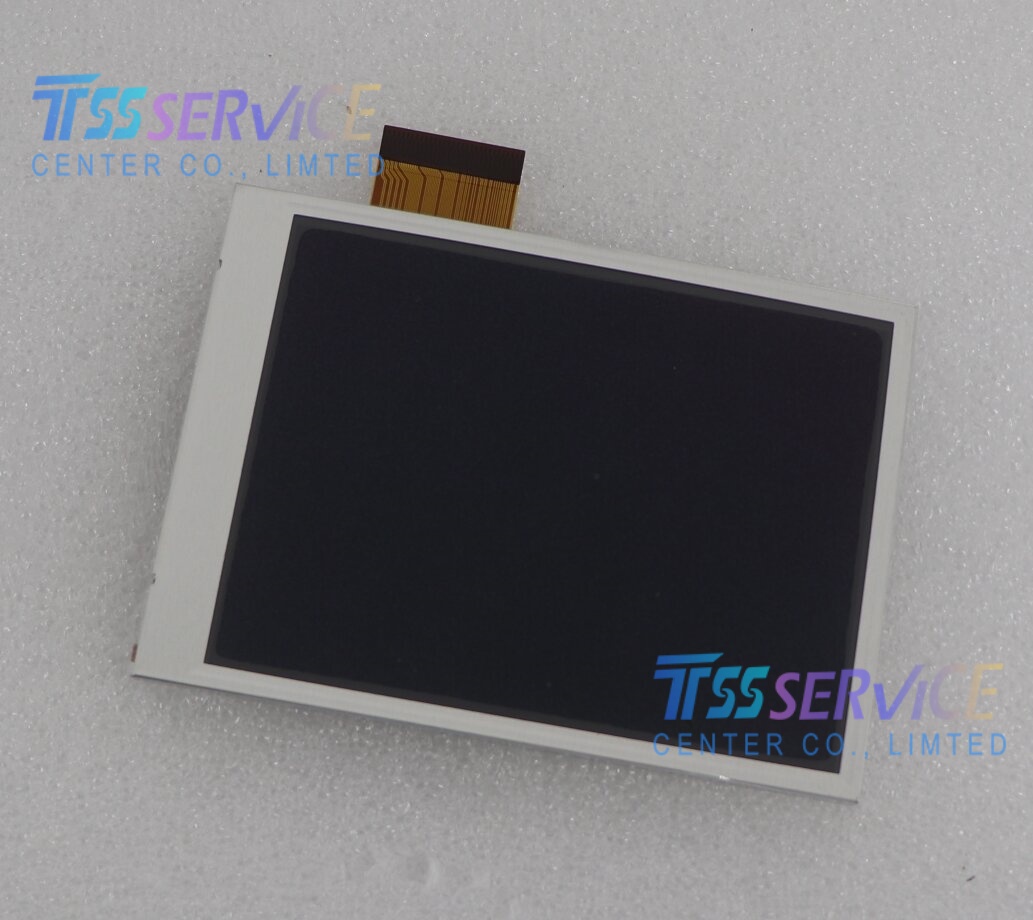

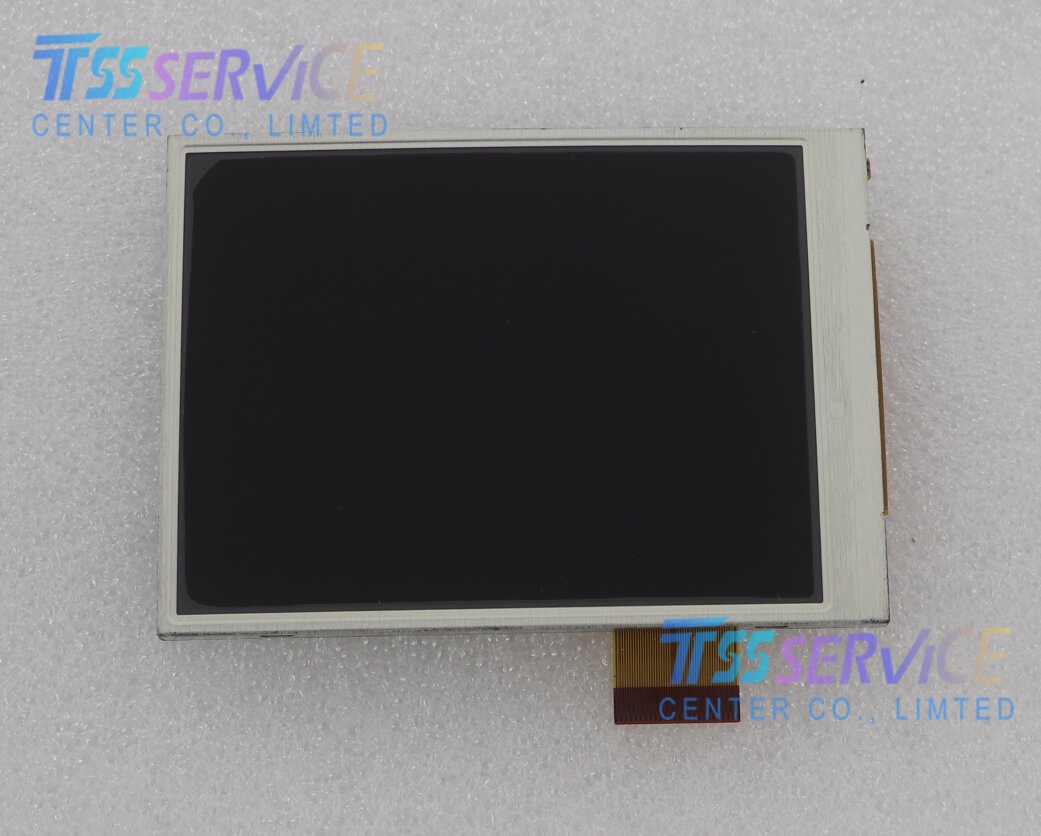

Sharp LS037V7DW03C 3.7 inch 480×640 LCD Panel for Industrial Machine
| Parameter |
Details |
| Manufacturer |
Sharp |
| Model Number |
LS037V7DW03C |
| Panel Type |
CG‑Silicon TFT‑LCD Module (LCM), Normally Black |
| Diagonal Size |
3.7 inch (93.98 mm) |
| Resolution |
480 (RGB) × 640 (VGA, Portrait), 217 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
56.16 (W) × 74.88 (H) mm |
| Outline Dimensions |
65.0 (W) × 89.2 (H) × 3.6 (D) mm |
| Pixel Pitch |
0.117 × 0.117 mm |
| Dot Pitch |
0.039 (W) × 0.117 (H) mm |
| Brightness (Typ) |
200 cd/m² (WLED backlight) |
| Contrast Ratio (Typ) |
200:1 (transmissive) |
| Viewing Angle (Typ, CR≥5) |
80° (L) / 80° (R) / 80° (U) / 80° (D) |
| Display Colors |
262K (8‑bit RGB) |
| Response Time (Typ) |
35 ms (transmissive) |
| Backlight |
White LED (WLED), no touch option |
| Interface |
18‑bit RGB Parallel (TTL) |
| Supply Voltage |
3.3 V (Typ) |
| Operating Temp |
-10 °C ~ +60 °C |
| Storage Temp |
-20 °C ~ +70 °C |
| RoHS |
Compliant |
| Production Status |
Discontinued (Q4 2021) |
LS037V7DW03C is a 3.7-inch portrait VGA LCD designed for handheld, portable, and industrial devices requiring compact size, moderate brightness, and wide viewing angles.
- Handheld Terminals & PDAs
Industrial handheld scanners, barcode readers, mobile data terminals, rugged PDAs.
- Portable Medical & Test Equipment
Handheld meters, patient monitors, portable diagnostic devices, field test tools.
- Industrial Controls & HMI
Small industrial touch panels, equipment displays, factory floor terminals.
- Consumer Electronics
Portable media players, vintage digital cameras, GPS navigation units, portable gaming devices.
- Vehicle & Avionics Displays
Small dashboard displays, portable car diagnostics, avionics control panels.
