Sharp LS084X5LX03 8.4 inch 1024×768 LCD Panel Screen For Industrial

Name: Sharp LS084X5LX03 8.4 inch 1024×768 LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LS084X5LX03
Price: 110 USD
Availability: InStock

SKU: LS084X5LX03

Model P/N: LS084X5LX03
Diagonal Size: 8.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1024(RGB)×768, XGA 152PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$112.00~~ $110.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

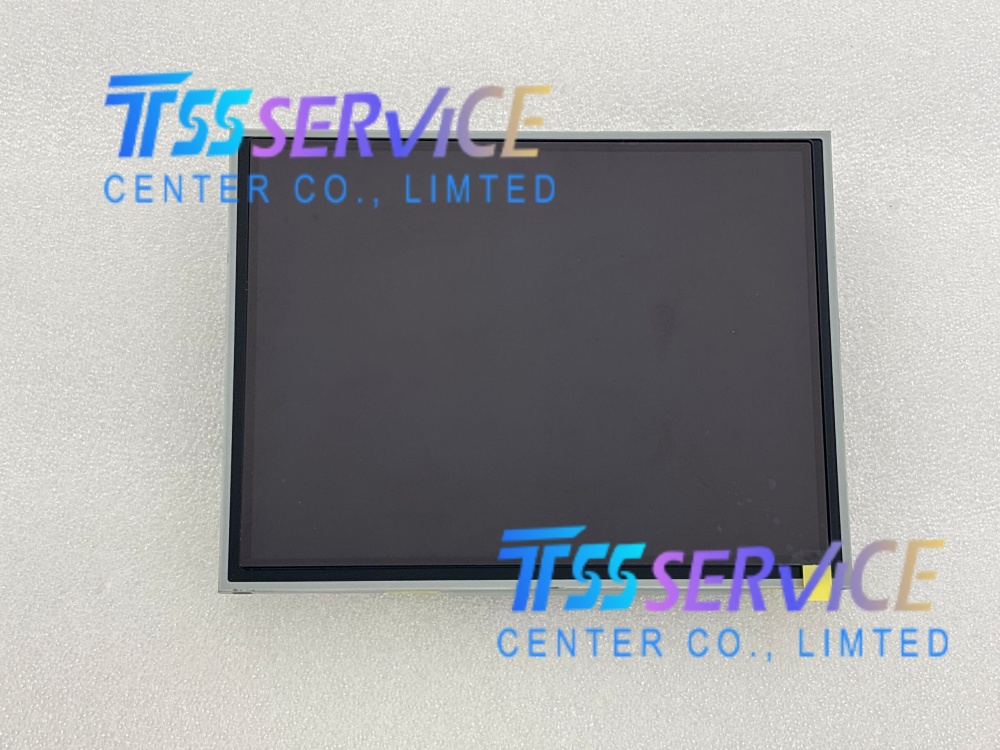

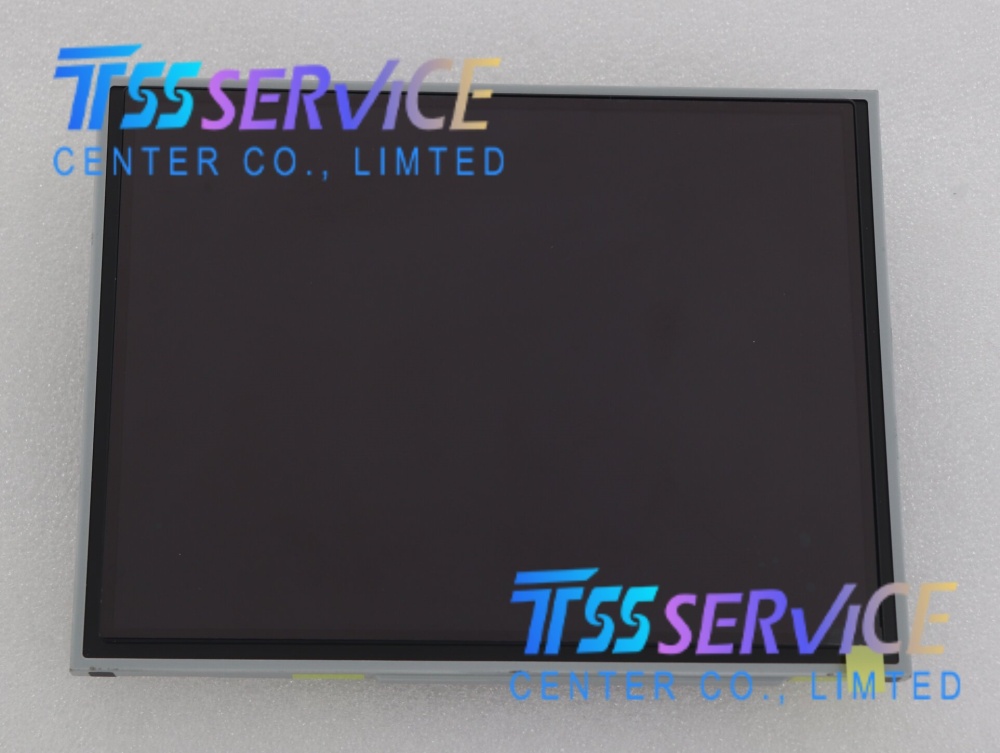

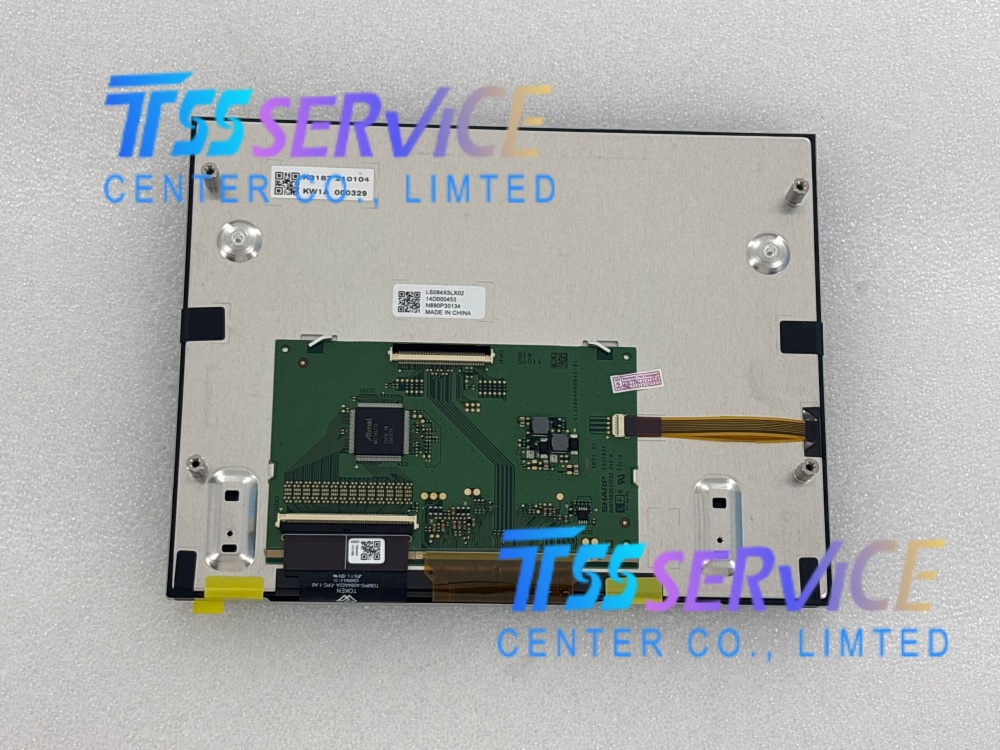

Sharp LS084X5LX03 8.4 inch 1024×768 LCD Panel Screen For Industrial

Parameter	Value
Brand	Sharp
Model	LS084X5LX03
Panel Type	a‑Si TFT‑LCD, Transmissive, Normally Black
Diagonal Size	8.4 inches
Resolution	1024(RGB) × 768 (XGA), 152 PPI
Pixel Format	RGB Vertical Stripe
Aspect Ratio	4:3
Active Area	170.49(W) × 127.872(H) mm
Pixel Pitch	0.1665(W) × 0.1665(H) mm
Surface Treatment	Anti‑Glare (Matte)
Brightness	1000 cd/m² (Typ.)
Contrast Ratio	1300:1 (Typ.)
Display Colors	16.7M (8‑bit)
Viewing Angle	89/89/89/89° (Typ., CR≥10)
Backlight	WLED, Edge‑lit, Long‑life
Interface	LVDS
Supply Voltage	3.3V / 12V (Typ.)
Refresh Rate	60 Hz
Operating Temp	−40°C to +85°C
Storage Temp	−40°C to +95°C
RoHS	Compliant
Touch Panel	Optional (Capacitive/Resistive)

LS084X5LX03 is a high‑brightness, wide‑temperature industrial LCD optimized for outdoor visibility, industrial control, automotive, medical, and rugged embedded systems where reliable performance in harsh environments is critical.
