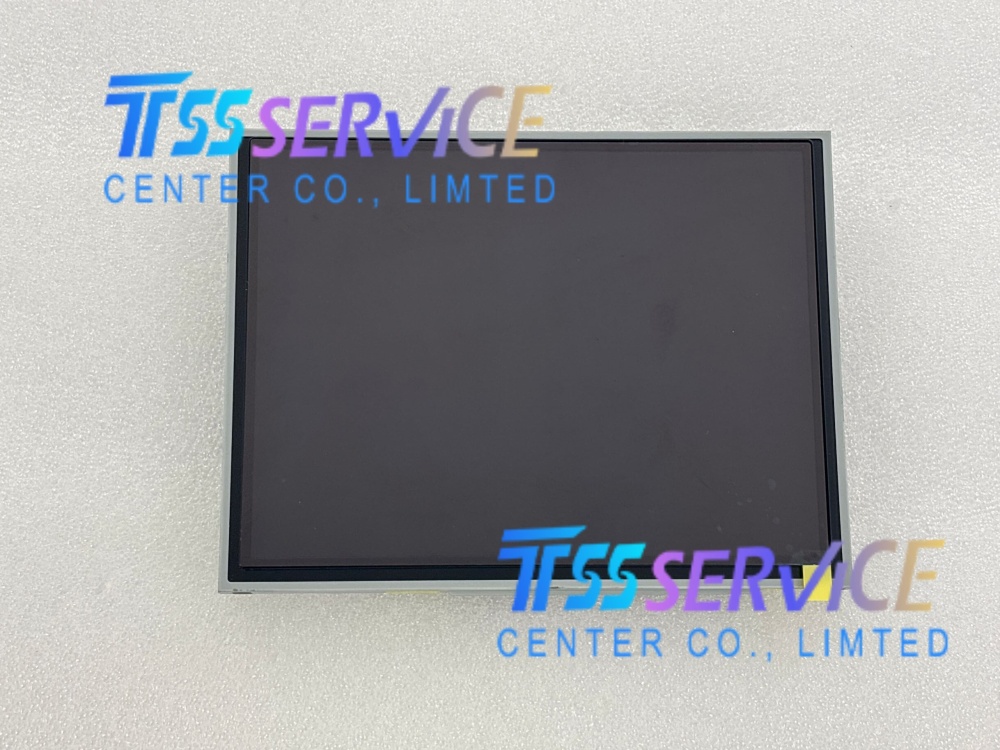

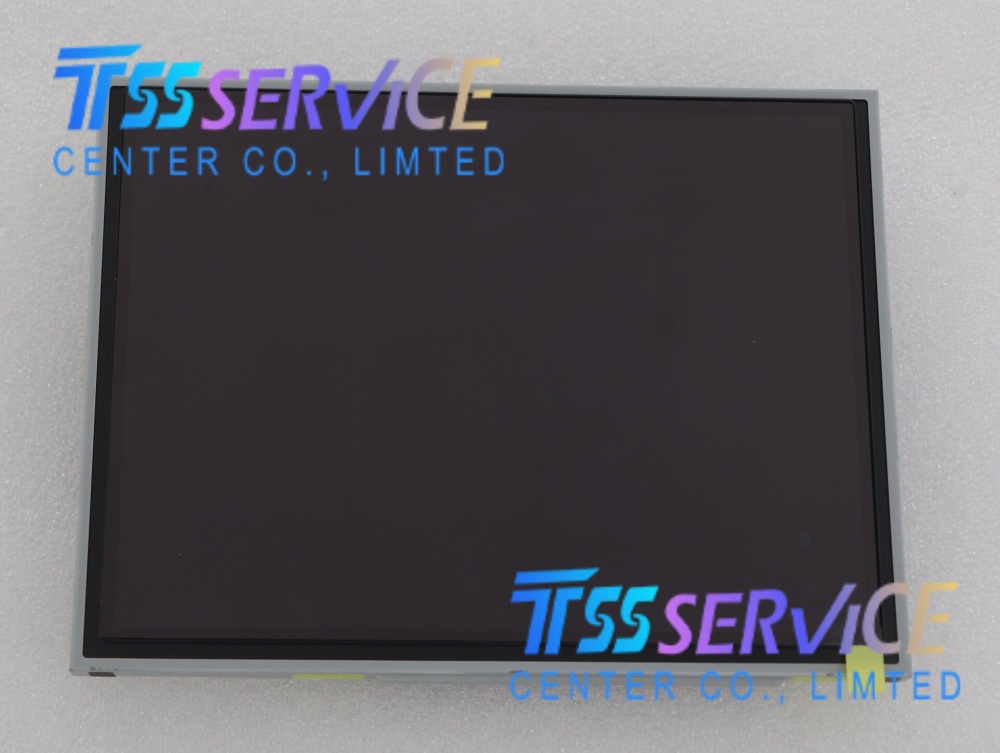

Sharp LS084X5LX03A 8.4 inch LCD Panel for Industrial Machine
| Parameter |
Details |
| Manufacturer |
Sharp |
| Model Number |
LS084X5LX03A |
| Panel Type |
a-Si TFT-LCD, IPS, Normally Black, Transmissive |
| Diagonal Size |
8.4 inch |
| Resolution |
1024 × 768 (XGA), 4:3 Aspect Ratio |
| Active Area |
170.49(W) × 127.87(H) mm |
| Pixel Pitch |
0.1665 × 0.1665 mm |
| Surface |
Clear, Hard Coating |
| Brightness (Typ.) |
1000 cd/m² (High Brightness) |
| Contrast Ratio (Typ.) |
1300:1 |
| Viewing Angle (CR≥10) |
89/89/89/89 (Left/Right/Up/Down) |
| Display Colors |
16.7M (8-bit) |
| Response Time (Max.) |
25 ms (Tr+Td) |
| Backlight |
Side-entry WLED (8S3P), 50,000 hours lifetime, No driver included |
| Signal Interface |
LVDS (1 channel, 8-bit), 50-pin connector |
| Operating Temperature |
-40°C ~ +85°C |
| Storage Temperature |
-40°C ~ +95°C |
| Touch Panel |
Projected Capacitive Touch Screen |
| RoHS |
Compliant |
| Application Grade |
Automotive & Industrial Grade |
LS084X5LX03A is an 8.4-inch high-brightness IPS automotive LCD module with wide temperature tolerance and capacitive touch, primarily used in:
- Automotive Infotainment Systems
Car head units, in-vehicle navigation displays, central control panels for Dodge Ram 22/23 models.
- Industrial HMI & Control Panels
Factory automation terminals, rugged industrial touchscreens, and process control interfaces.
- Outdoor & Sunlight Readable Devices
Outdoor industrial terminals, vehicle-mounted monitoring systems, and marine equipment displays.
- Embedded & Rugged Computers
Industrial panel PCs, vehicle-mounted computers, and military-grade display terminals.
- Test & Measurement Instruments
Portable oscilloscopes, signal analyzers, and field test equipment.
