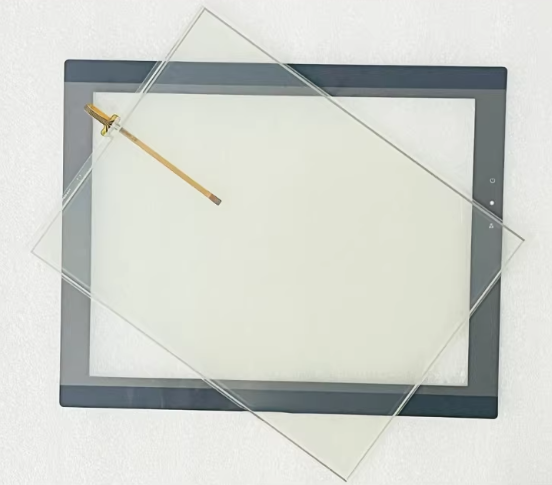

New Touch Screen MT8150X
1. Display Specifications
Parameter Specification Notes
Display Type 15" TFT LCD
Resolution 1024 × 768 pixels XGA
Display Colors 65,536 colors
Brightness 350 cd/m²
Contrast Ratio 550:1
Backlight Type CCFL x 2 Cold Cathode Fluorescent Lamp
Backlight Lifetime 50,000 hours Typical half-life

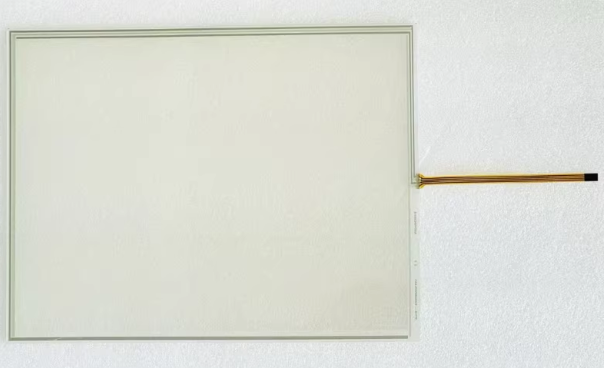

2. Touch Panel Specifications
Parameter Specification Notes
Touch Technology 4-wire Analog Resistive
Touch Accuracy 2 mm
Surface Hardness 4H
Transparency 85% or higher
Touch Lifespan 1,000,000+ touches
3. Processor & Memory
Parameter Specification Notes
CPU AMD Geode LX800 500 MHz core processor
Flash Memory (DOM) 256 MB Disk-on-Module for application storage
System Memory (RAM) 256 MB
Recipe Memory Yes Built-in
Real-Time Clock (RTC) Yes Battery-backed
4. Communication Interfaces
Interface Type Notes
Serial Port COM1 RS-232 / RS-485 2W/4W
Serial Port COM2 RS-232
Serial Port COM3 RS-232 / RS-485 2W
Ethernet 10/100Base-T x 1 RJ45 connector
USB USB 2.0 x 3 For peripherals (flash drives, keyboard, mouse) and programming
Audio Output Line Out x 1
Audio Input MIC In x 1
SD Card Slot Yes For data storage and transfer
CF Card Slot Yes For data storage and transfer
5. Electrical Specifications
Parameter Specification Notes
Input Voltage 24 VDC ± 10%
Current Consumption 1.25 A – 1.6 A @ 24 VDC
Power Consumption Approx. 30 W – 38.4 W
Power Isolation Built-in protection Ensures stable operation in complex environments
Dielectric Withstand 500 VAC for 1 minute
6. Physical Specifications
Parameter Specification Notes
Dimensions (W × H × D) 366 × 293 × 55 – 57 mm
Panel Cutout (W × H) 352 × 279 mm
Weight 2.9 kg
Housing Material Industrial plastic / Metal
Cooling Method Natural air circulation
7. Environmental Specifications
Parameter Specification Notes
Front Panel Protection IP65 / NEMA4 Dust-tight and protected against water jets
Operating Temperature 0°C to 45°C (some sources list up to 50°C)
Storage Temperature -20°C to 60°C
Operating Humidity 10% to 90% RH (non-condensing) @ 40°C
Vibration Resistance 10 to 25 Hz, 2G for 30 min (X, Y, Z directions)
EMC Compliance FCC Class A, CE certified
8. Certifications & Standards
Certification Specification Notes
CE EN50081-2, EN50082-2
UL Yes (cULus)
RoHS Compliant
Front Panel IP65 / NEMA4
