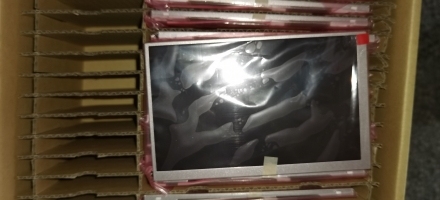

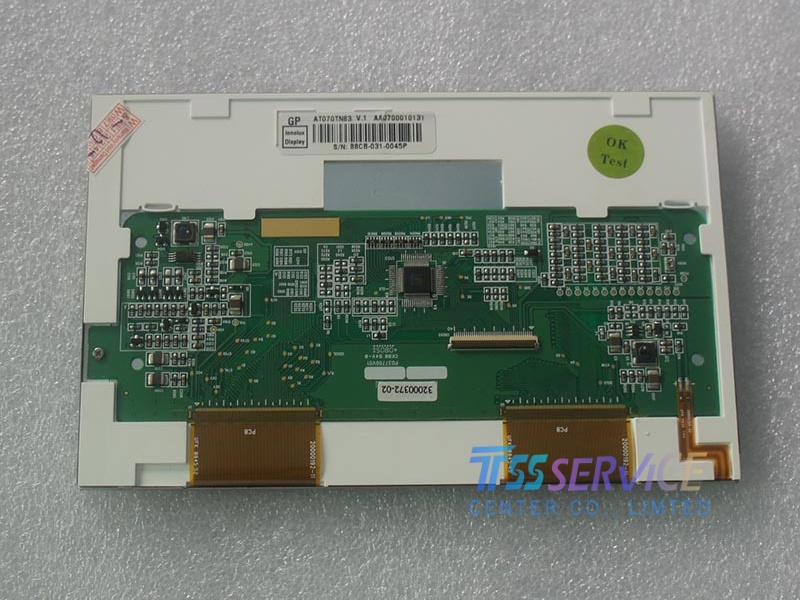

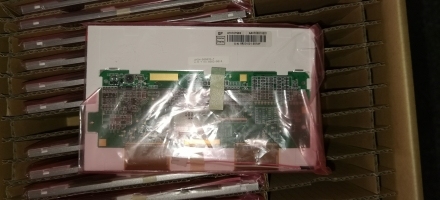

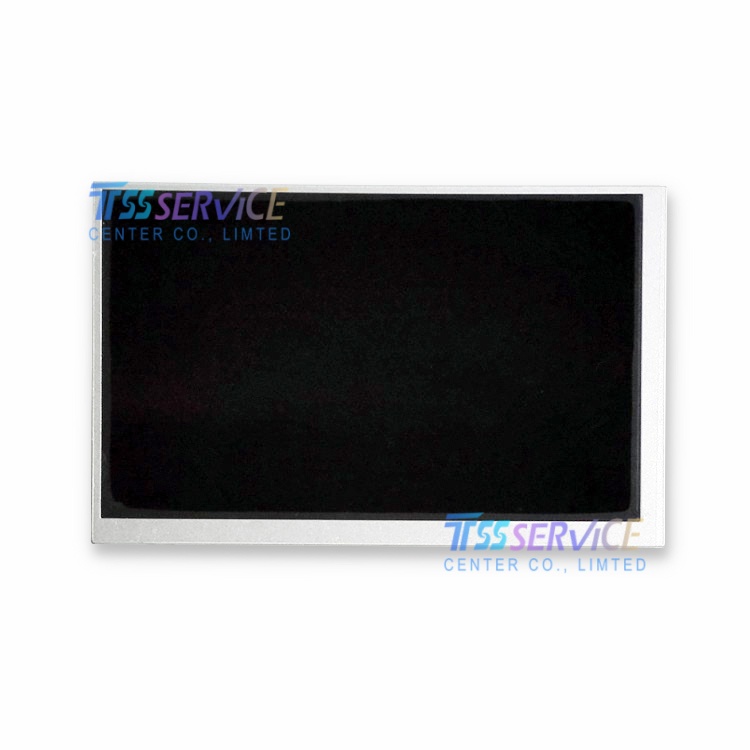

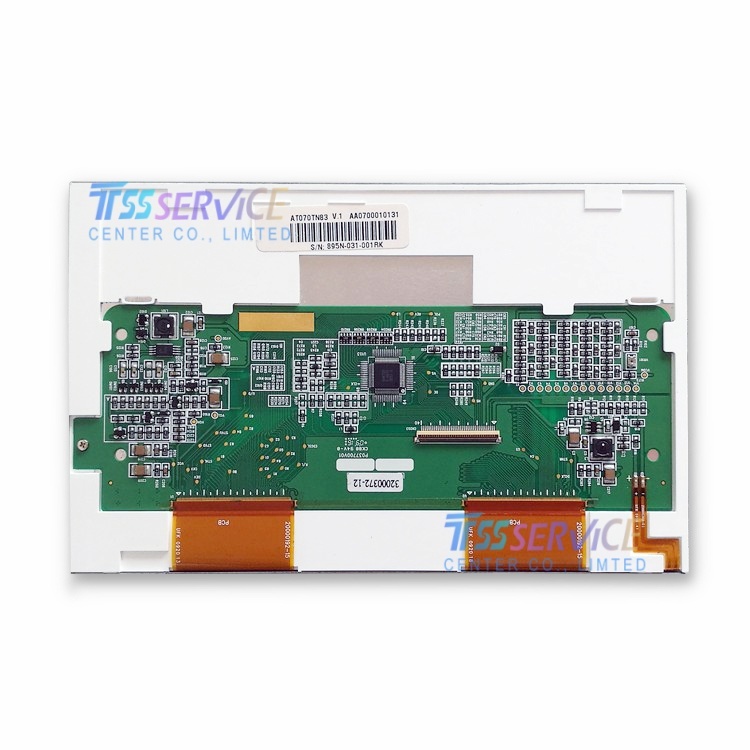

AT070TN83 V.1 Brand new innolux display 7inch TFT LCD module

Name: AT070TN83 V.1 Brand new innolux display 7inch TFT LCD module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AT070TN83 V.1.1
Price: 132 USD
Availability: InStock

SKU: AT070TN83 V.1.1

Model :AT070TN83 V.1
Size:7"
Resolution:800(RGB)×480, WVGA 133PPI
Interface Type:TTL (1 ch, 6-bit) , 40 pins Connector
Pixel Format:RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$138.00~~ $132.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

INNOLUX LCD screen AT070TN83 V.1 : Main specifications
AT070TN83 V.1 is a brand new 7-inch TFT-LCD display module from Innolux, offering a resolution of 800 × 480 pixels for vibrant color reproduction and sharp image quality. Designed for reliability and versatility, this module is suitable for a wide range of applications, including industrial control panels, automotive displays, medical equipment, and consumer electronics. Innolux's advanced manufacturing ensures high brightness, wide viewing angles, and stable performance. With its robust construction and dependable operation, this module provides a high-quality and cost-effective display solution for modern embedded and interactive systems.

Brand	INNOLUX
Model	AT070TN83 V.1
Panel-type	a-Si TFT-LCD, LCM
Size	7"
Resolution	800(RGB)×480, WVGA 133PPI
Active Area	152.4(W)×91.44(H) mm
Outline Size	165(H)×104(V) ×5.8(D) mm
Display Mode	TN, Normally White, Transmissive
Brightness	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Display Colors	262K 50% NTSC
Lamp Type	WLED , 20K hours , With LED Driver
Signal Interface	TTL (1 ch, 6-bit) , 40 pins Connector
Touch Screen	Without
Input Voltage	3.3V (Typ.)
Operating Temp	-20 ~ 70 °C
Storage Temp	-30 ~ 80 °C
