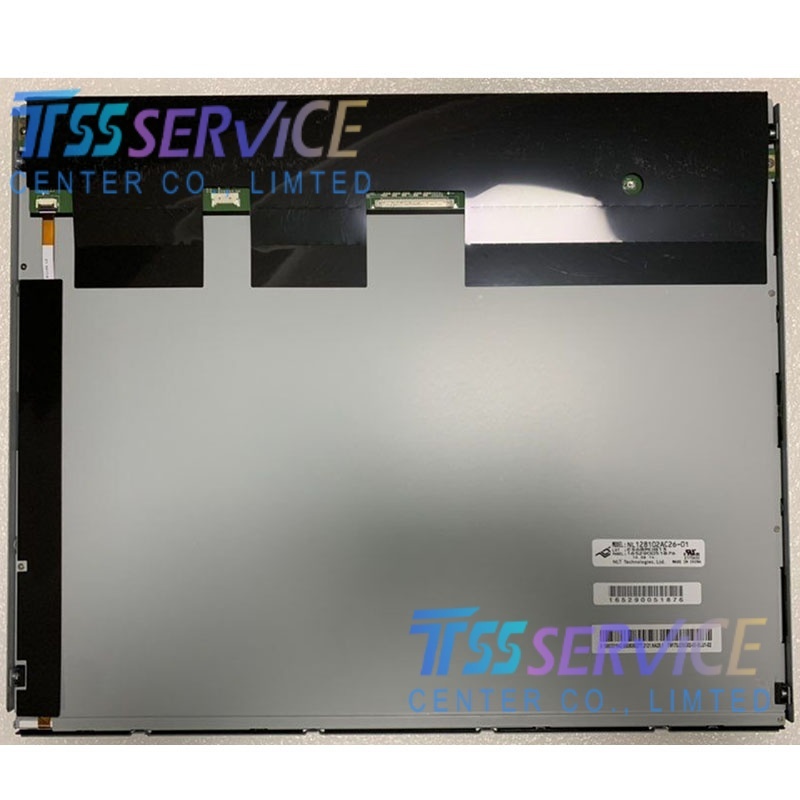

NLT NL128102AC26-01 17 inch LCD Display Panel For Industrial

Name: NLT NL128102AC26-01 17 inch LCD Display Panel For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL128102AC26-01
Price: 408 USD
Availability: InStock

SKU: NL128102AC26-01

Model P/N: NL128102AC26-01
Diagonal Size: 17"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1280(RGB)×1024, SXGA 96PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$410.00~~ $408.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

NLT NL128102AC26-01 17 inch LCD Display Panel For Industrial

Parameter	Specification	Unit
Manufacturer	NLT Technologies	-
Model Number	NL128102AC26-01	-
Panel Type	a‑Si TFT‑LCD, TN, Normally White, Transmissive	-
Diagonal Size	17.0	inch
Resolution	1280 × 1024	pixels (SXGA)
Pixel Pitch	0.264 × 0.264	mm
Pixel Arrangement	RGB Vertical Stripe	-
Active Area	337.92 × 270.336	mm
Outline Dimensions	358.5 × 296.5 × TBD	mm
Weight	1.90	kg (Typ.)
Surface Treatment	Anti‑glare (AG), 3H Hard Coating	-
Brightness	400	cd/m² (Typ.)
Contrast Ratio	1000:1	(Typ.)
Response Time	20	ms (Tr+Td, Typ.)
Viewing Angle	80/80/80/80	(L/R/U/D, Typ., CR≥10)
Color Depth	8‑bit	16.7M Colors
Backlight	WLED, Edge‑lit, 50K hrs lifetime	-
Interface	LVDS (2 ch, 8‑bit), 30 pins	-
Input Voltage	5.0	V (Typ.)
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
Refresh Rate	60	Hz

Specific Applications

Industrial HMI & Control Panels: Factory automation, CNC machines, mechanical equipment consoles, and PLC monitoring systems.
Industrial Panel PCs: Integrated into rugged industrial computers for on‑site data monitoring and control.
Test & Measurement Instruments: Oscilloscopes, data acquisition systems, laboratory analyzers, and professional testing equipment.
Medical & Laboratory Devices: Patient monitors, biochemical analyzers, and professional medical display terminals.
Transportation & Railway: Vehicle‑mounted information terminals, railway control center displays, and traffic monitoring systems.
Energy & Petrochemical Monitoring: Environmental monitoring and safety control systems for oilfields, refineries, and power stations.
