NL6448BC33-95D 10.4"640*480 industrial Lcd Display Panel For NEC

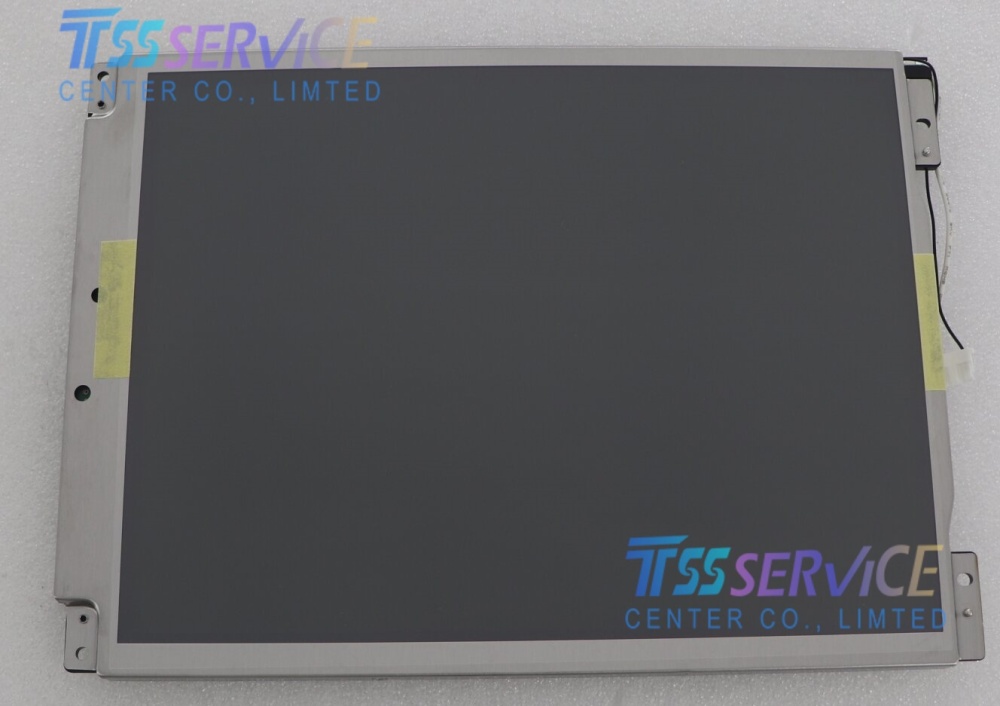

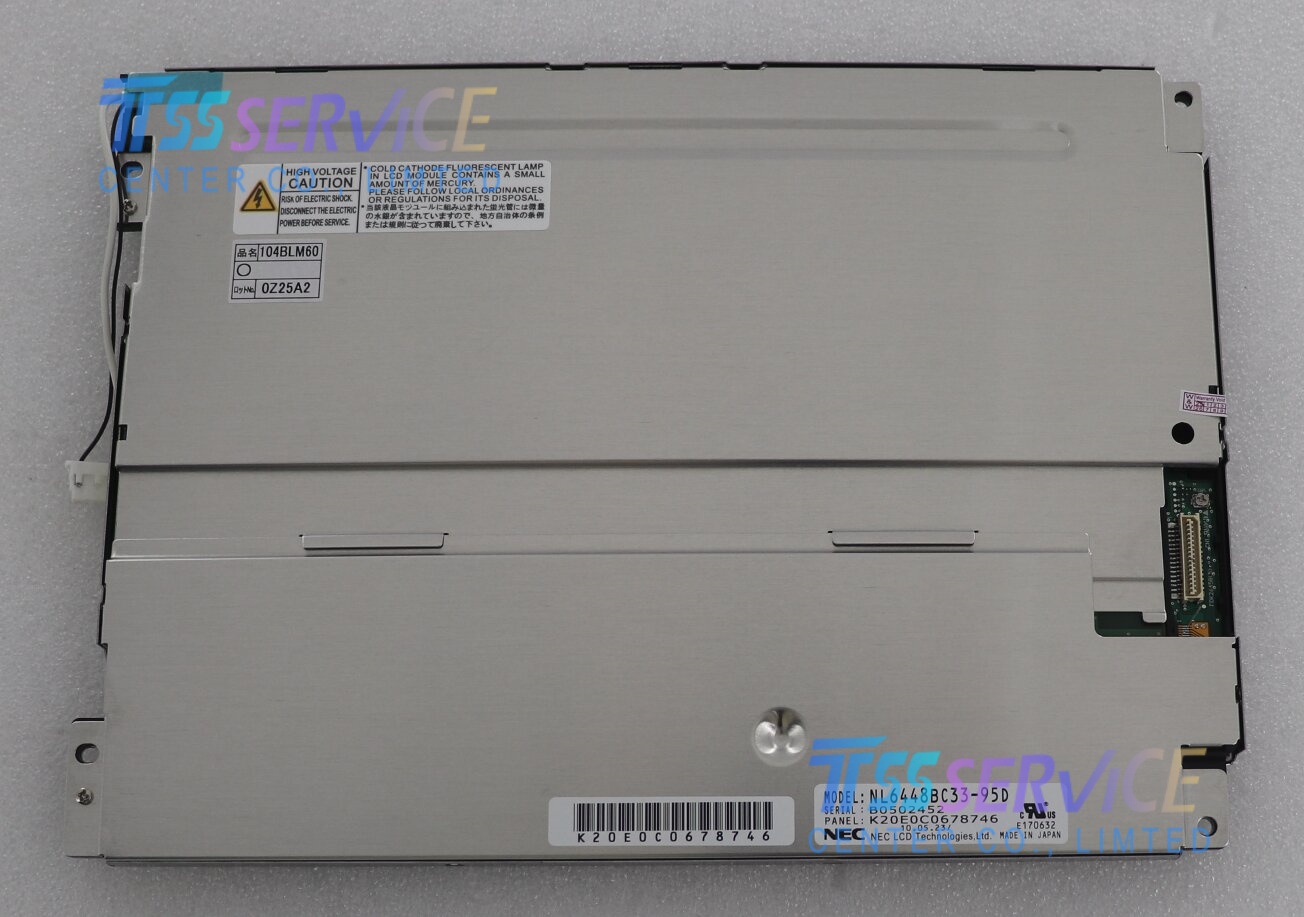

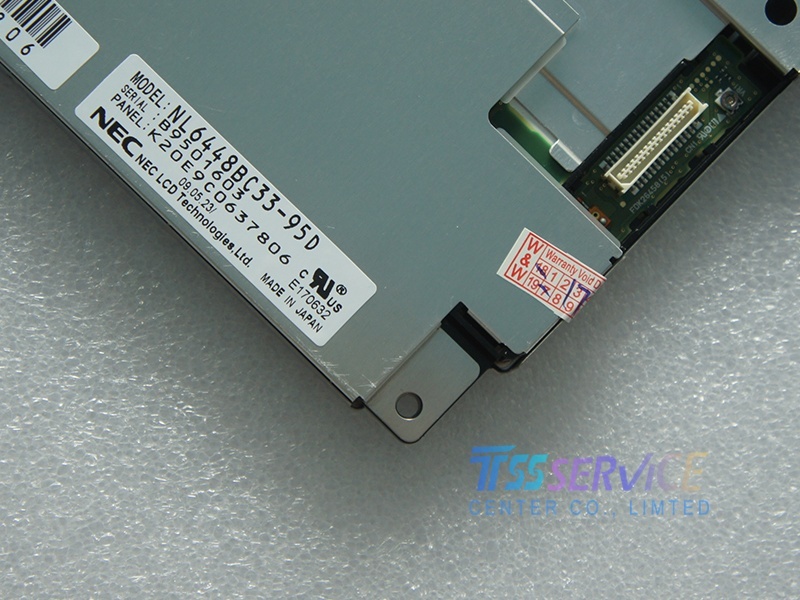

Name: NL6448BC33-95D 10.4"640*480 industrial Lcd Display Panel For NEC
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL6448BC33-95D
Price: 120 USD
Availability: InStock

SKU: NL6448BC33-95D

Model P/N : NL6448BC33-95D
Diagonal Size: 10.4''
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1024(RGB)×768, XGA 85PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$123.00~~ $120.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The NEC NL6448BC33-95D is a 10.4-inch a-Si TFT-LCD module engineered by NEC (now part of NLT Technologies) for demanding industrial applications . This model represents a mature and reliable display solution widely used in factory automation, medical equipment, and other professional environments requiring long-term availability and proven performance .

Brand	NEC
Model P/N	NL6448BC33-95D
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 76PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	216.2(W)×163.4(H) mm
Outline Dim.	246.5(H)×179.4(V) ×10(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	10/40 (Typ.)(Tr/Td)
Viewing Angle	70/70/40/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 40% NTSC
Light Source	CCFL [1 pcs], 50K hours, W/O Driver
Weight	530/550g (Typ./Max.)
Designed For	Without
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6-bit), 31 pins Connector
Power Supply	3.3/5.0V (Typ.)(VCC)
Environment	Operating Temperature: 0 ~ 55 °C; Storage Temperature: -25 ~ 70 °C

Applications:
With its industrial-grade design, proven reliability, and standardized interface, the NEC NL6448BC33-95D is particularly well-suited for factory automation controllers, industrial control panels, medical devices (such as patient monitors), measuring instruments, CNC machinery, and other embedded systems requiring a durable and dependable display solution .
