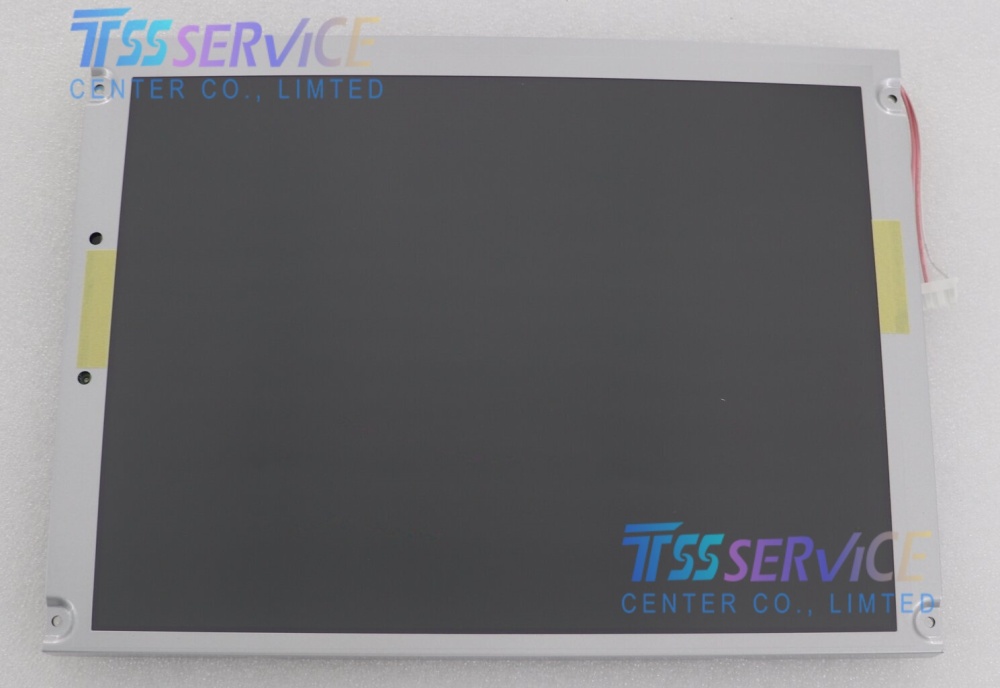

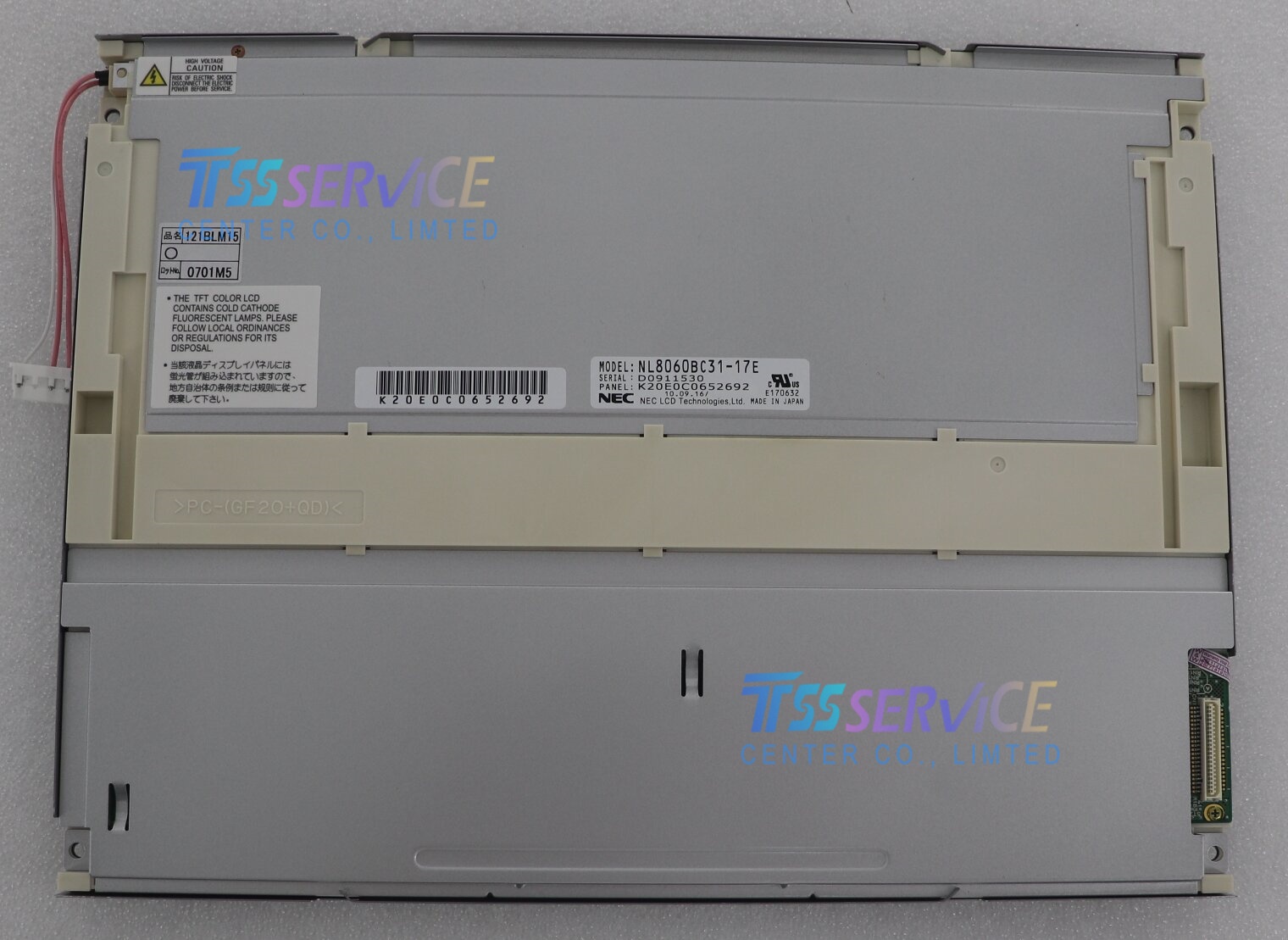

NL8060BC31-17E 12.1inch 800×600 NEC Lcd Display Panel

Name: NL8060BC31-17E 12.1inch 800×600 NEC Lcd Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL8060BC31-17E
Price: 70 USD
Availability: InStock

SKU: NL8060BC31-17E

Model P/N：NL8060BC31-17E
Diagonal Size：12.1"
Panel Type：a-Si TFT-LCD, LCM
Resolution：800(RGB)×600, SVGA 82PPI
Pixel Format： RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$70.00~~ $70.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The NEC NL8060BC31-17E is a high-performance 12.1-inch a-Si TFT-LCD module, specifically engineered for demanding industrial and embedded applications. As a trusted model from NEC, this display combines robust reliability with enhanced optical characteristics, making it an excellent choice for both new designs and legacy system replacements requiring superior screen performance.

Brand	NEC
Model P/N	NL8060BC31-17E
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 82PPI
Pixel Format	RGB Vertical Stripe
Active Area	246(W)×184.5(H) mm
Bezel Opening	249.0(W)×187.5(H) mm
Outline Dim.	280(H)×210(V)×13.7(D) mm
Treatment	Clear, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	15/55 (Typ.)(Tr/Td)
Viewing Angle	55/55/40/50 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 43% NTSC
Light Source	CCFL [2 pcs], W/O Driver
Weight	760/800g (Typ./Max.)
Frame Rate	60Hz
Touch Panel	Without

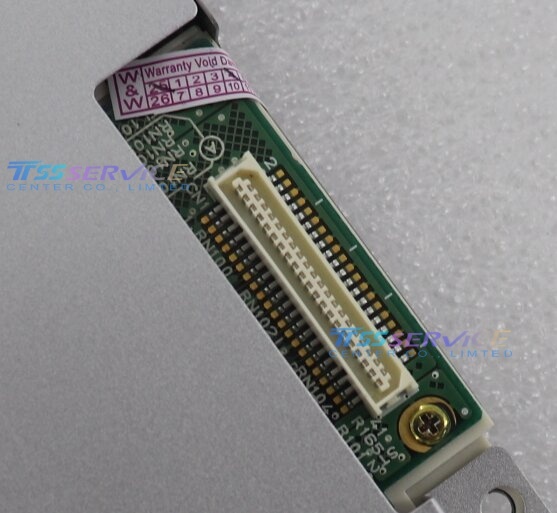

Interface Type	CMOS (1 ch, 6-bit), 41 pins Connector
Power Supply	3.3/5.0V (Typ.)(VCC)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C; Vibration Level: 2.0G (19.6 m/s²)
