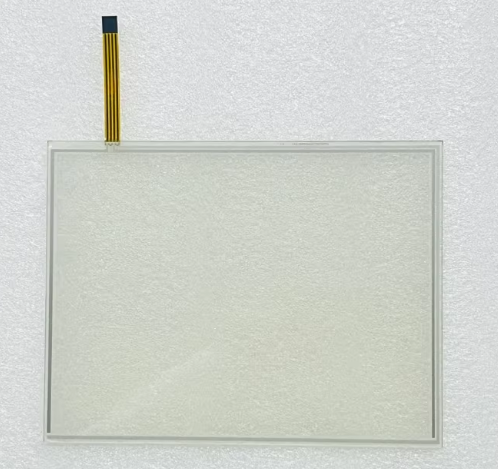

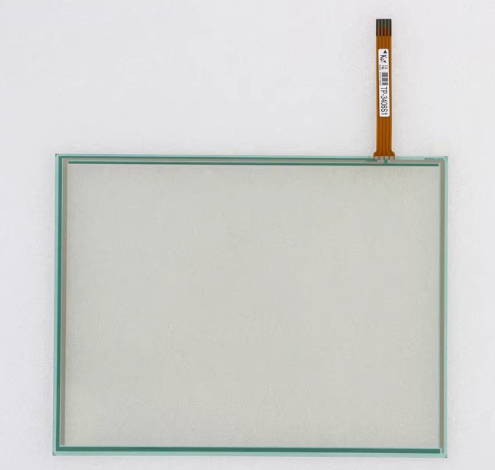

New Touch Screen PX TP-3406S1
Display Characteristics:
Display Type: High-brightness TFT LCD (Thin Film Transistor Liquid Crystal Display)
Screen Size: Typically 5.7-inch or 6.5-inch diagonal
Resolution: 320 x 240 pixels (QVGA) or 640 x 480 pixels (VGA)
Color Depth: 256 colors or 65,536 colors (16-bit) for clear icon and text display
Backlight: Long-life LED backlight with adjustable brightness
Viewing Angle: Optimized for industrial environment viewing (typically 6 o'clock or 12 o'clock)
Touch Screen Technology:
Type: Analog Resistive Touch Screen (4-wire or 5-wire)
Durability: Designed for industrial use with high cycle life (1 million+ touches)
Activation Force: Light touch activation (typically 30-50g)
Transparency: >80% for excellent visibility
Glove Compatibility: Can be operated with industrial gloves
Physical Characteristics:
Construction: Rugged industrial-grade front panel with IP65 protection
Bezel Material: Reinforced plastic or die-cast metal
Mounting: Panel-mount design with gasket seal
Dimensions: Approximately 200mm x 150mm x 50mm (varies by model)
Cut-out Dimensions: Standardized for Hitachi printer enclosures
Weight: Approximately 0.8 - 1.2 kg
Environmental Specifications:
Parameter Conditions Min Typ Max Unit
Operating Temperature - 0 - +50 °C
Storage Temperature - -20 - +60 °C
Operating Humidity Non-condensing 10 - 90 %RH
Protection Rating Front panel (when mounted) - IP65 - -
Rear enclosure - IP20 - -
Vibration Resistance - - Compliant with IEC 60068-2-6 - -
Shock Resistance - - Compliant with IEC 60068-2-27 - -
Electrical Specifications:
Parameter Symbol Conditions Min Typ Max Unit
Supply Voltage VDD From printer main unit +24 +24 +24 VDC
Power Consumption P Backlight on - 5 - 8 10 W
Backlight Life - LED backlight 50,000 - - hours
Interface to Printer - Proprietary Hitachi interface - RS-422/485 or CAN bus - -
ESD Protection - Contact discharge ±4 - - kV
Air discharge ±8 - - kV
Interface Connectors:
Connector Type Signal Description
Power/Data D-sub 15-pin (female) +24V, GND, RS-422/485 Main connection to printer controller
Optional USB Type B (if available) USB 2.0 For data transfer/firmware updates
Optional Ethernet RJ45 (if available) 10/100 Base-T For network connectivity
