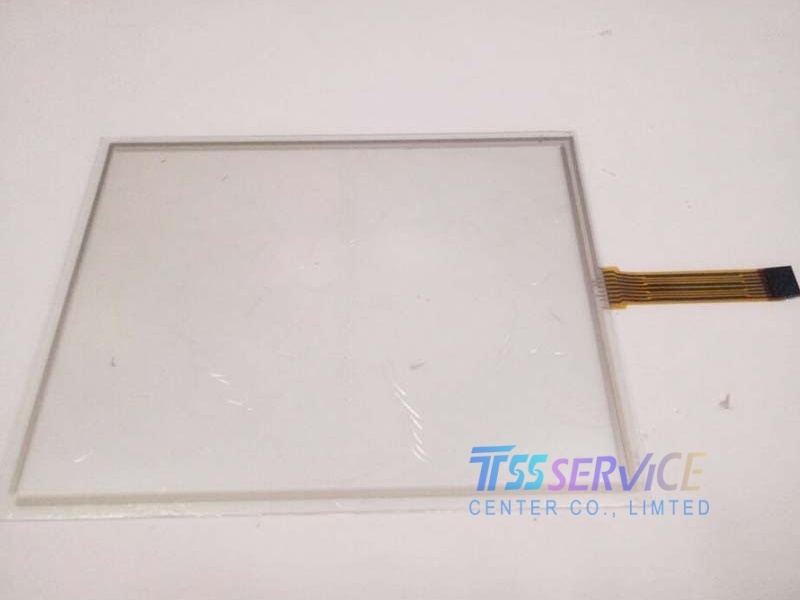

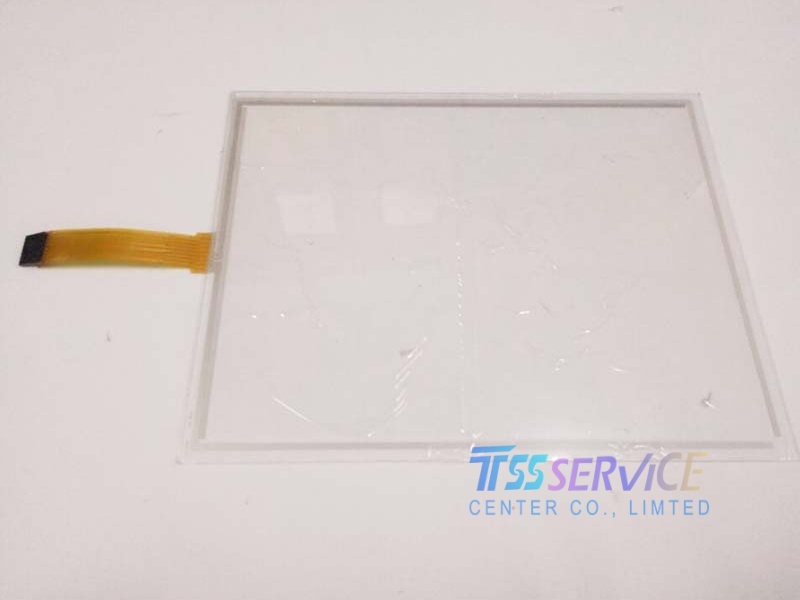

New Touch Screen SCN A5-FLT10.4-Z03-OH1-R
1. Physical Specifications
Parameter Specification Notes
Product Type Touch Screen Digitizer / Replacement Glass Panel
Screen Size 10.4 inches Diagonal measurement
Series A5-FLT Series Flat touch screen design
Model Number SCN A5-FLT10.4-Z03-OH1-R Complete part number
Touch Technology Analog Resistive 4-wire or 5-wire typical for industrial applications
Dimensions Standard 10.4" form factor Exact dimensions: ~225mm × 180mm (typical for 10.4")
Active Area Approximately 211mm × 158mm Corresponds to 10.4" diagonal
Construction Glass substrate with transparent conductive coating Durable for industrial use
Surface Finish Anti-glare (typical for industrial touch screens) Reduces reflections
2. Electrical & Interface Specifications
Parameter Specification Notes
Touch Interface Flexible flat cable (FFC) connector Standard resistive touch interface
Connector Pinout 4-pin or 5-pin typical Depends on exact resistive technology
Operating Voltage 3.3V - 5V DC Typical for resistive touch controllers
Activation Force 30-100 grams Light touch activation
Linearity < 1.5% Ensures accurate touch positioning
Transparency > 80% Good optical clarity
Contact Resistance < 200Ω (typical between layers)
Insulation Resistance > 20MΩ at 25V DC
Touch Lifecycle > 1 million touches Durable for industrial use
3. Environmental Specifications
Parameter Specification Notes
Operating Temperature -20°C to +70°C Industrial temperature range
Storage Temperature -30°C to +80°C
Operating Humidity 10% to 90% RH (non-condensing)
Surface Hardness 3H - 6H pencil hardness Scratch-resistant
Chemical Resistance Resistant to mild industrial solvents Front surface only
ESD Protection ±8kV air discharge, ±4kV contact discharge
4. Key Features
Feature Description
Direct Replacement Designed to replace cracked or unresponsive touch screens on industrial equipment
Plug-and-Play Matches original specifications for easy installation
Glove Compatibility Resistive technology allows operation with gloved hands (essential for industrial environments)
Dust and Moisture Resistance Sealed edges prevent contamination when properly installed
Cost-Effective Repair Extends life of expensive industrial equipment without full display replacement
Anti-Glare Surface Reduces reflections in bright industrial lighting
High Durability Withstands industrial use conditions
5. Typical Applications
Industry / Equipment Application
Industrial HMIs Replacement for damaged touch screens on operator panels
CNC Machine Controls Touch interface repair for machine tool controllers
Packaging Equipment Display repair for packaging line control panels
Factory Automation General purpose touch screen replacement for various industrial equipment
Process Control Touch panels for chemical, pharmaceutical, food processing
Test & Measurement Repair of laboratory instrument displays
Medical Devices Touch screen replacement for diagnostic equipment (non-critical)
6. Installation Notes
Consideration Recommendation
Compatibility Verification Confirm physical dimensions and connector type match original before installation
Adhesive May require double-sided adhesive tape for mounting (typically not included)
Controller Compatibility Ensure existing touch controller supports the replacement panel (resistive type is standard)
Calibration Recalibration may be required after installation
Professional Installation Recommended for optimal alignment and longevity
Clean Environment Install in dust-free environment to prevent particles between glass and LCD
