1，Condition: New，Grade A

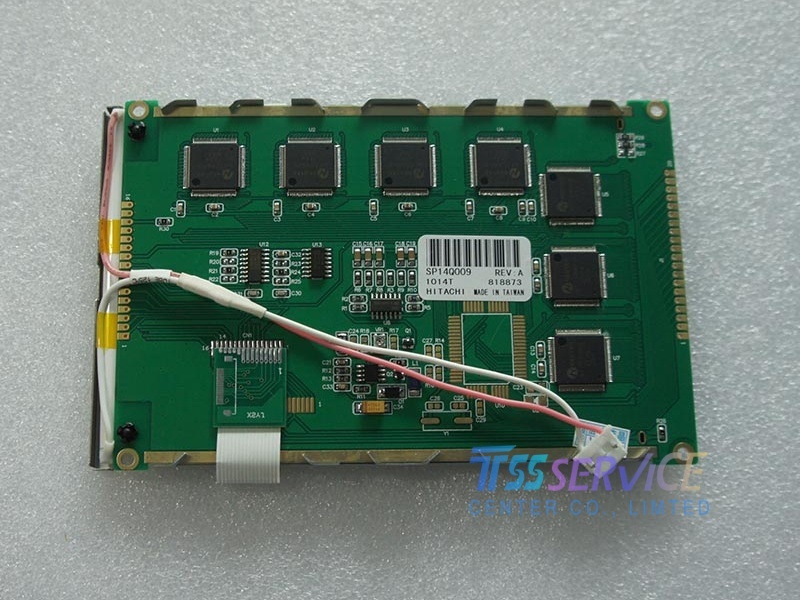

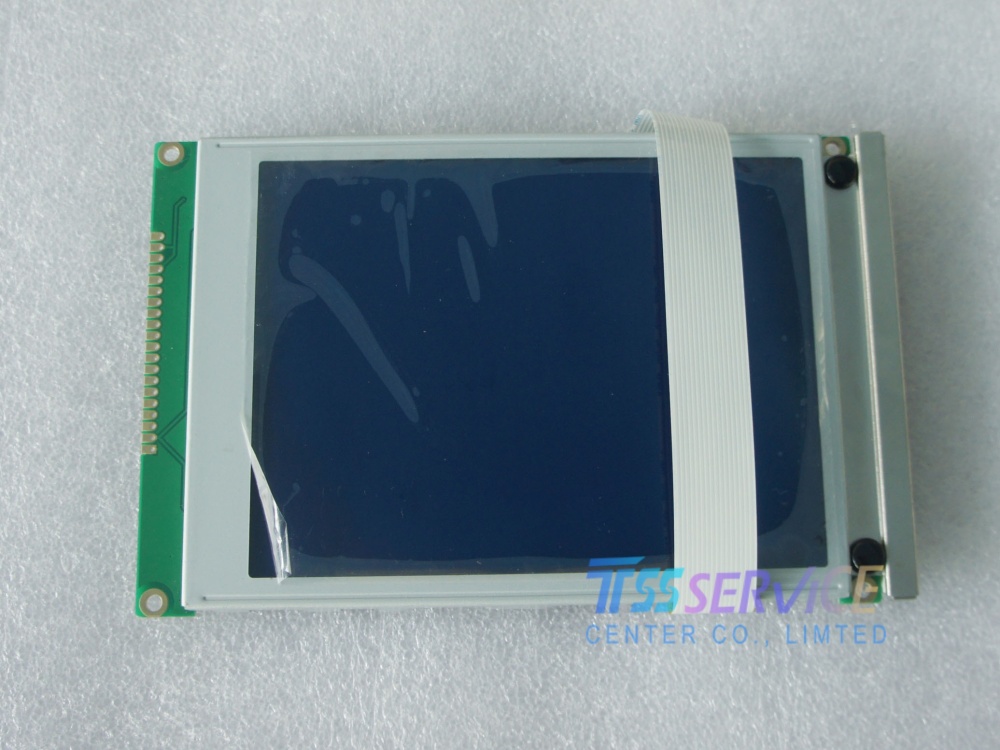

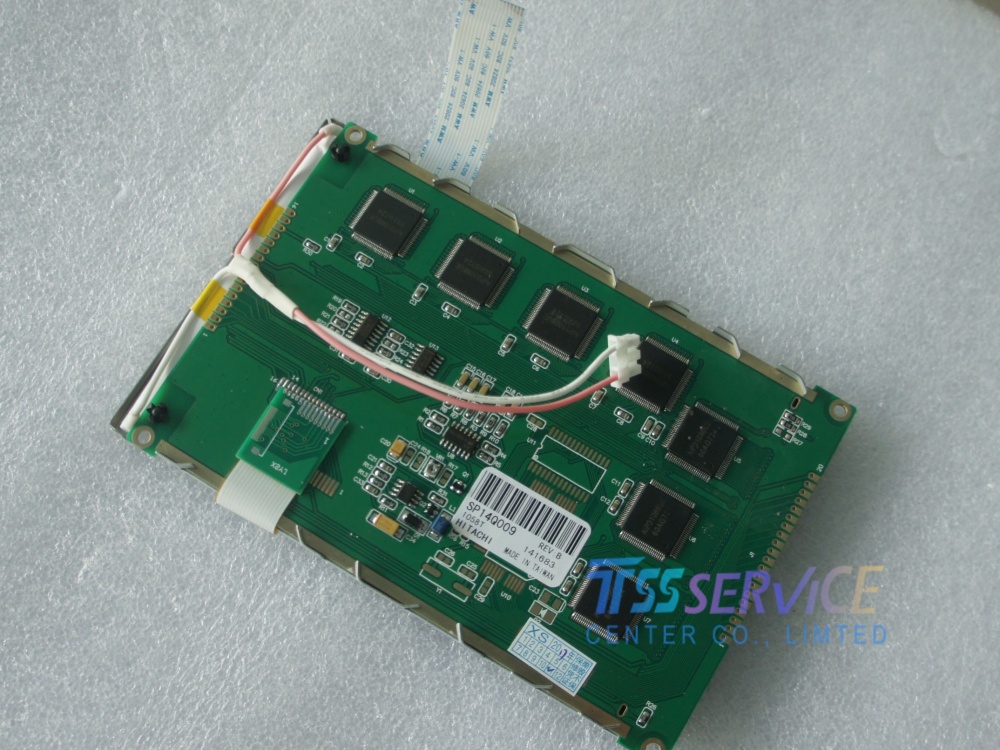

2，Description: SP14Q009 5.7inch LCD Display Panel
3，Warranty: 90 Days
4，Lead Time: 1-3 Working days
5，Shipping: DHL ,FedEx, EMS , SF express or by air.
6，Packaging: Bubble pad+Paper box
7，Note: All LCD display panels will be full tested before shipping.
| Parameter | Specification |
|---|---|
| Manufacturer | Hitachi |
| Model No. | SP14Q009 |
| Screen Size | 5.7 inch |
| Resolution | 320 × 240 (QVGA, 4:3) |
| Panel Type | STN-LCD, LCM |
| Display Mode | STN (Super-Twisted Nematic) |
| Display Colors | Monochrome |
| Pixel Format | Rectangle |
| Dot Pitch | 0.360 × 0.360 mm |
| Pixel Density | 70 PPI |
| Active Area | 115.185 × 86.385 mm |
| Outline Dimensions | 167.0 × 109.0 × 11.0 mm (max) |
| Weight | Approx. 210g (Typ.) |
| Contrast Ratio | 12:1 (Typ.) |
| Luminance | 150 cd/m² (Typ.) |
| Response Time | 310 ms (Typ. rise + fall) |
| Backlight | CCFL, 50,000 hrs typical lifetime |
| Signal Interface | Parallel Data (4-bit) |
| Logic Supply Voltage (VDD) | 3.0V to 5.5V |
| Power Consumption | 1.4W (Typ.) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
Typical Applications
Industrial HMI (Human-Machine Interface) panels
Factory automation and CNC controls
Medical diagnostic and monitoring equipment
Test and measurement instruments
Industrial PC terminals
Portable instrumentation
