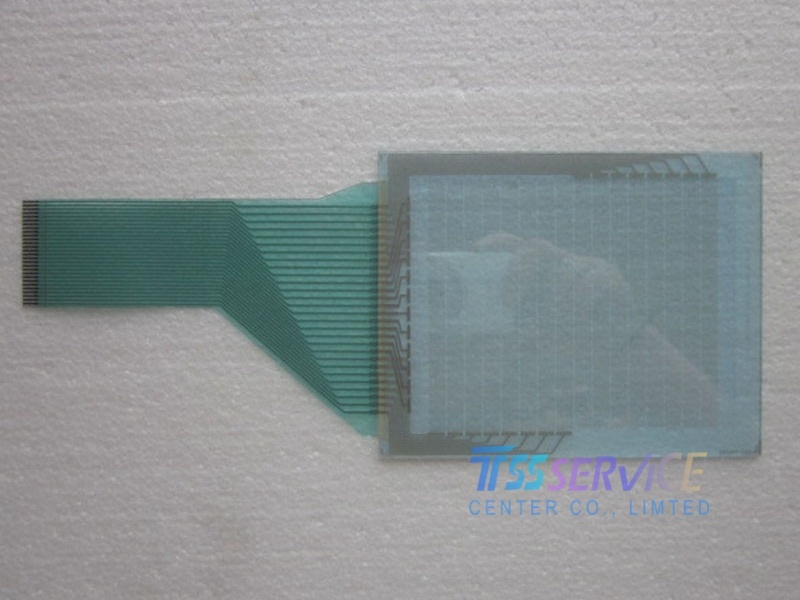

New Touch Screen SS-04 GSC-602BS GH-505H-50K
Category Specification
General Information
Manufacturer FUJI Electric
Model Number SS-04
Product Type Temperature Controller / Digital PID Controller
Series SS Series (predecessor to PXR, PXH series)
Display
Display Type LED (typically 2-line, 4-digit)
Display Color Red (SV), Green (PV)
Indication Accuracy ±0.5% of FS
Input
Thermocouple K, J, R, S, E, T, B, N
RTD Pt100, JPt100
Voltage/Current 0-5 V, 1-5 V, 0-10 V, 4-20 mA
Control
Control Type PID with auto-tuning
Control Output Relay contact, SSR drive, 4-20 mA (depending on model)
Alarm Outputs 1 or 2 outputs (high/low deviation, absolute value, etc.)
Electrical
Power Supply 100-240 VAC, 50/60 Hz
Power Consumption Approximately 10 VA
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Physical
Dimensions (W x H x D) 48 mm x 48 mm x 100 mm (1.89 x 1.89 x 3.94 in)
Panel Cut-out 45 mm x 45 mm (1.77 x 1.77 in)
Weight Approximately 200 g (0.44 lbs)
2. GSC-602BS — Safety Relay / Control Module
The GSC-602BS is a safety control module typically used in machine safety circuits for monitoring emergency stops, safety gates, and two-hand controls .
Category Specification
General Information
Model Number GSC-602BS
Product Type Safety Relay / Safety Control Module
Application Emergency stop, safety gate monitoring, two-hand control
Safety Level Typically Category 4 / SIL 3 compliant (depending on configuration)
Inputs
Input Channels 2-channel (dual channel)
Input Type Contact inputs (N/C or N/O)
Outputs
Safety Outputs 2 or 3 N/O contacts (instantaneous)
Auxiliary Outputs 1 N/C contact (for monitoring)
Electrical
Power Supply 24 VDC
Response Time < 50 ms (typical)
Environmental
Operating Temperature -10°C to 55°C (14°F to 131°F)
Protection Rating IP20 (typical)
Certifications CE, UL, TÜV (depending on version)
3. GH-505H-50K — Limit Switch / Position Sensor
The GH-505H-50K is a heavy-duty limit switch with a roller lever actuator, typically used for position sensing in industrial machinery .
Category Specification
General Information
Model Number GH-505H-50K
Product Type Limit Switch / Position Sensor
Actuator Type Roller lever (cross roller plunger)
Contact Configuration 1NO + 1NC (SPDT)
Electrical
Contact Rating 10 A @ 250 VAC (resistive load)
Mechanical
Operating Force 50K = 50 N (approximately 5.1 kgf)
Operating Speed 0.5 mm/s to 2 m/s
Operating Frequency 120 operations/minute (mechanical)
Mechanical Life 10 million operations (minimum)
Electrical Life 500,000 operations (minimum)
Environmental
Protection Rating IP65 (dust-tight and water jet protected)
Operating Temperature -20°C to 80°C (-4°F to 176°F)
Certifications CE, UL, CSA (depending on version)
