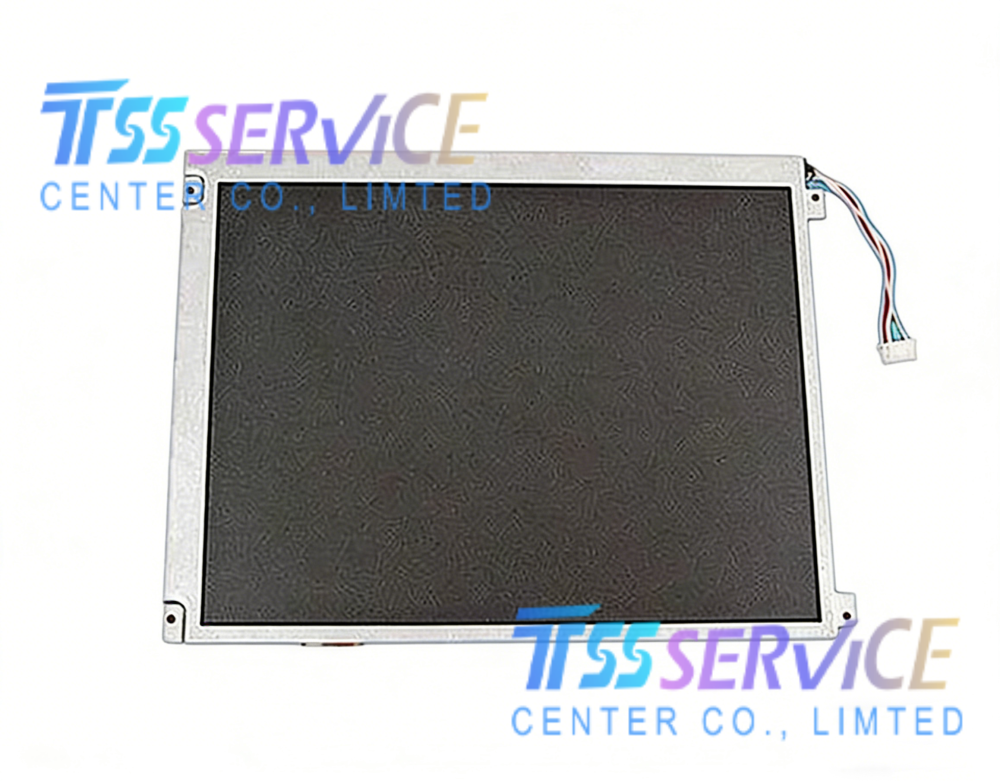

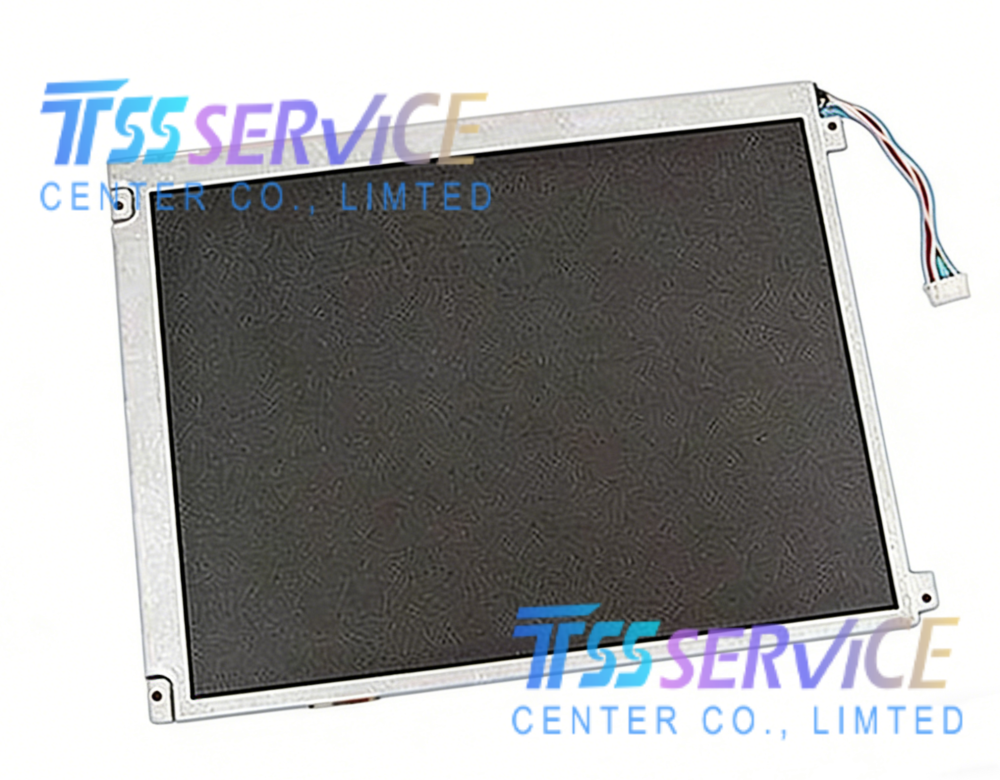

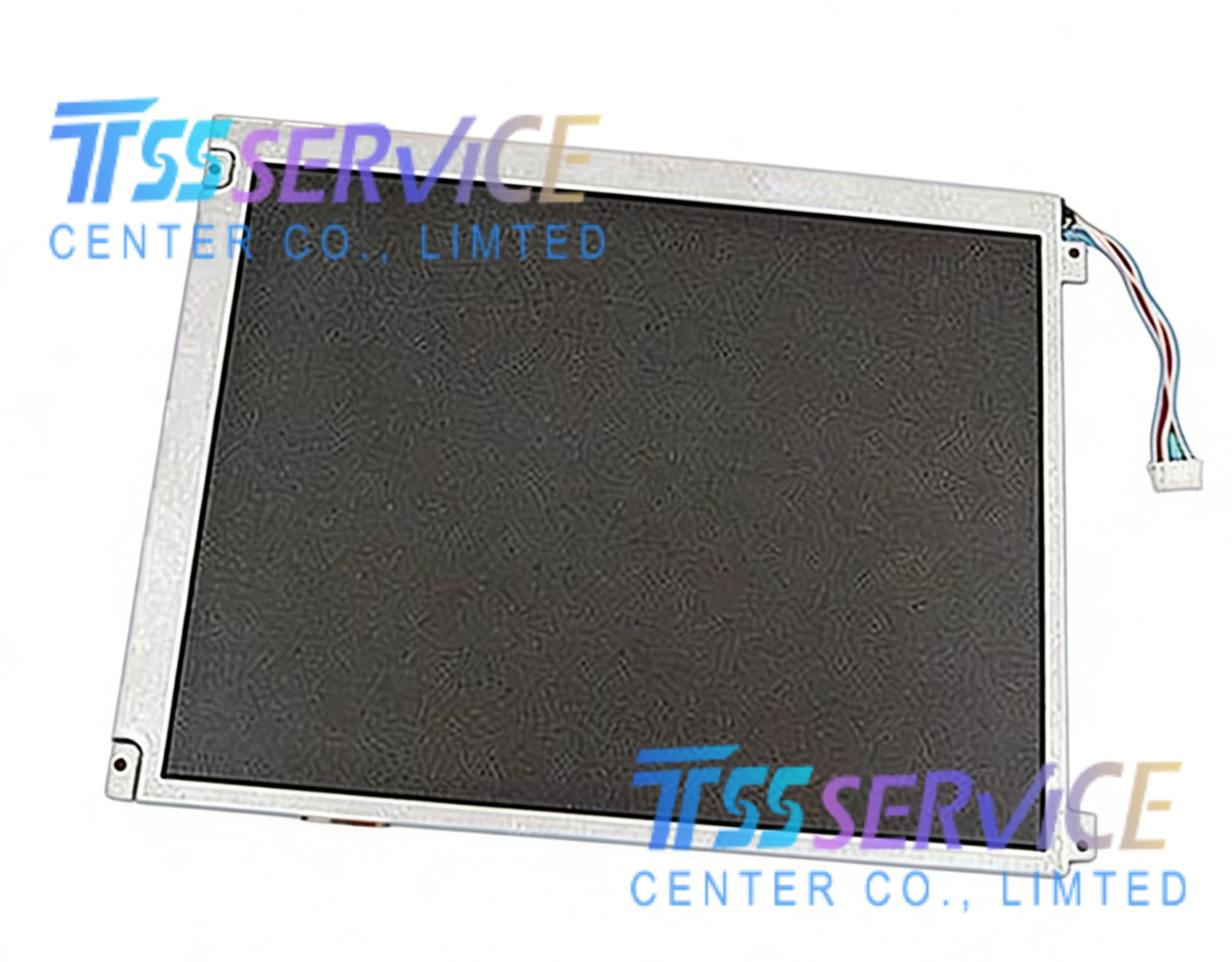

T-51639D084JU-FW-A-AB OPTREX 8.4 inch 1024×768 LCD Display Screen for Industrial

Name: T-51639D084JU-FW-A-AB OPTREX 8.4 inch 1024×768 LCD Display Screen for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-51639D084JU-FW-A-AB
Price: 123 USD
Availability: InStock

SKU: T-51639D084JU-FW-A-AB

Model P/N: T-51639D084JU-FW-A-AB
Diagonal Size: 8.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1024(RGB)×768, XGA 151PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$125.00~~ $123.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

T-51639D084JU-FW-A-AB OPTREX 8.4 inch 1024×768 LCD Display Screen for Industrial

Parameter	Value
Manufacturer	Kyocera (formerly Optrex)
Diagonal Size	8.4 inch
Resolution	1024(RGB) × 768 (XGA)
Display Mode	TN, Normally White, Transmissive
Brightness	300 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.)
Display Colors	262K / 16.7M (6/8-bit)
Response Time	6/19 ms (Tr/Td, Typ.)
Viewing Angle	65/65/60/50° (L/R/U/D, CR≥10)
Backlight	Dual CCFL, 50,000 hours, No driver
Interface	LVDS (1 channel, 6/8-bit), 20 pins
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-20°C ~ +80°C
Outline Dimensions	205.0 × 152.4 × 11.3 mm
Active Area	171.26 × 128.45 mm
Surface	Anti-glare, Hard coating (3H)
Weight	380 g (Typ.)
Status	Obsolete / Discontinued
