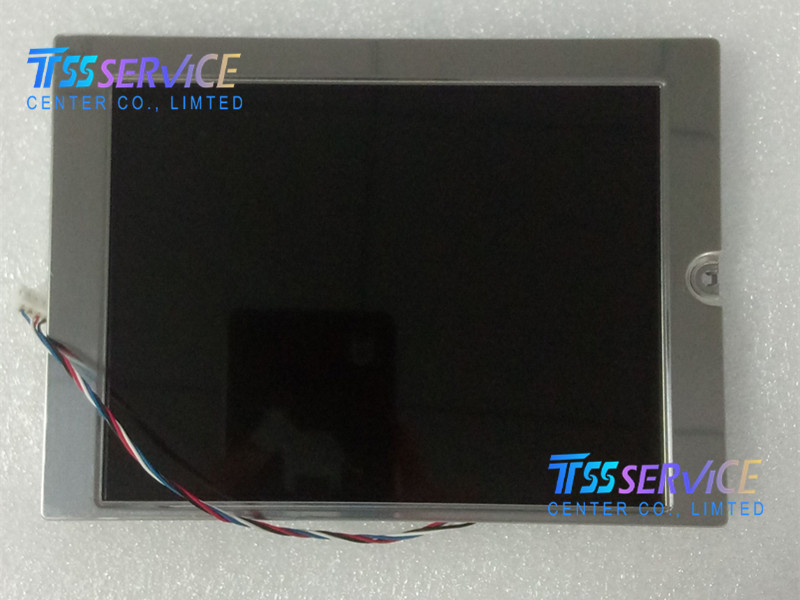

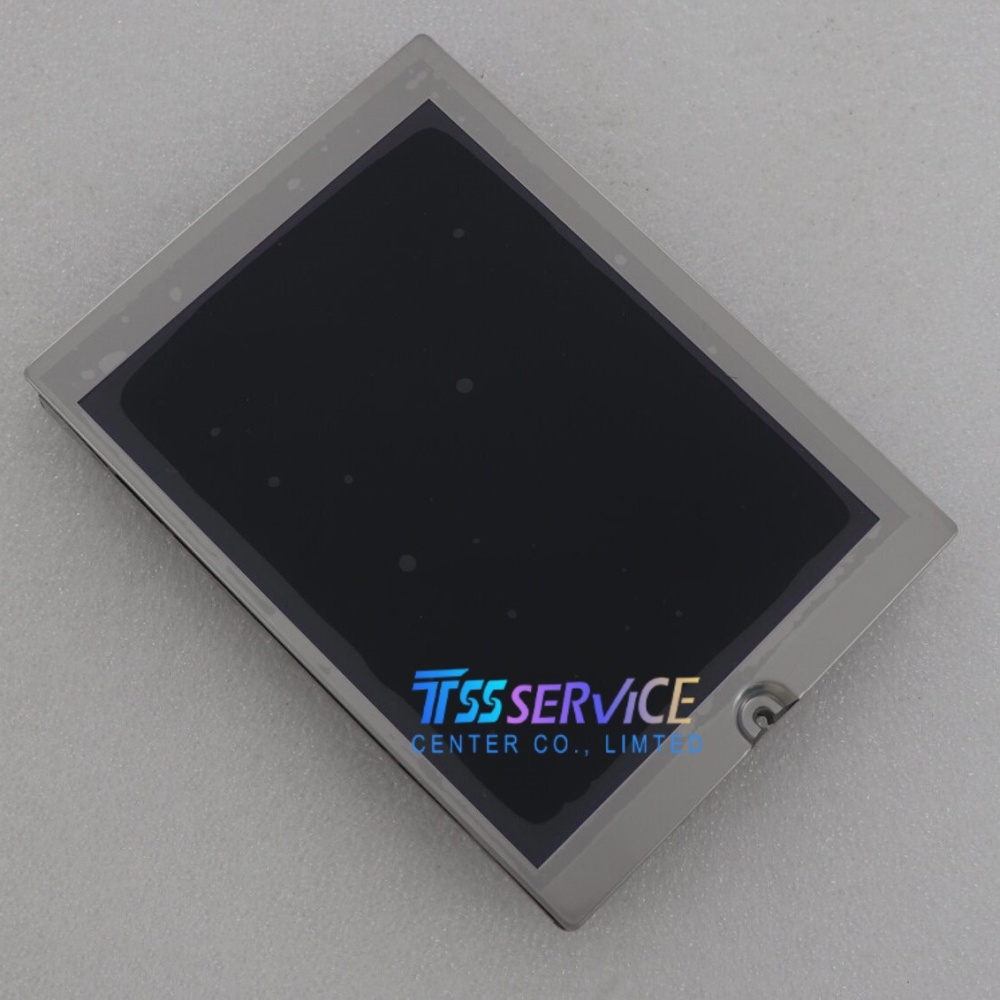

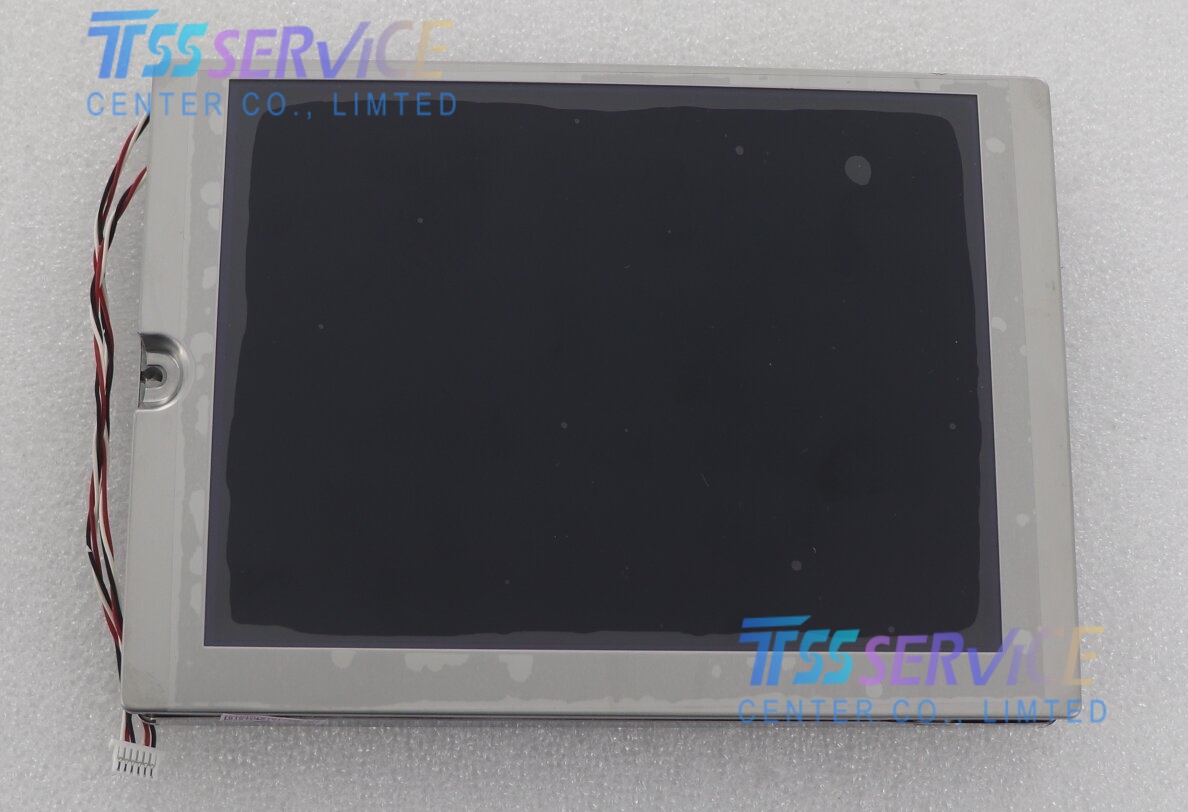

Kyocera TCG057VG1CA-G01 5.7 Inch 640×480 LCD Display Panel For Industrial

SKU: TCG057VG1CA-G01
Model P/N: TCG057VG1CA-G01
Diagonal Size: 5.7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480, VGA  141PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$130.00 $128.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Kyocera TCG057VG1CA-G01 5.7 Inch 640×480 LCD Display Panel For Industrial
  • Kyocera TCG057VG1CA-G01 5.7 Inch 640×480 LCD Display Panel For Industrial
  • Kyocera TCG057VG1CA-G01 5.7 Inch 640×480 LCD Display Panel For Industrial
  • Kyocera TCG057VG1CA-G01 5.7 Inch 640×480 LCD Display Panel For Industrial
  • Kyocera TCG057VG1CA-G01 5.7 Inch 640×480 LCD Display Panel For Industrial
  • Kyocera TCG057VG1CA-G01 5.7 Inch 640×480 LCD Display Panel For Industrial
1/1
  • Kyocera TCG057VG1CA-G01 5.7 Inch 640×480 LCD Display Panel For Industrial
  • Kyocera TCG057VG1CA-G01 5.7 Inch 640×480 LCD Display Panel For Industrial
  • Kyocera TCG057VG1CA-G01 5.7 Inch 640×480 LCD Display Panel For Industrial
  • Description
Kyocera TCG057VG1CA-G01 5.7 Inch 640×480 LCD Display Panel For Industrial
Parameter Value
Part Number TCG057VG1CA-G01
Manufacturer Kyocera
Display Type a-Si TFT-LCD Module (LCM)
Display Mode TN, Normally White, Transmissive
Diagonal Size 5.7 inches
Resolution 640(RGB) × 480 (VGA, 141 PPI)
Pixel Arrangement RGB Vertical Stripe
Dot Pitch 0.18 × 0.18 mm (W×H)
Active Area 115.2(W) × 86.4(H) mm
Outline Dimension 144(W) × 104.8(H) × 13.5(D) mm
Surface Treatment Anti-glare (Matte)
Weight ~1.0 kg (Typ.)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.)
Response Time 10/25 ms (Tr/Td, Typ.)
Viewing Angle 80°(L)/80°(R)/80°(U)/80°(D) (Typ., CR≥5)
Display Colors 262K (6-bit)
Backlight CCFL (1 pc, Side-lit)
Backlight Lifetime ≥50,000 hours (Typ.)
Interface Parallel RGB (1 channel, 6-bit, TTL)
Supply Voltage VDD: 3.3 V
Input Current 150 mA (Typ.), 195 mA (Max.)
Operating Temperature -10°C to +70°C
Storage Temperature -30°C to +80°C
RoHS Compliance Yes
Production Status Obsolete (Replacement available)

Specific Applications

  • Industrial Control & HMI: Used in factory automation panels, PLCs, CNC machines, and industrial PCs for stable operation in harsh environments.
  • Medical Devices: Deployed in patient monitors, portable diagnostic equipment, and medical carts requiring reliable color display.
  • Test & Measurement Instruments: Integrated into oscilloscopes, signal analyzers, and data loggers for clear data visualization.
  • Embedded & Kiosk Systems: Applied in industrial embedded computers, self-service terminals, and rugged POS machines.
  • Vehicle & Marine Displays: Used in automotive dashboards, marine navigation systems, and heavy-duty vehicle HMIs.
  • Industrial Equipment: Utilized in printing machines, packaging equipment, and process control panels for long-term reliability.
