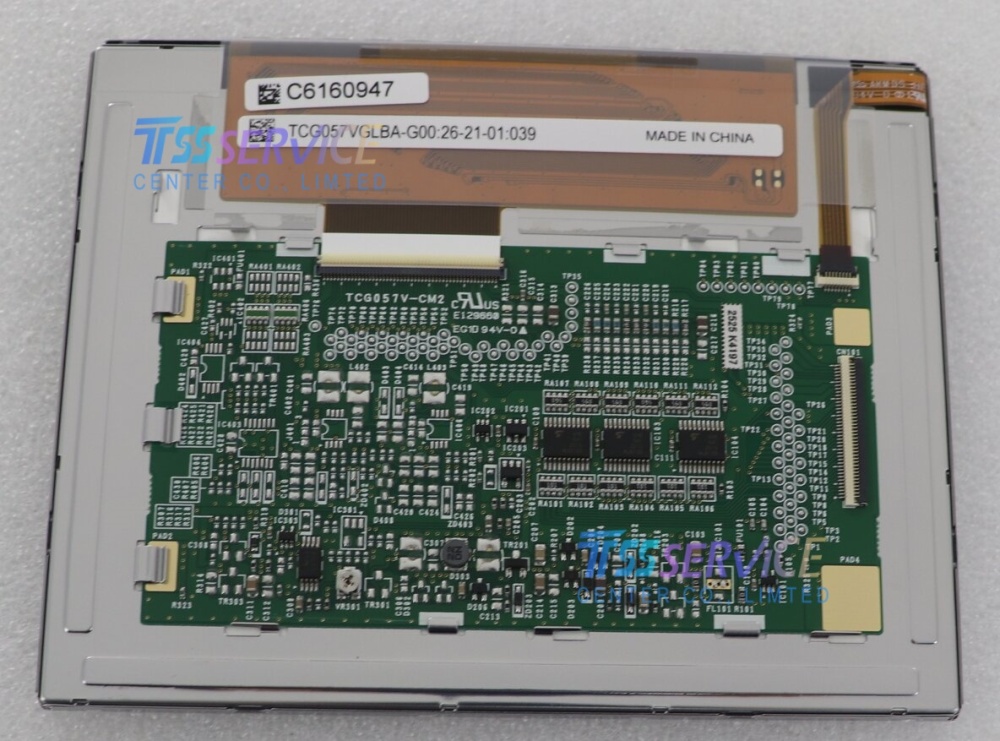

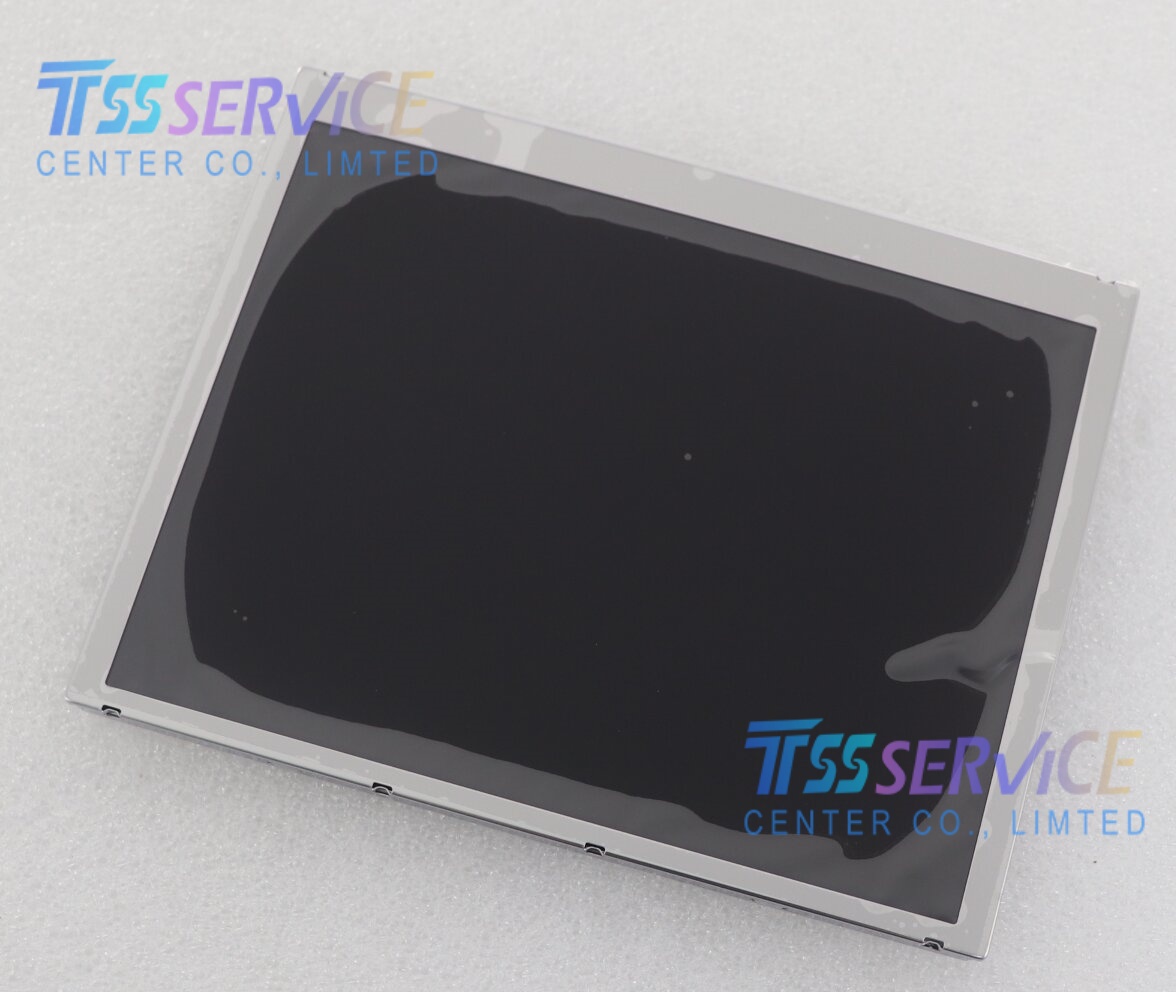

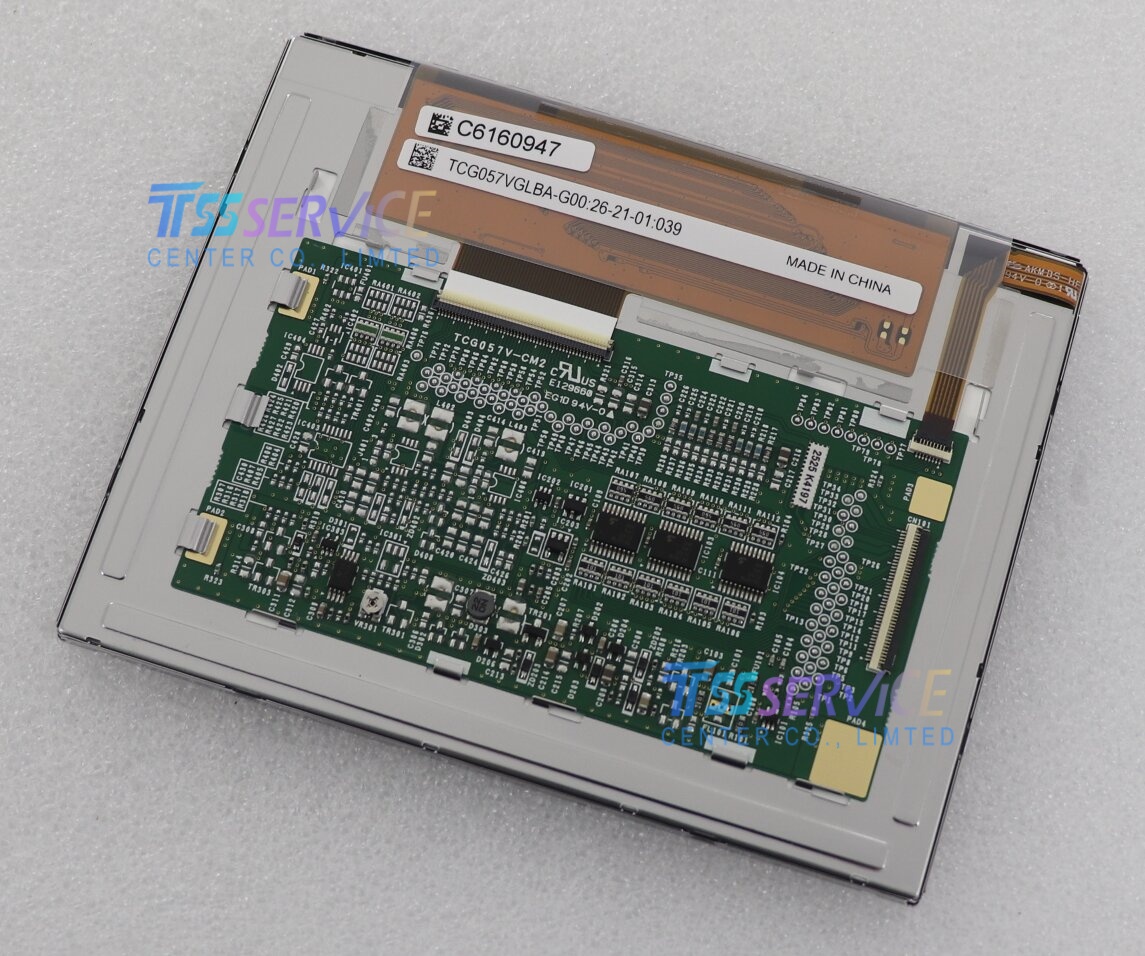

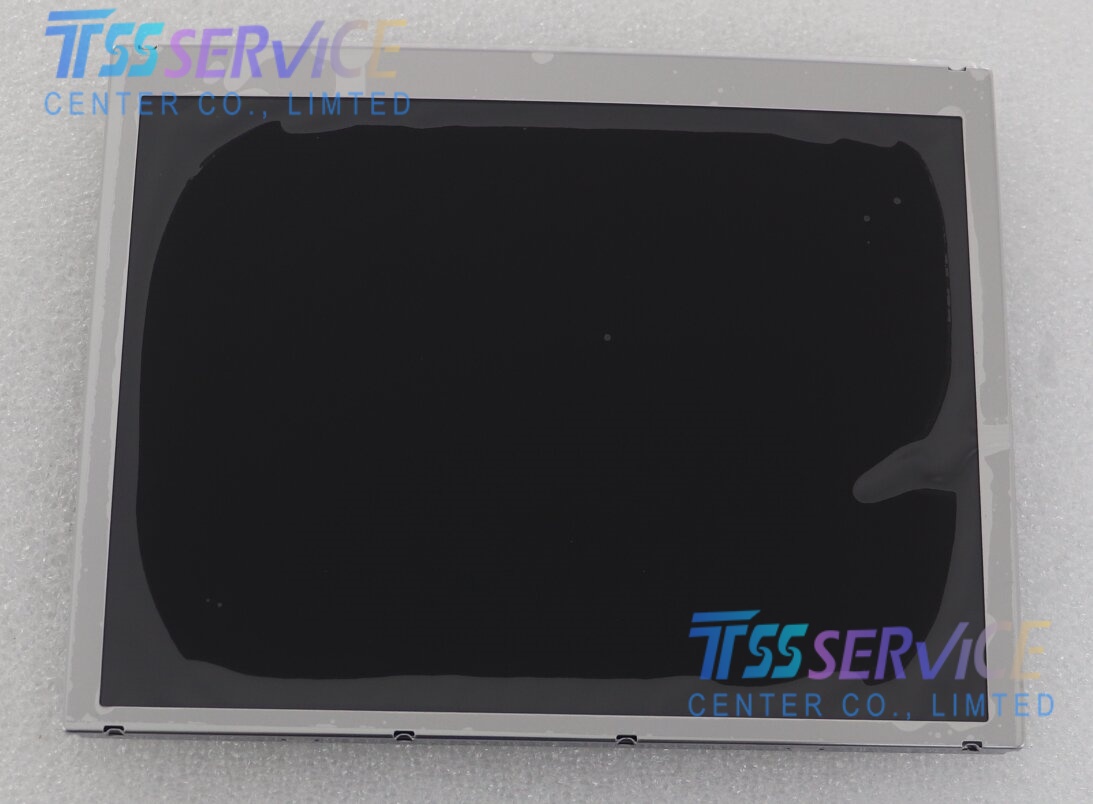

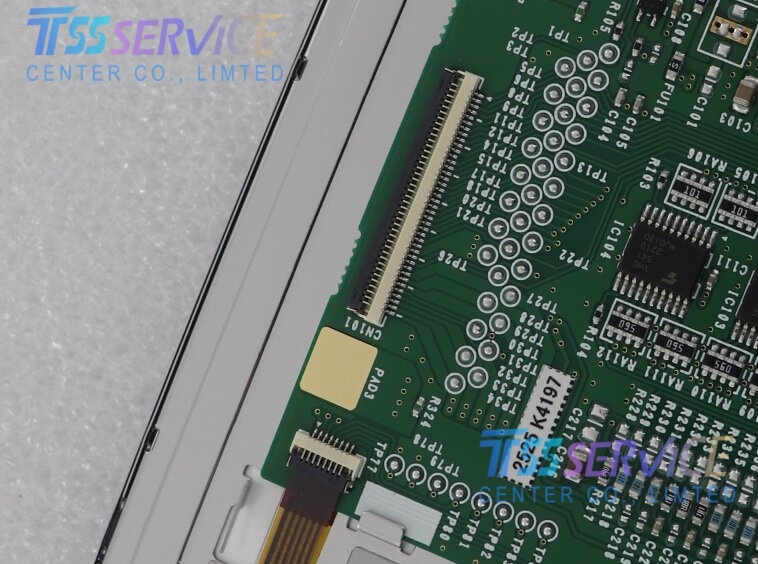

Kyocera TCG057VGLBA-G00 5.7 Inch 640×480 LCD Display Panel For Industrial

Name: Kyocera TCG057VGLBA-G00 5.7 Inch 640×480 LCD Display Panel For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057VGLBA-G00
Price: 135 USD
Availability: InStock

SKU: TCG057VGLBA-G00

Model P/N: TCG057VGLBA-G00
Diagonal Size: 5.7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480, VGA 141PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$140.00~~ $135.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG057VGLBA-G00 5.7 Inch 640×480 LCD Display Panel For Industrial

Parameter	Value
Part Number	TCG057VGLBA-G00
Manufacturer	Kyocera
Display Type	a‑Si TFT‑LCD Module (LCM)
Display Mode	TN, Normally White, Transmissive
Diagonal Size	5.7 inches
Resolution	640(RGB) × 480 (VGA, 141 PPI)
Pixel Arrangement	RGB Vertical Stripe
Dot Pitch	0.18 × 0.18 mm (W×H)
Active Area	115.2(W) × 86.4(H) mm
Outline Dimension	144(W) × 104.8(H) × 13(D) mm
Surface Treatment	Glare (Mirror, Haze 0%)
Weight	110 g (Typ.)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Response Time	10/25 ms (Tr/Td, Typ.)
Viewing Angle	80°(L)/80°(R)/80°(U)/80°(D) (Typ., CR≥5)
Display Colors	262K (6‑bit)
Backlight	White LED (WLED, Side‑lit, 3‑string)
Backlight Lifetime	≥40,000 hours (Typ.)
Backlight Driver	No built‑in driver
Interface	Parallel RGB (1 channel, 6‑bit, TTL, 40‑pin)
Supply Voltage	VDD: 3.3 V (Typ., 3.0–3.6 V)
Input Current	150 mA (Typ.)
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
RoHS Compliance	Yes
Production Status	Obsolete (Replacement available)

Specific Applications

Industrial Control & HMI: Used in factory automation panels, PLCs, CNC machines, and industrial PCs for stable operation in harsh environments.
Test & Measurement Instruments: Integrated into oscilloscopes, signal analyzers, data loggers, and multimeters for clear data visualization.
Embedded & Kiosk Systems: Applied in industrial embedded computers, rugged POS terminals, and self‑service kiosks.
Office & Commercial Equipment: Deployed in printers, copiers, fax machines, and audio control panels.
Vehicle & Marine Displays: Used in automotive dashboards, marine navigation systems, and heavy‑duty vehicle HMIs.
Home Appliances: Utilized in smart home control panels and high‑end kitchen appliances.
