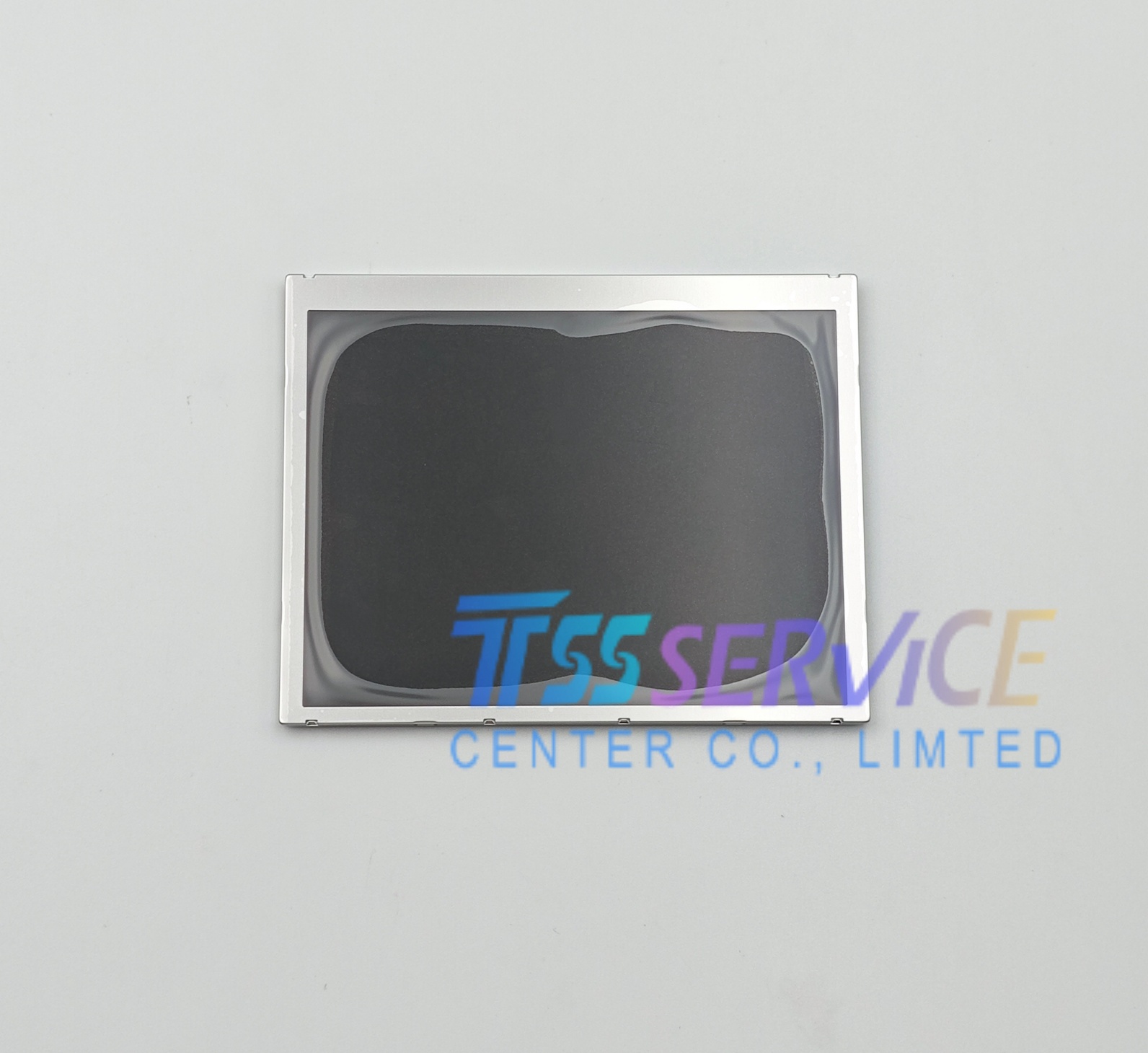

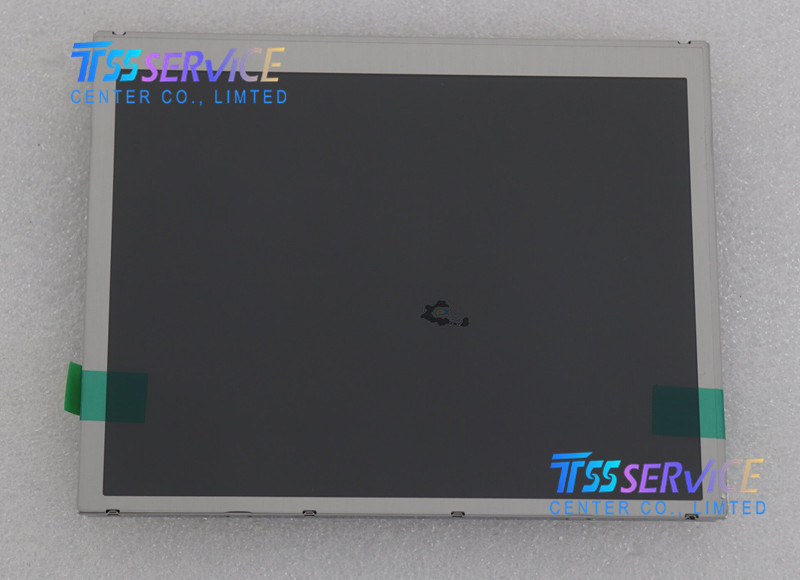

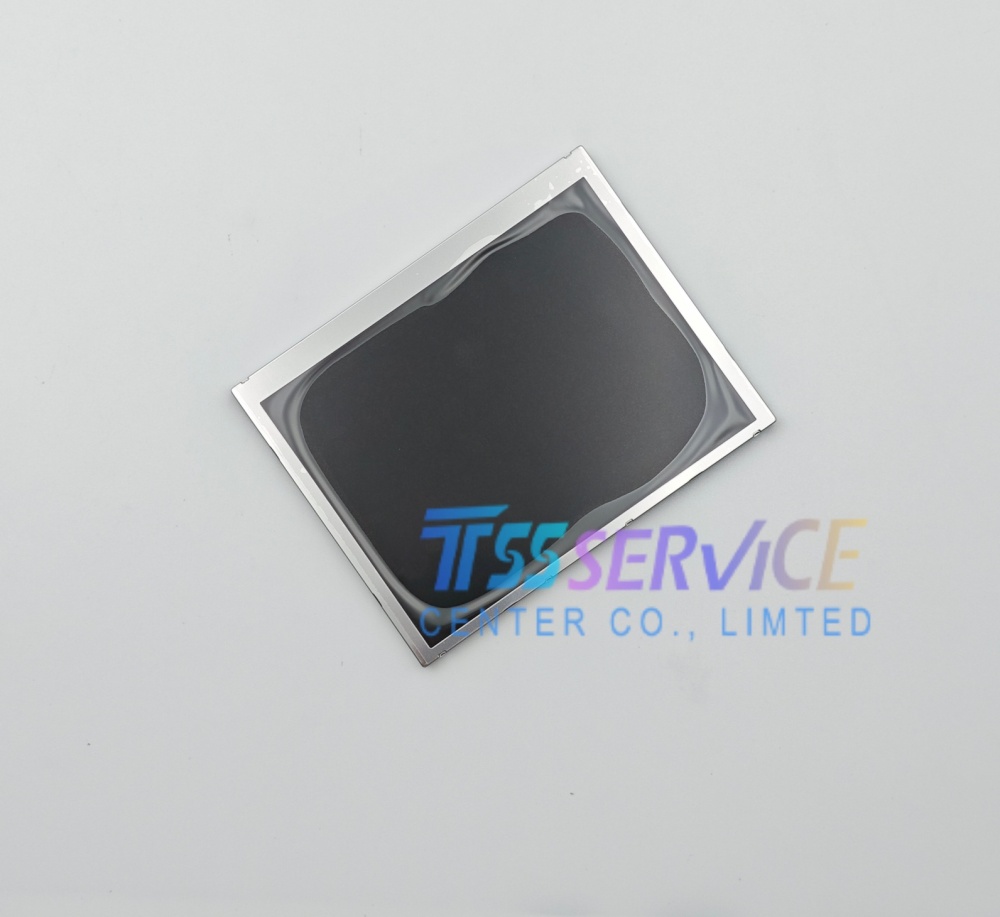

Kyocera TCG057VGLBW-D20 5.7 inch LCD Panel for Industrial Machine

Name: Kyocera TCG057VGLBW-D20 5.7 inch LCD Panel for Industrial Machine
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057VGLBW-D20
Price: 169 USD
Availability: InStock

SKU: TCG057VGLBW-D20

Model P/N: TCG057VGLBW-D20
Diagonal Size: 5.7"
Panel Type: a-Si TFT, Transmissive
Resolution: 640 × 480 (VGA)

0.0 (0 Reviews)

0 Sold

~~$171.00~~ $169.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG057VGLBW-D20 5.7 inch LCD Panel for Industrial Machine

Parameter	Specification
Manufacturer	Kyocera
Part Number	TCG057VGLBW-D20
LCD Type	a-Si TFT LCD, Transmissive, Normally White
Diagonal Size	5.7 inch
Resolution	640 × 480 (VGA)
Active Area	115.2 × 86.4 mm
Outline Dimensions	144.0 × 104.8 × 12.7 mm
Pixel Pitch	0.180 × 0.180 mm
Display Colors	262K colors
Brightness	350 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle (CR≥10)	70/70/60/60° (U/D/L/R)
Response Time	Tr/Tf: 8/13 ms (Typ.)
Backlight	LED, 4 LEDs, Cathode Common
Interface	24-bit RGB (TTL)
Supply Voltage	3.3 V
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
