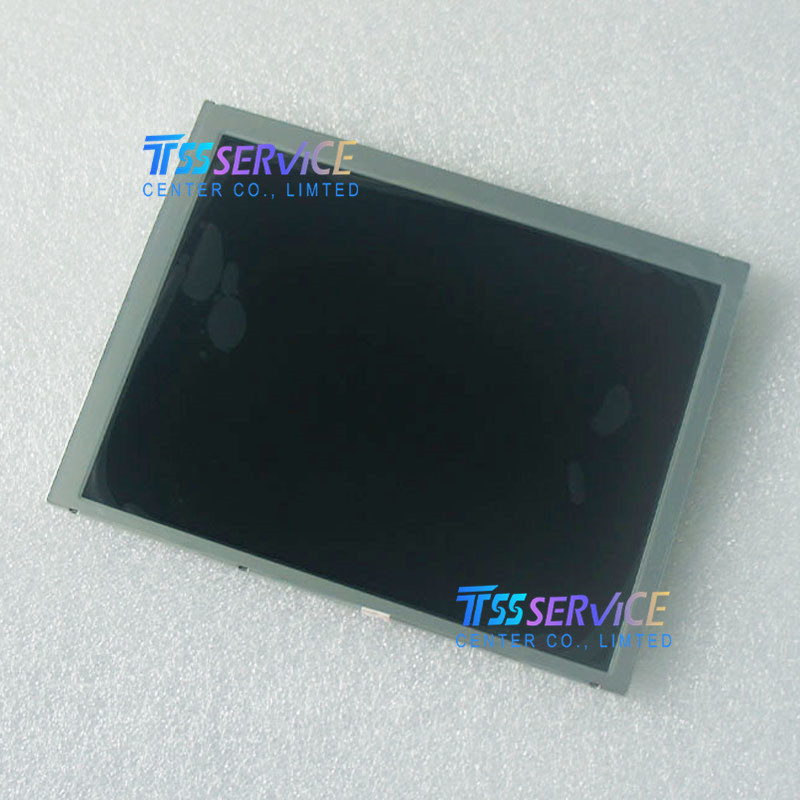

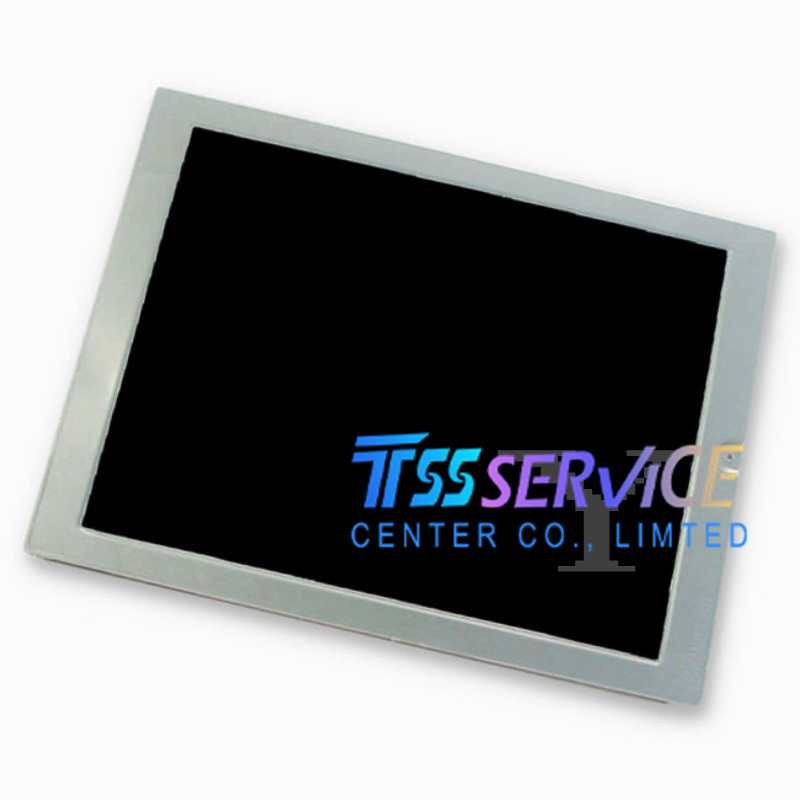

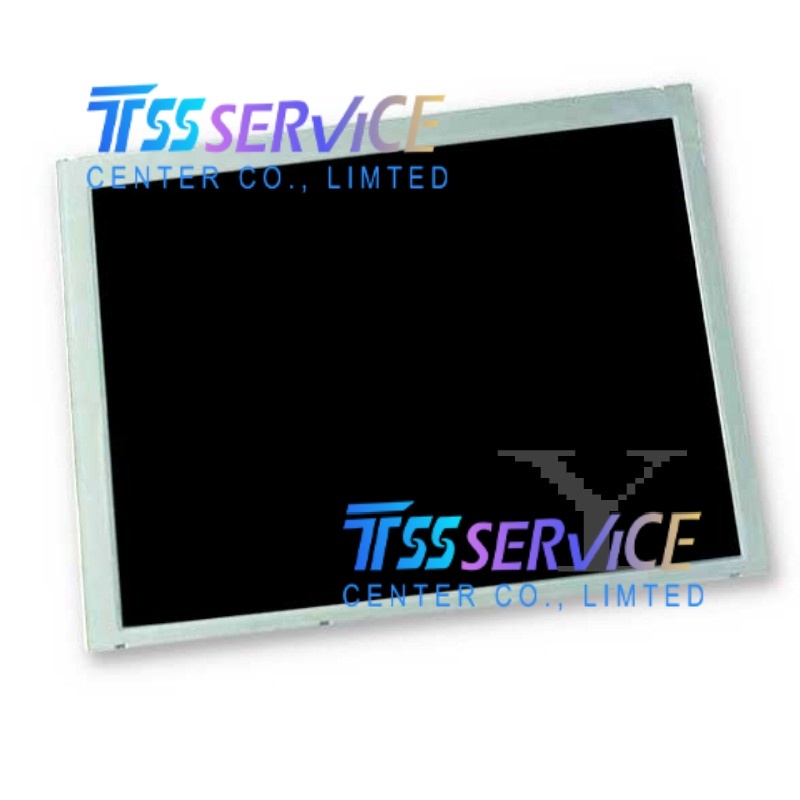

Kyocera TCG075VGLCR-C00 7.5 inch 640×480 LCD Panel Screen For Industrial
| Parameter |
Details |
| Brand |
Kyocera |
| Panel Type |
a-Si TFT-LCD, Transmissive |
| Diagonal Size |
7.5" |
| Resolution |
640 (RGB) × 480 (VGA) |
| Display Mode |
TN, Normally White |
| Surface |
Glare (Haze 0%) |
| Brightness |
220 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) |
| Display Colors |
262K (6-bit) |
| Response Time |
10/25 ms (Typ.) (Tr/Td) |
| Viewing Angle |
80/80/80/80° (Typ.) (L/R/U/D, CR≥5) |
| Refresh Rate |
60 Hz |
| Backlight |
WLED, 50,000 hours lifetime |
| Interface |
Parallel RGB (1 ch, 6-bit) |
| Input Voltage |
3.0V (Typ.) |
| Active Area |
151.68 × 113.76 mm |
| Outline Dimensions |
184 × 139.8 × 12.7 mm |
| Operating Temp. |
-20°C ~ +70°C |
| Storage Temp. |
-30°C ~ +80°C |
| RoHS Compliant |
Yes |
This display is designed for industrial and professional environments requiring stable performance across wide temperatures and high reliability. Typical applications include:
- Factory Automation & HMI: Industrial control panels, PLC human-machine interfaces.
- Test & Measurement: Portable and benchtop instruments (oscilloscopes, multimeters).
- Medical Devices: Non-critical diagnostic and monitoring equipment.
- Marine & Avionics: On-board control and navigation displays.
- Industrial PCs & Embedded Systems: Compact industrial computers.
- Vehicle Mount Terminals: Dash-mounted units for trucks, construction, and agricultural machinery.
- Outdoor/Industrial Handhelds: Rugged PDAs and data terminals.
