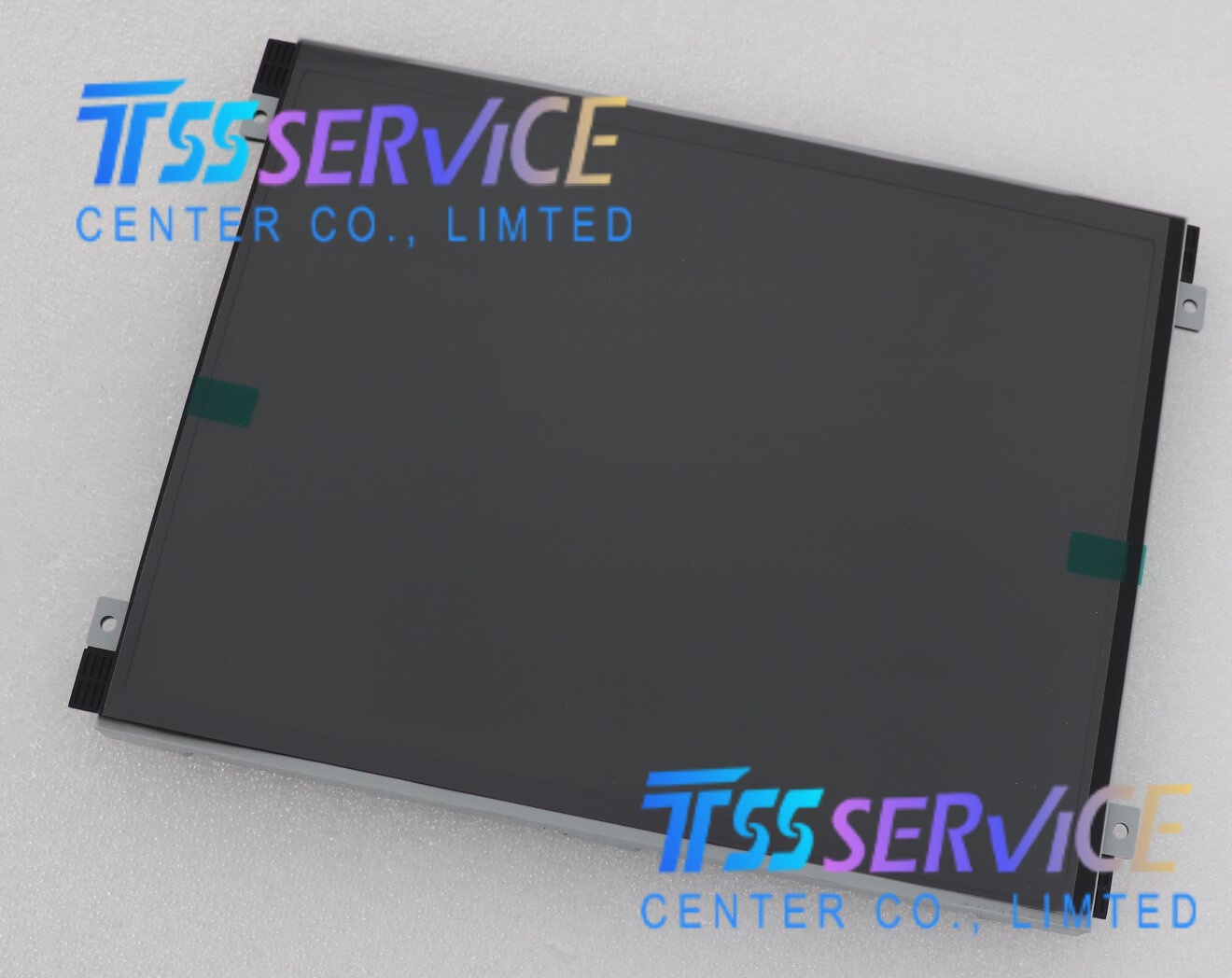

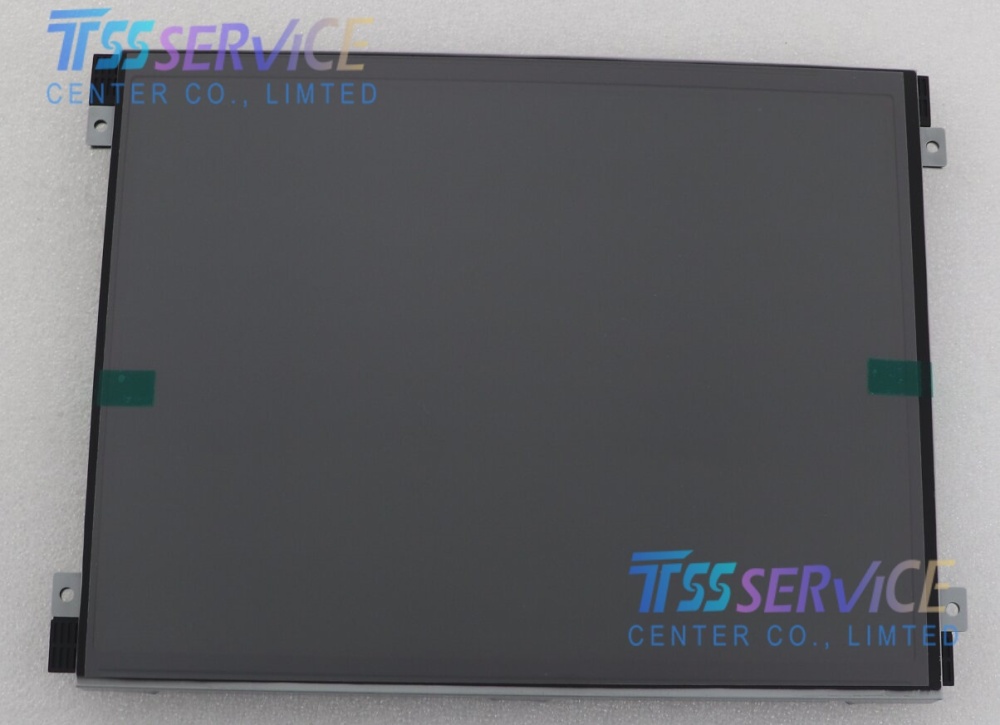

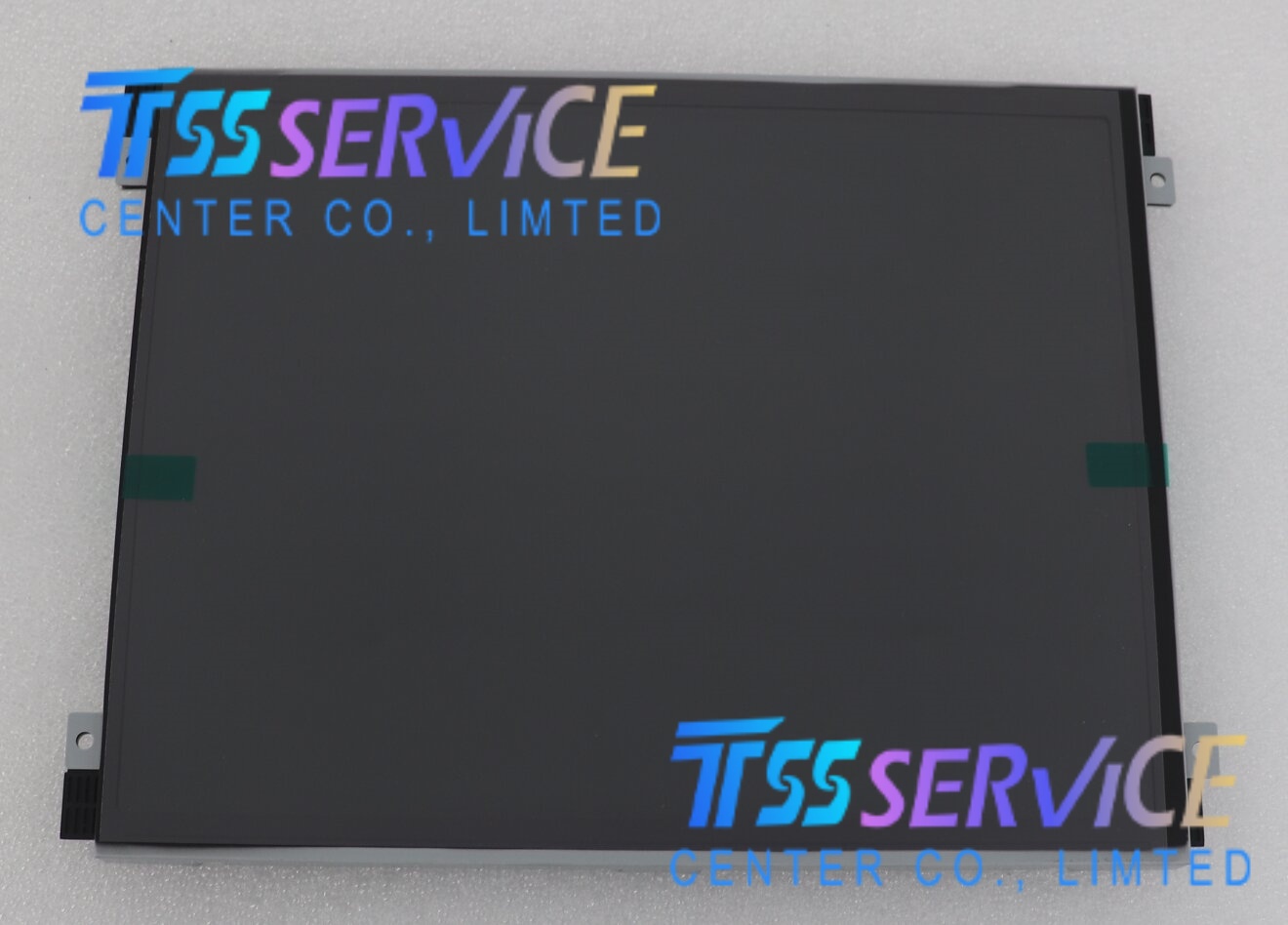

Model P/N: TCG104VGLQFANN-AN30
Diagonal Size: 10.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB) × 480 (VGA)
Pixel Format: RGB Vertical Stripe
| Parameter | Specification |
|---|---|
| Manufacturer | Kyocera |
| Part Number | TCG104VGLQFANN‑AN30 |
| Display Type | a‑Si TFT‑LCD, Transmissive, TN Normally WhiteKYOCERA Display |
| Diagonal Size | 10.4 inches |
| Resolution | 640(RGB) × 480 (VGA), 76 PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2 (W) × 158.4 (H) mm |
| Outline Dimension | 240.7 × 180.2 × 9.5 mm (W×H×D) |
| Surface Treatment | Anti‑glare (AG) |
| Brightness | 800 cd/m² (Typical)KYOCERA Display |
| Contrast Ratio | 500:1 (Typical)KYOCERA Display |
| Display Colors | 262K (6‑bit), 48% NTSC (CIE1931) |
| Response Time | 10/20 ms (Tr/Td, Typical) |
| Viewing Angle (CR≥10) | Horizontal: ±70°; Vertical: -70°/+60° (L/R/U/D)KYOCERA Display |
| Backlight | White LED (WLED), embedded driver |
| Backlight Lifetime | 50,000+ hours (Typical) |
| Interface | Parallel RGB (CMOS, 1‑channel, 6‑bit), 40‑pin connector |
| Input Voltage | 3.3 V (Typ./Max.) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Refresh Rate | 60 Hz |
| Compliance | RoHS compliant |
| Application Grade | Industrial |
