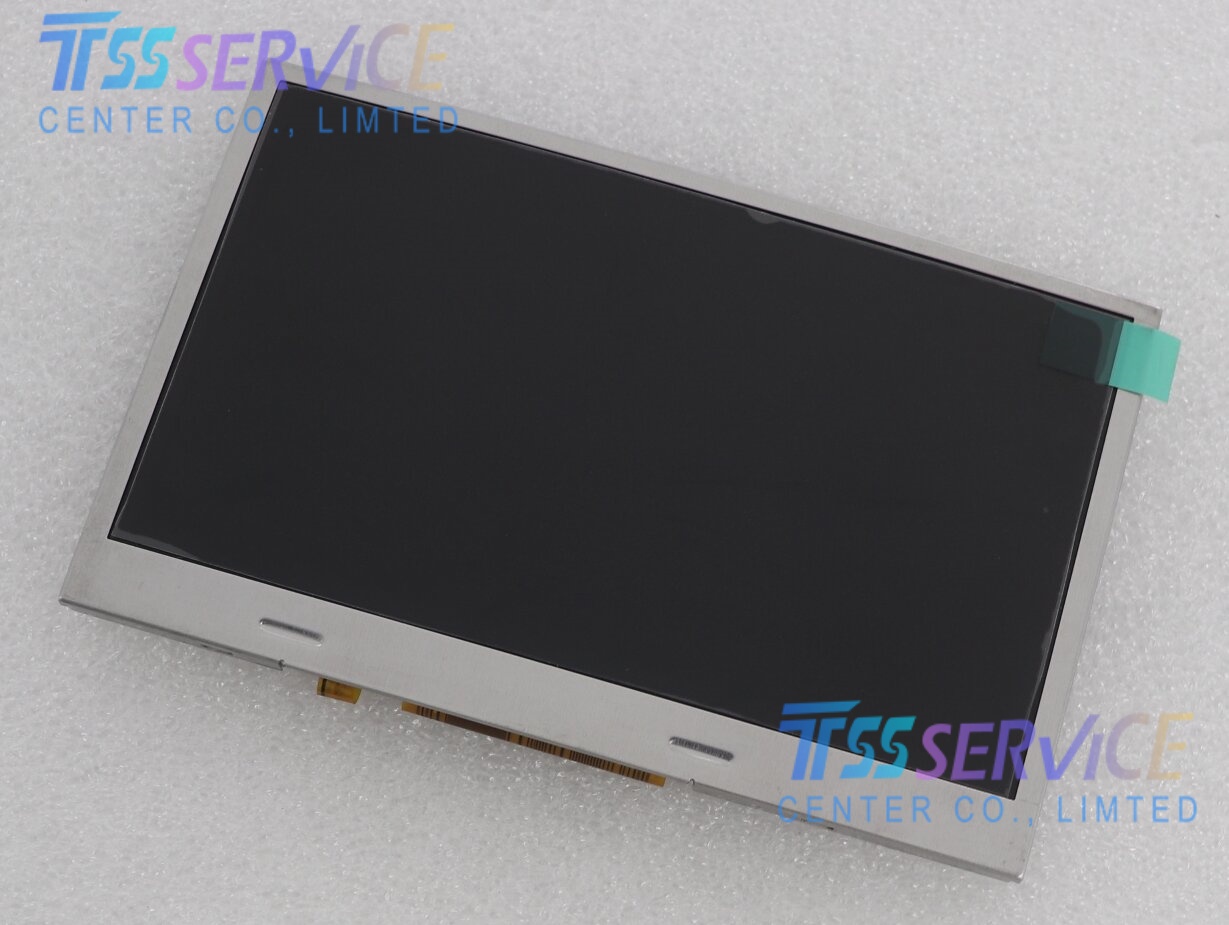

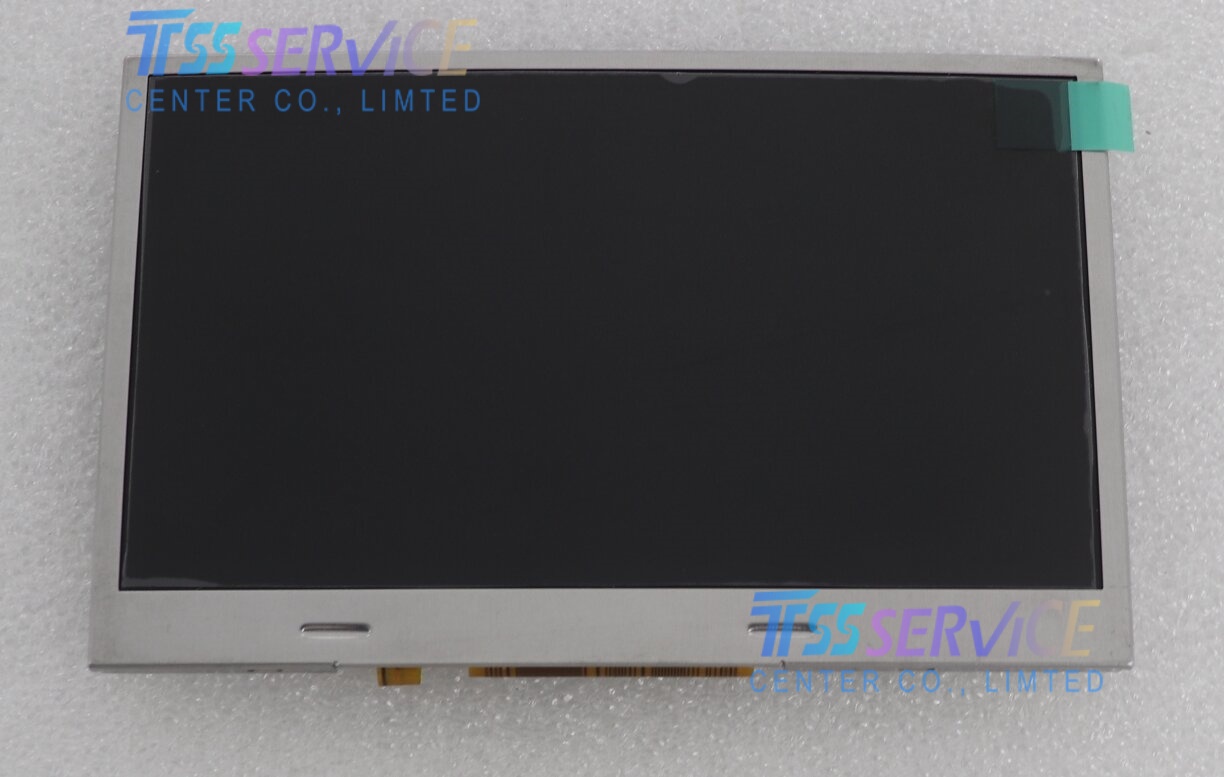

TM042WDGT01-00 Tianma 4.2 inch LCD Dispaly Panel for industrial

SKU: TM042WDGT01-00
Model P/N: TM042WDGT01-00
Diagonal Size: 4.2"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 480 (RGB) × 272 (WQVGA)
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$115.00 $110.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TM042WDGT01-00 Tianma 4.2 inch LCD Dispaly Panel for industrial
  • TM042WDGT01-00 Tianma 4.2 inch LCD Dispaly Panel for industrial
  • TM042WDGT01-00 Tianma 4.2 inch LCD Dispaly Panel for industrial
  • TM042WDGT01-00 Tianma 4.2 inch LCD Dispaly Panel for industrial
1/1
  • TM042WDGT01-00 Tianma 4.2 inch LCD Dispaly Panel for industrial
  • TM042WDGT01-00 Tianma 4.2 inch LCD Dispaly Panel for industrial
  • Description
TM042WDGT01-00 Tianma 4.2 inch LCD Dispaly Panel for industrial
Parameter Details
Diagonal Size 4.2 inches
Resolution 480 (RGB) × 272 (WQVGA)
Pixel Configuration RGB Vertical Stripe
Display Mode Normally Black, Transmissive
Active Area (AA) 95.04 × 53.86 mm (W×H)
Outline Dimensions 101.0 × 67.0 × 3.6 mm (W×H×T)
Surface Treatment Anti-glare (Matte), Hard coating (3H)
Brightness (Typ.) 450 cd/m²
Contrast Ratio (Typ.) 500:1 (Transmissive)
Color Depth 16.7M Colors (8-bit)
Color Gamut 65% (CIE1931)
Response Time (Typ.) 30 ms (Tr+Td)
Viewing Angle (CR≥10) 70° (U), 70° (D), 70° (L), 60° (R)
Backlight WLED (White LED), Edge-type, 50,000 hours lifespan
Signal Interface RGB (TTL) 24-bit, 40 pins
Input Voltage 3.3V
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C
Weight 58 g (Typ.)
RoHS Compliance Yes
Production Status Mass Production (In Production)

TM042WDGT01-00 is a 4.2-inch industrial-grade TFT-LCD module designed for compact, cost-effective, and reliable display solutions in embedded systems and handheld devices.
