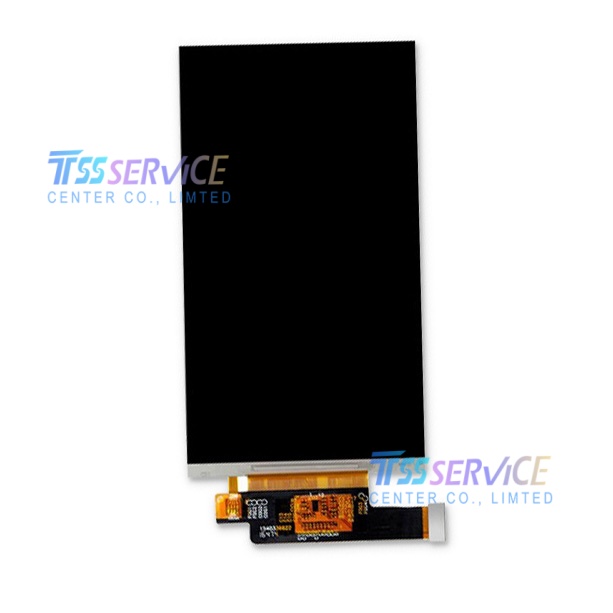

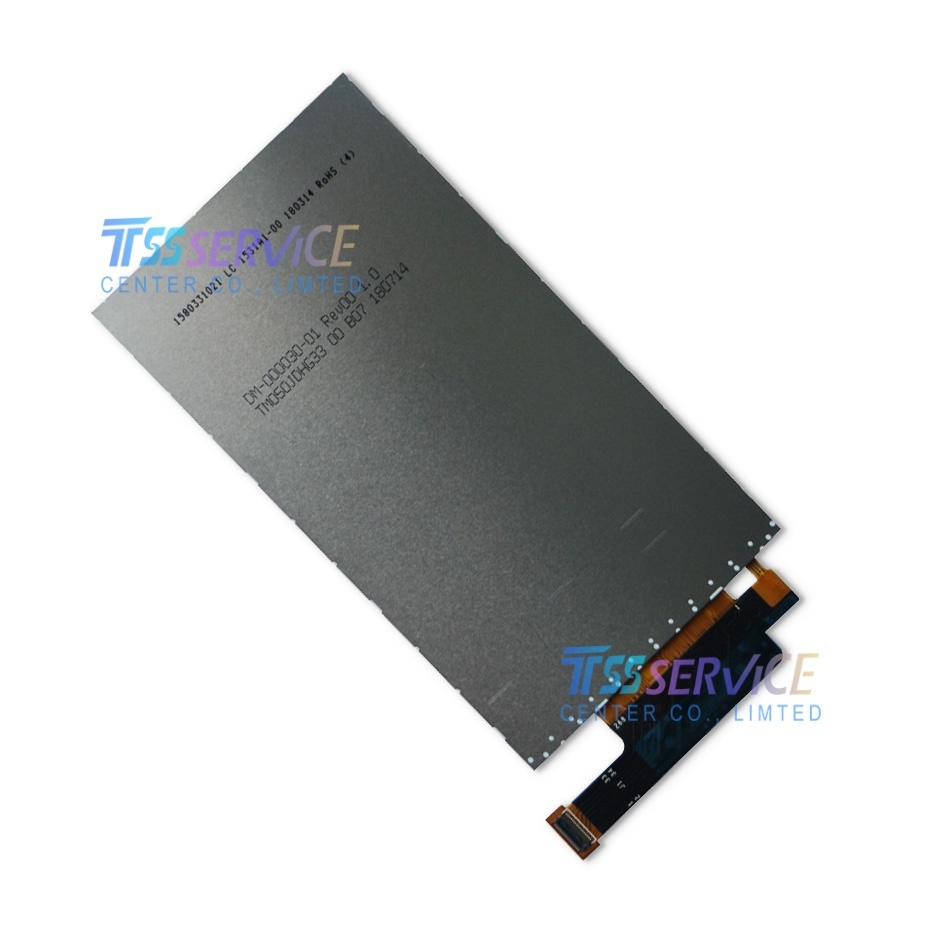

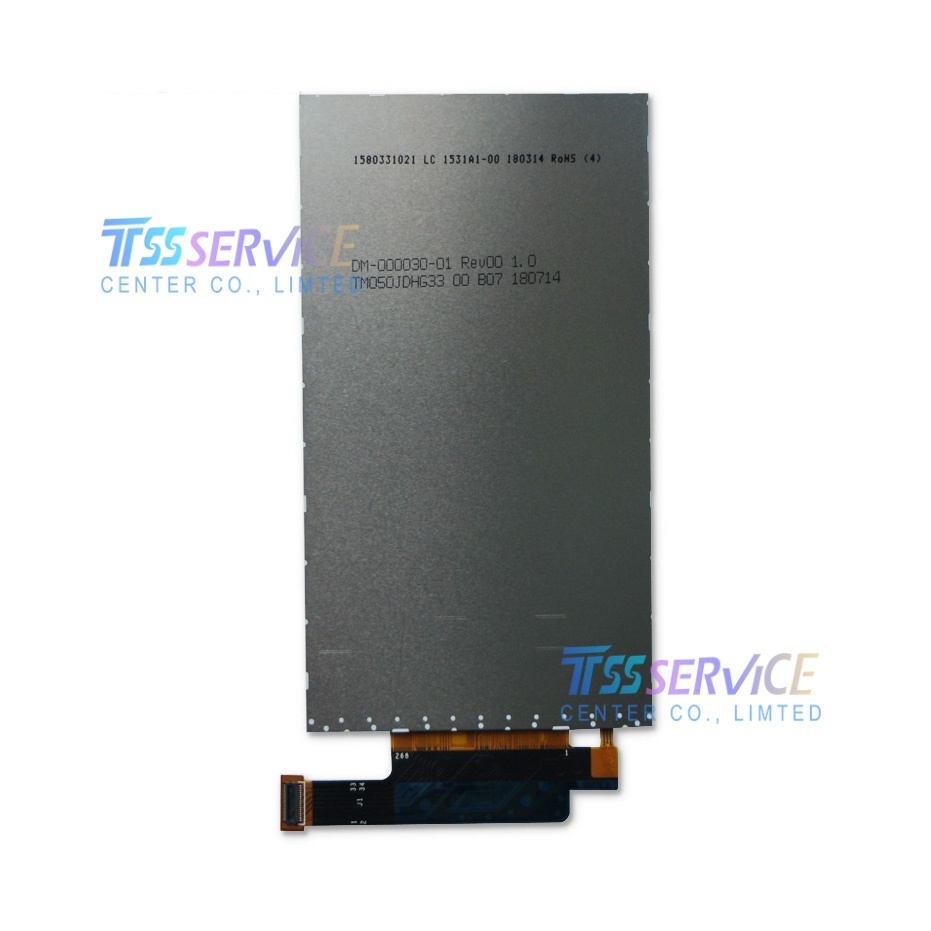

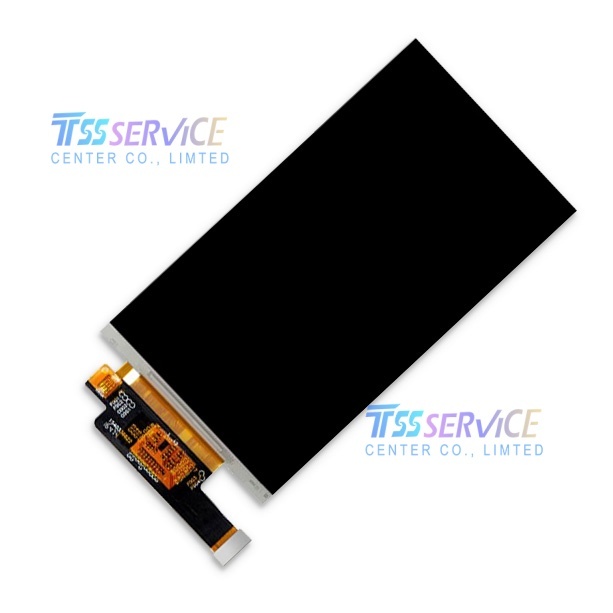

TM050JDHG33-01 5 inch 720×1280 LCD Display Panel for TIANMA
| Parameter |
Details |
Unit |
| Model Number |
TM050JDHG33-01 |
- |
| Manufacturer |
Tianma Microelectronics |
- |
| Panel Type |
a-Si TFT-LCD, LCM |
- |
| Diagonal Size |
5.0 |
Inch |
| Resolution |
720 (RGB) × 1280 (WXGA) |
Pixels |
| Pixel Density (PPI) |
294 |
PPI |
| Pixel Configuration |
RGB Vertical Stripe |
- |
| Display Area (AA) |
62.1 (W) × 110.4 (H) |
mm |
| Outline Dimensions |
65.4 (W) × 118.9 (H) × 1.85 (T) |
mm |
| Aspect Ratio |
9:16 (Portrait) |
- |
| Display Mode |
SFT (IPS), Normally Black, Transmissive |
- |
| Brightness (Typ.) |
600 |
cd/m² |
| Contrast Ratio (Typ.) |
800:1 (Transmission) |
- |
| Viewing Angle (Typ.) (CR≥10) |
88° (U), 88° (D), 88° (L), 88° (R) |
Degree |
| Color Depth |
16.7M (8-bit), 70% NTSC (CIE1931) |
- |
| Response Time (Typ.) |
30 (Tr+Td) |
ms |
| Refresh Rate |
60 |
Hz |
| Backlight |
WLED, 6S2P, 20,000 hours Lifetime, without Driver |
- |
| Surface Treatment |
Hard Coating (Clear) |
- |
| Touch Panel |
None |
- |
| Signal Interface |
MIPI (4 data lanes), 34-pin Connector |
- |
| Driver IC |
ILI9881C (COG Built-in) |
- |
| Supply Voltage |
VDD=1.8V, VDDIO=2.8V, LED=19.2V (Typ.) |
V |
| Power Consumption |
0.77 (Typ.), 1.23 (Max.) |
W |
| Weight (Typ.) |
27 |
g |
| Operating Temperature |
-20 ~ +70 |
°C |
| Storage Temperature |
-30 ~ +80 |
°C |
| RoHS Compliance |
Yes |
- |
The TM050JDHG33-01 is optimized for
portable, handheld, and high-brightness industrial devices requiring wide viewing angles and reliable performance.
