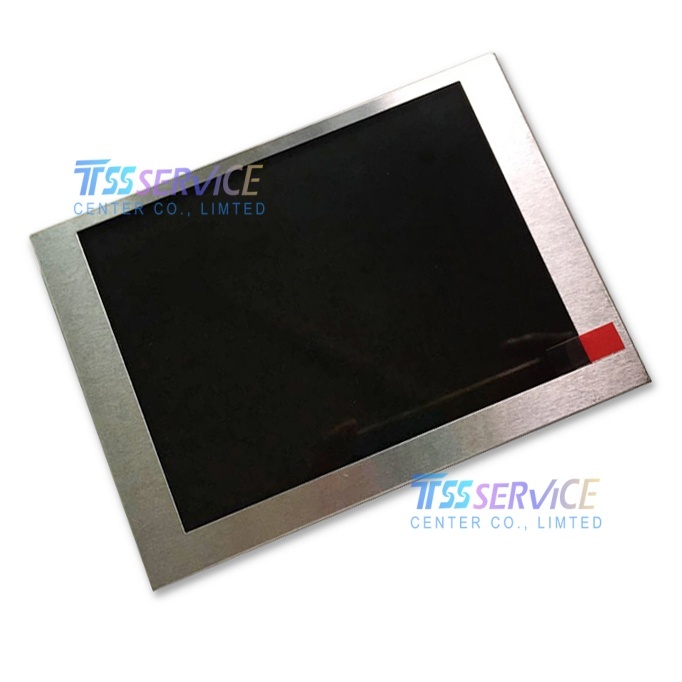

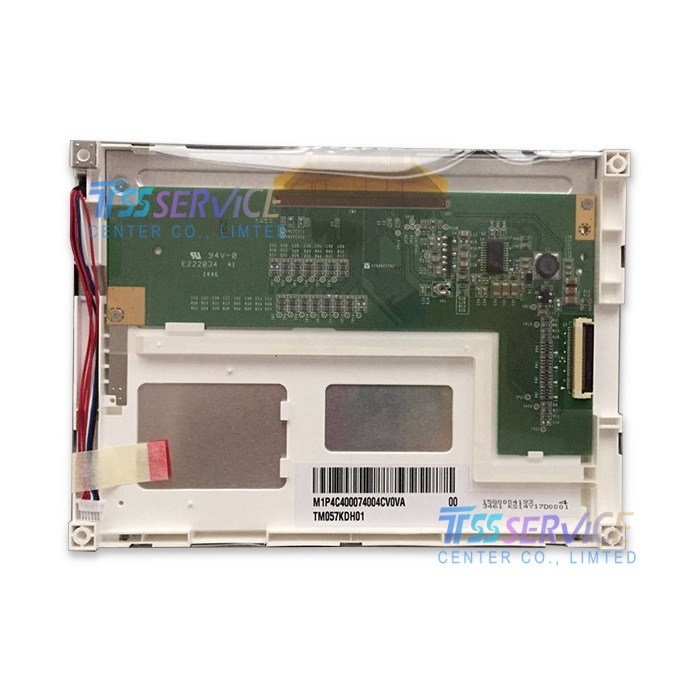

The TM057KDH01-41 is a 5.7-inch a-Si TFT-LCD module manufactured by TIANMA Microelectronics . This model is specifically engineered for industrial applications that require reliable performance and stable operation in standard environments . It features a QVGA resolution of 320×240 pixels with an RGB vertical stripe pixel arrangement .
| Brand |
TIANMA |
| Model P/N |
TM057KDH01-41 |
| Diagonal Size |
5.7" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
320(RGB)×240, QVGA, 70 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.2(W)×86.4(H) mm |
| Bezel Opening |
118.2(W)×89.4(H) mm |
| Outline Size |
144(W)×104.6(H)×12.8(D) mm |
| Surface |
Antiglare, Hard coating (3H) |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) (TM) |
| Viewing Angle |
70/70/70/60 (Typ.)(CR≥10) |
| Display Mode |
TN, Normally White, Transmissive |
| Best View on |
12 o'clock |
| Response Time |
20 (Typ.)(Tr+Td) ms |
| Display Colors |
262K, 50% NTSC |
| Lamp Type |
5S3P WLED, 50K hours, Without Driver |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Panel Weight |
160g (Typ.) |
| Signal Interface |
Parallel RGB (1 ch, 6-bit), 33 pins Connector |
| Input Voltage |
3.3V (Typ.) |
| Operating Temp. |
-20 ~ 70 °C |
| Storage Temp. |
-30 ~ 80 °C |
Application Scenarios
The TM057KDH01-41 is engineered for industrial and commercial applications that require reliable performance:
-
Industrial Automation: Human-Machine Interface (HMI) panels, industrial control systems, and factory automation equipment
-
Commercial Equipment: Point of Sale (POS) terminals, office automation devices
-
Consumer Applications: Portable DVD players, digital photo frames, and video doorbells
-
Specialized Instrumentation: Test and measurement equipment, medical devices (non-life-supporting) .
