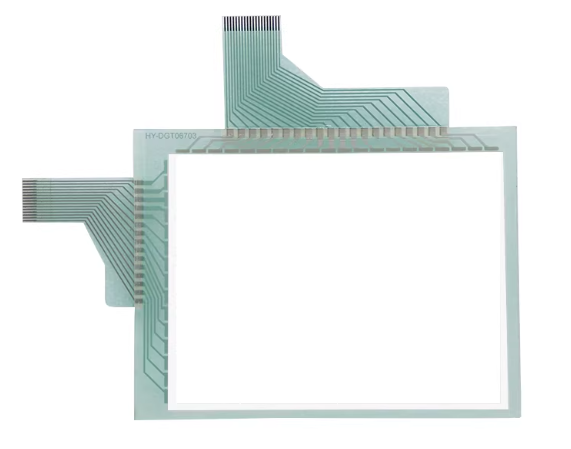

New Touch Screen TP1050-QBBD
1. Display Specifications
Parameter Specification Notes
Display Size 5.7 inches Diagonal measurement
Display Type STN Monochrome LCD STN (Super Twisted Nematic)
Display Color Black and white Monochrome display
Backlight Type LED Long-life LED backlight
Backlight Lifetime 50,000 hours Typical lifespan
2. Memory & Storage
Parameter Specification Notes
Memory 3 MB For user application storage
3. Communication Interfaces
Interface Type Notes
Serial Ports RS-232, RS-422/RS-485 Multiple serial communication options
USB USB interface For program download and data transfer
4. Electrical Specifications
Parameter Specification Notes
Power Supply DC 24V Standard industrial voltage
5. Software & Programming
Parameter Specification Notes
Programming Software TP-Designer Original Hechuan programming software
Alternative Software HCT Designer Newer version for TP series compatibility
6. Key Features & Benefits
Feature Benefit
5.7" Monochrome Display Clear black-and-white visualization for text and graphics
LED Backlight (50,000 hrs) Long service life with consistent brightness
3 MB Memory Adequate storage for applications
Multiple Serial Ports Flexible connectivity to various PLCs and controllers
USB Interface Easy program download and data transfer
DC 24V Power Standard industrial voltage for easy integration
